Acerca del producto

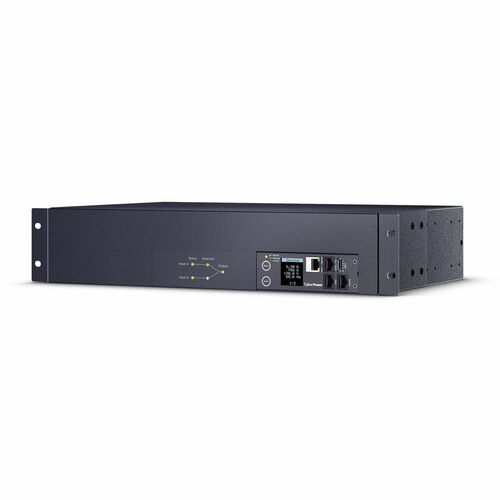

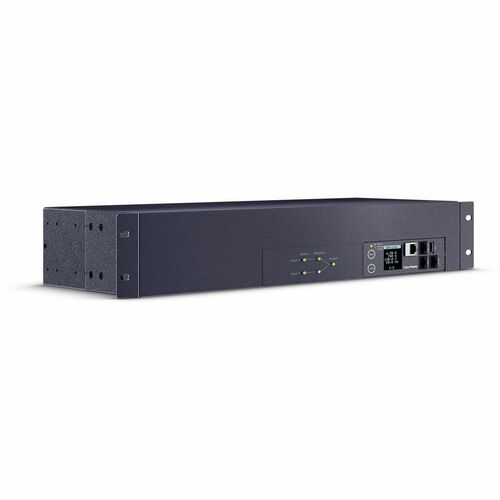

Ensure continued operation of critical devices with the CyberPower PDU44003 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

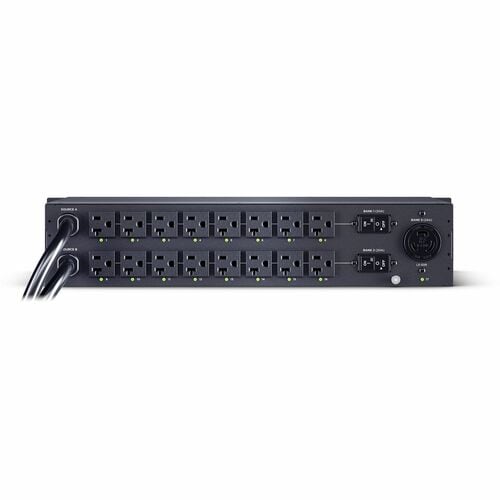

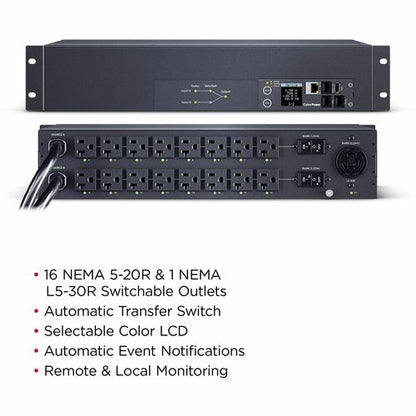

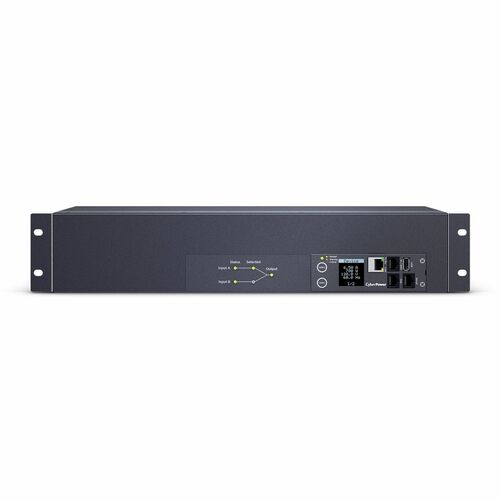

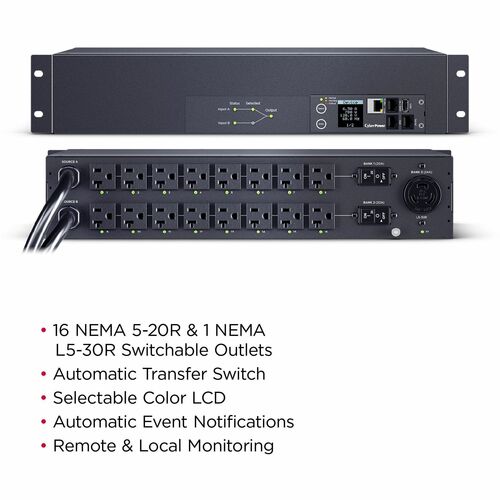

The PDU44003 supports inputs between 100-120V and includes (16) NEMA 5-20R and (1) L5-30R outlets. Dual NEMA L5-30P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44003 is protected by a three-year limited warranty.
- A device fitted with multiple outputs for the distribution of electric power
- With a built-in digital current meter avoid potential overloads via switched PDUs
Especificaciones técnicas
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management | Protocols:
|
| Remote Outlet Switching | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 131°F (55°C) |
| Miscellaneous | |
| Application/Usage | Network Device |
| Data Center | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC |
| 120 V AC | |
| Input Current | 30 A |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Frequency | 60 Hz |
| Output Voltage Range | 100 V AC - 120 V AC |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU44003 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU44003 |
| Product Name | Switched ATS PDU PDU44003 17-Outlets PDU |
| Product Series | Switched ATS PDU |
| Brand Name | CyberPower |
| Physical Characteristics | |
| Weight (Approximate) | 17.59 lb (7980 g) |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Cord Length | 10 ft (3.05 m) |

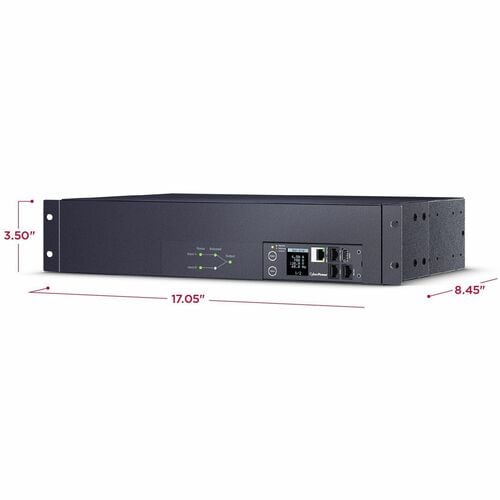

| Height | 3.50" (88.90 mm) |
| Width | 17.05" (433.10 mm) |
| Depth | 8.45" (214.60 mm) |
| Mounting Orientation | Horizontal |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Features | LED Status Indicator |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L5-30P |
| Phase | Single Phase |
| Receptacle Type | NEMA L5-30R |
| NEMA 5-20R | |
| PDU Type | Switched |
| Locking Receptacles | Cord Retention Tray |
| Receptacle Detail | 16 x NEMA 5-20R |
| 1 x NEMA L5-30R | |
| Plug/Connector Detail | 2 x NEMA L5-30P |
