Acerca del producto
Streamline capacity planning and power management with the CyberPower PDU83105 switched metered-by-outlet 3-Phase PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling, and more.
The PDU83105 supports inputs between 200-240V and includes 30 IEC-320 outlets. Other features include ultra-low power consumption, multi-color outlet LEDs, an interactive digital display with selectable background color, high operating temperature range, built-in web interface, and power event notifications. The CyberPower PDU83105 is protected by a three-year limited warranty.
- Monitoring Level: Metered-by-Outlet
- Phase: 3-Phase
- Notifications: Email, SMS Text, and SNMP Trap
- Amps: 30A (Derated to 24A)
- Volts: 200-240V
- Frequency: 50/60Hz

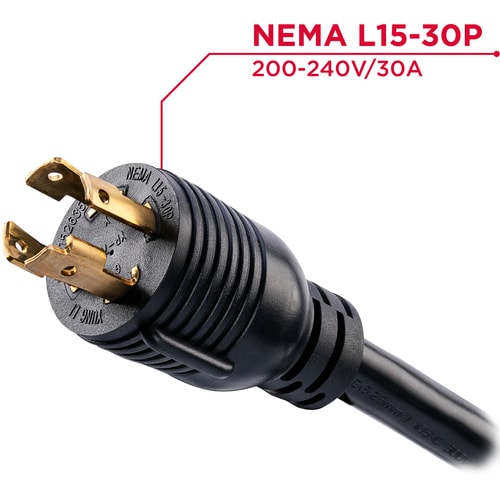

- Input plug type: NEMA L15-30P
- Outlets: (24) IEC-320 C13 + (6) IEC-320 C19
- Size: 0U Rackmount
- Cord Length (ft): 10
Especificaciones técnicas
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Current | 30 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Miscellaneous | |
| Additional Information |
|
| Certifications & Standards |
|
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L15-30P |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Switched with Metered-by-Outlet |
| Receptacle Detail | 24 x IEC 60320 C13 |
| 6 x IEC 60320 C19 | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDU83105 |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PDU83105 |
| Product Name | PDU83105 30-Outlets PDU |
| Product Series | Switched Metered-by-Outlet PDU |
| Brand Name | CyberPower |
| Product Condition | New |
| Physical Characteristics | |
| Weight (Approximate) | 16.50 lb (7484.27 g) |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Height | 70.50" (1790.70 mm) |
| Width | 2.20" (55.88 mm) |
| Depth | 2.20" (55.88 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
