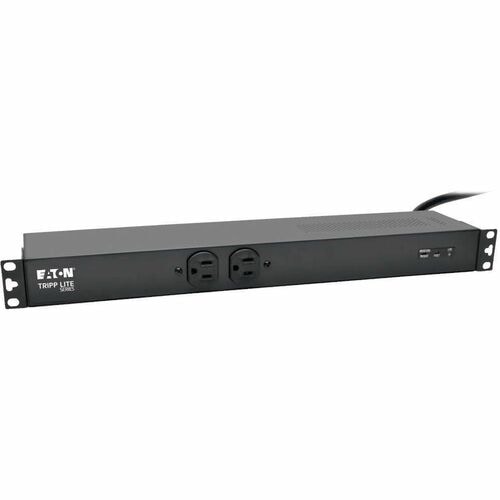

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

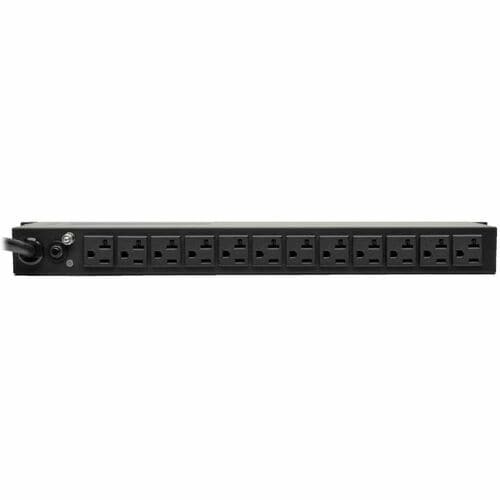

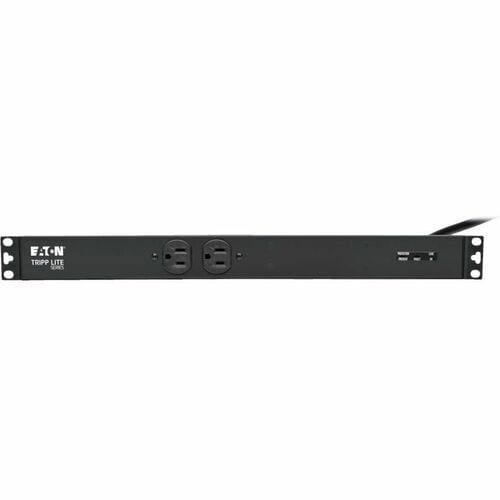

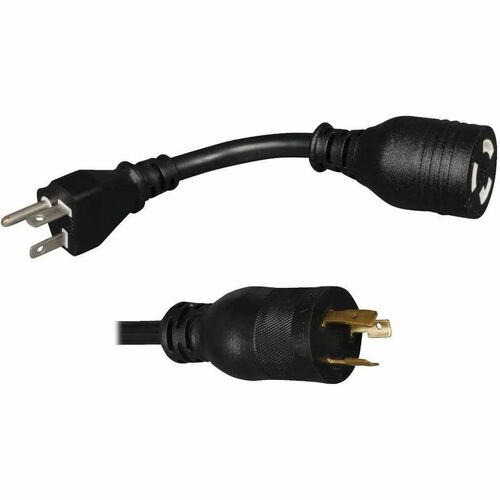

This basic PDU is an ideal no-frills unit for telecom, security, audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments, the PDUH20-ISO features 12 NEMA 5-20R outlets in the rear and two 5-15R outlets in front. A 15-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
3840 Joules Fight Back Against Unexpected Power Surges
Protecting your valuable electronics is ISOBAR® network-grade AC surge and noise suppression. A 3840-joule surge protection rating defends your sensitive electronic components against even the strongest power surges, spikes and line noise. The PDUH20-ISO covers full normal (H-N) and common (N-G/H-G) protection modes. A green LED confirms your connected equipment is protected.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads. A red LED signals a suppressor or wiring fault.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.
Especificaciones técnicas
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 127 V AC |
| 100 V AC | |
| 120 V AC | |
| Input Current | 20 A |
| Power Rating (Watt) | 2.03 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUH20-ISO |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUH20-ISO |
| Product Name | PDUH20-ISO 14-Outlets PDU |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 4.60 lb (2086.52 g) |
| Mount Type | Wall-mountable |
| Rack-mountable | |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 4.50" (114.30 mm) |
| Mounting Orientation | Horizontal/Vertical |
| Technical Information | |
| Protection Type | Overload Protection |
| Accidental Power Shutdown | |
| Circuit Protection | |
| Noise | |
| Spike Protection | |
| Surge Protection | |
| Plug/Connector Type | NEMA L5-20P |
| NEMA 5-20P | |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| NEMA 5-20R | |
| PDU Type | Basic |
| Receptacle Detail | 12 x NEMA 5-20R |
| 2 x NEMA 5-15R |
