Acerca del producto
Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Metered single phase 16A 200/220/230/240V PDU
- 1U horizontal rackmount; digital current meter
- C20 input with IEC-309 Blue 16A input; 2.5m line cord
- 10 total outlets (8 C13, 2 C19)
Especificaciones técnicas
| Miscellaneous | |

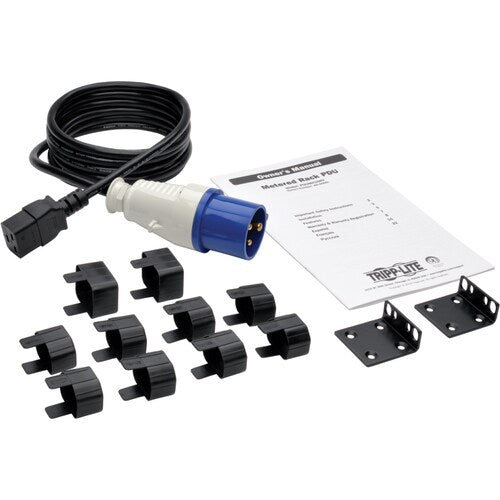

| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Plug/Connector Type | IEC 60309 16A Blue (2P+E) |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 8 x IEC 60320 C13 |
| 2 x IEC 60320 C19 | |
| Physical Characteristics | |
| Weight (Approximate) | 6.80 lb (3084.43 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U/2U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 6.50" (165.10 mm) |
| Mounting Orientation | Horizontal |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMH16HV |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMH16HV |
| Product Name | Metered PDUMH16HV 10-Outlets PDU |
| Product Line | Metered |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 200 V AC |
| 220 V AC | |
| 240 V AC | |
| 230 V AC | |
| Input Current | 16 A |
| Input Voltage Range | 200 V AC - 240 V AC |
| Power Rating (Watt) | 3.84 kW |
