Acerca del producto
PDUMH20HV Metered, 1U rack PDU supports 20A maximum capacity at 208/240 & 230V (agency de-rated to 16 amps). Includes C20 inlet and detachable input cable with both C20 and L6-20P input plug options. 10 total output receptacles (8 C13 and 2 C19). Visual current meter tracks the output current of all outlets combined. Supports 1U rackmount installation in 19 inch 2 or 4 post racks. Included cord retention bracket keeps vital network equipment plugged in and continuously powered.
- Metered single phase 16/20A 200-240V PDU
- 1U horizontal rackmount; Digital current meter

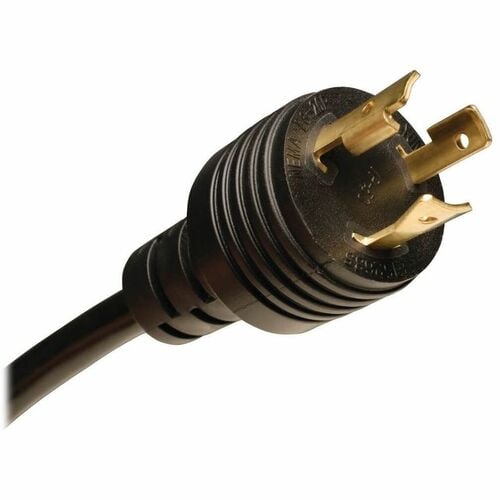

- C20 input with L6-20P plug adapter; 12 ft. / 3.7m line cord
- 10 total outlets (8 C13, 2 C19)
Especificaciones técnicas
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 230 V AC | |
| 208 V AC | |
| Input Voltage Range | 200 V AC - 240 V AC |
| Physical Characteristics | |
| Weight (Approximate) | 6.80 lb (3084.43 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 6.50" (165.10 mm) |
| Mounting Orientation | Horizontal |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L6-20P |
| IEC 60320 C20 | |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 8 x IEC 60320 C13 |
| 2 x IEC 60320 C19 | |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMH20HV |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMH20HV |
| Product Name | Metered PDUMH20HV 10-Outlets PDU |
| Product Series | Metered |
| Brand Name | Tripp Lite by Eaton |
