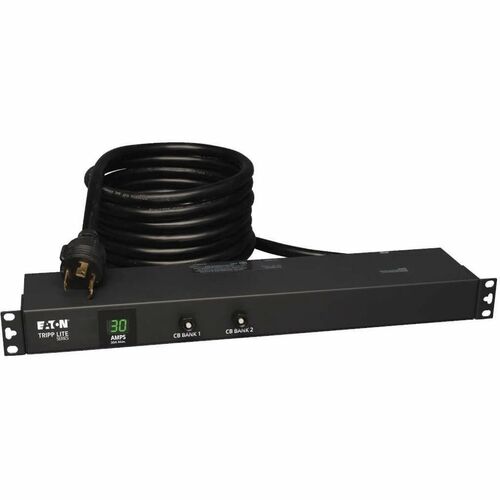

Tripp Lite's PDUMH30 AC power distribution unit offers a digital current monitor and provides 30 amps of 120 volt capacity in a versatile multi-mount cabinet (agency de-rated to 24A continuous). Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potential for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual input current monitoring data for the entire PDU. Attractive rackmount housing with 12 rear-facing outlets measures only 4.5 inches in depth. Output is arranged in two separately breakered 20A output loading banks. Unfiltered electrical pass-through without a power switch makes the PDUMH30 ideal for distributing UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear-facing NEMA 5-15/20R outlets, 15-ft. AC power cord with L5-30P input plug. TVSS grounding lug and rugged all-metal rackmount case design.
- Metered single phase 30A 120V 1U horizontal rackmount PDU
- Two-digit current meter reports total PDU input current in amps
- Attached 15 ft. / 4.5m cord with NEMA L5-30P input plug
- 12 NEMA 5-15/20R outlets
- Reversible housing, 6.5 in. / 16.5cm depth
Especificaciones técnicas
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 12 x NEMA 5-15/20R |
| Physical Characteristics | |
| Weight (Approximate) | 7 lb (3175.15 g) |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 6.50" (165.10 mm) |
| Mounting Orientation | Horizontal/Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMH30 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMH30 |
| Product Name | Metered PDUMH30 12-Outlets PDU |
| Product Series | Metered |
| Brand Name | Tripp Lite by Eaton |
