Acerca del producto
PDUMNH32HV Monitored 32A 2U horizontal rackmount PDU supports 7.4kW maximum capacity at 230V. Includes attached Blue 230V IEC-309 32A (2P+E) input plug and 16 230V outlets (12 C13, 4 C19) arranged in two separately breakered 8 outlet banks. Visual and remote current monitoring tracks the current for each 8 outlet bank separately, plus offers total power consumption for all 16 outlets combined. Supports 2U installation in 19 inch rackmount applications. Included cord retention brackets keep vital network equipment plugged in and continuously powered.
- Monitored 32A 230V PDU, 2U horizontal rackmount
- Reports voltage, frequency & load level via ethernet interface
- Visual current meter, Reversible housing

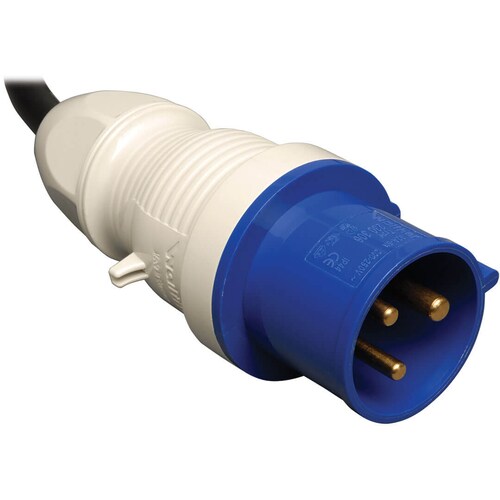

- Blue 230V IEC-309 32A (2P+E) input plug
- 16 outlets (12 C13, 4 C19) with included cord retention brackets
- Temperature, humidity and contact-closure monitoring options
Especificaciones técnicas
| Management | |
| Management | Protocols:
|
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Power Rating (Watt) | 7.40 kW |
| Technical Information | |
| Protection Type | Overload Protection |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 4 x IEC 60320 C19 |
| 12 x IEC 60320 C13 | |
| Miscellaneous | |
| Additional Information | Plug Type: IEC-309 32A (2P+E) |
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 13.70 lb (6214.22 g) |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 12.50" (317.50 mm) |
| Mounting Orientation | Horizontal |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMNH32HV |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMNH32HV |
| Product Name | Metered PDUMNH32HV 16-Outlets 7.4kW PDU |
| Product Series | Metered |
| Brand Name | Tripp Lite by Eaton |
