Acerca del producto

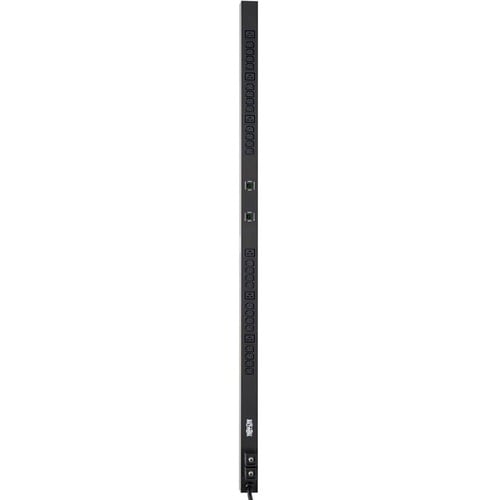

PDUMV30HV 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 208/240V. Includes 10 ft attached line cord with L6-30P input plug. 24 C13 and 6 C19 outlets support up to 30 directly connected pieces of networking equipment. Outlets are arranged in two separately metered and breakered 15A load banks (each with 3 C19 and 12 C13 outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power consumption for each of the two built-in loading banks. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.
- Metered single phase 30A 208/240V, 0U 63.75in / 162cm vertical rackmount PDU
- Pair of digital meters report output current in amps for each load bank
- Attached 10ft / 3m cord with NEMA L6-30P input plug
- 30 outlets (6 C19, 24 C13) in two separately breakered load banks
Especificaciones técnicas
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 208 V AC | |
| Input Voltage Range | 208 V AC - 240 V AC |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUMV30HV |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUMV30HV |
| Product Name | PDUMV30HV PDU Metered 208V - 240V 30A 30 Outlet |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 8 lb (3628.74 g) |
| Mount Type | Wall-mountable |
| Rack-mountable | |
| Height | 63.75" (1619.25 mm) |
| Width | 2.25" (57.15 mm) |
| Depth | 3.75" (95.25 mm) |
| Mounting Orientation | Vertical |
| Technical Information | |
| Protection Type | Short Circuit Protection |
| Overload Protection | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Receptacle Detail | 6 x IEC 60320 C19 |
| 24 x IEC 60320 C13 |
