Acerca del producto
Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

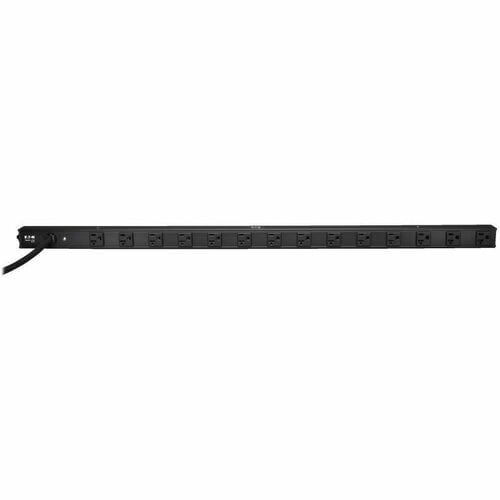

- 20A 120V Basic Power Distribution Unit
- 0U Vertical Rackmount format, 36 in. / .9m height
- 14 NEMA 5-15/20R outlets

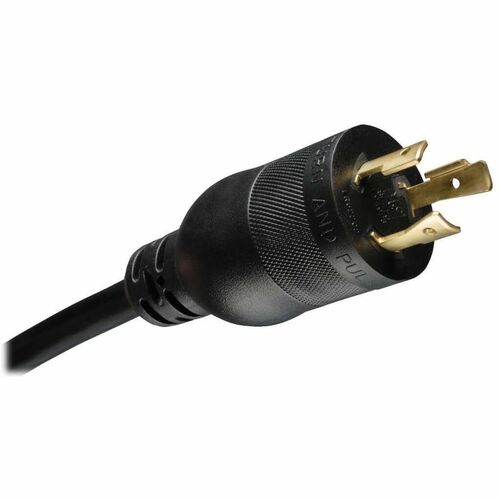

- NEMA L5-20P input, 5-20P plug adapter

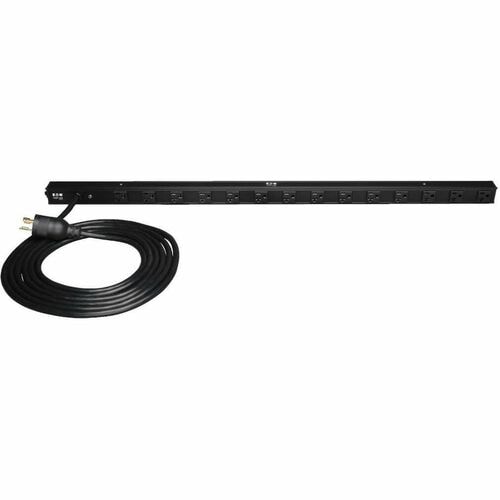

- 15 ft. / 4.6m attached line cord

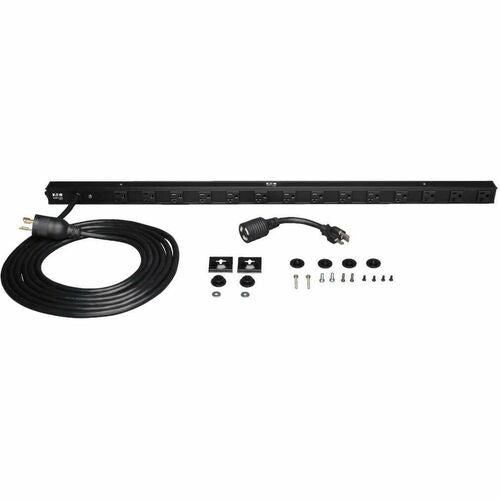

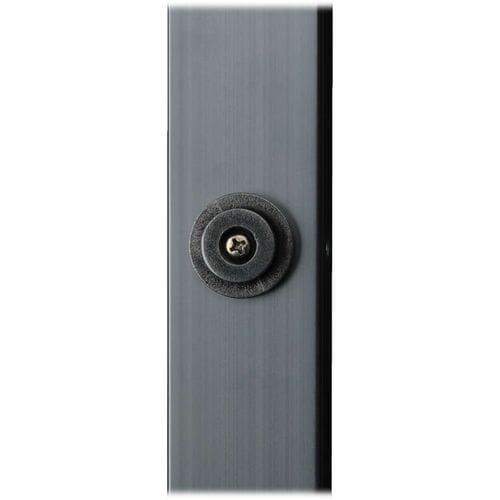

- Toolless mounting buttons and bolt-down brackets included
Especificaciones técnicas
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 2.40 kVA |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |

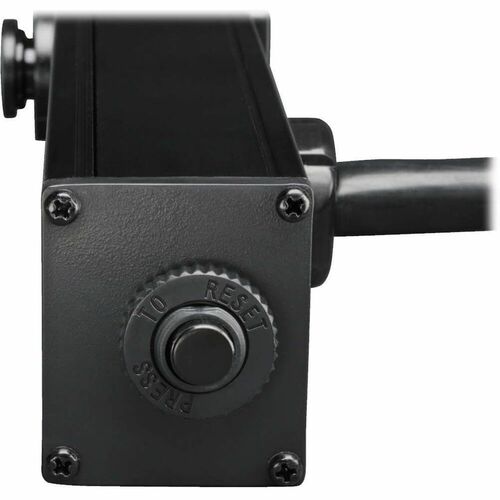

| Protection Type | Overload Protection |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-15/20R |
| PDU Type | Basic |
| Receptacle Detail | 14 x NEMA 5-15/20R |
| Physical Characteristics | |
| Weight (Approximate) | 3.30 lb (1496.85 g) |
| Mount Type | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 36" (914.40 mm) |
| Depth | 1.25" (31.75 mm) |
| Mounting Orientation | Vertical |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | PDUV20 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PDUV20 |
| Product Name | PDUV20 PDU Basic 120V 20A 14-Outlet |
| Brand Name | Tripp Lite by Eaton |
