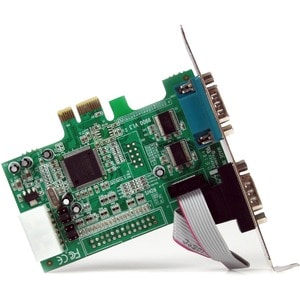

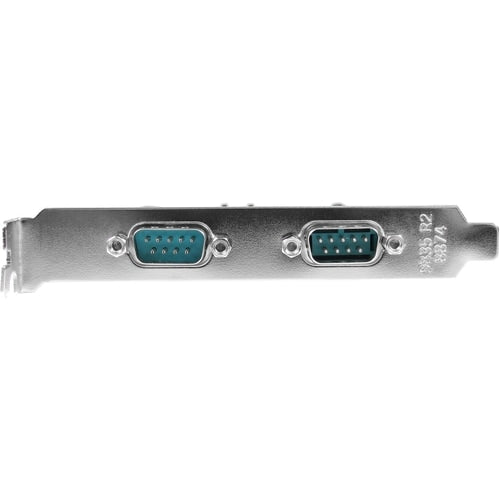

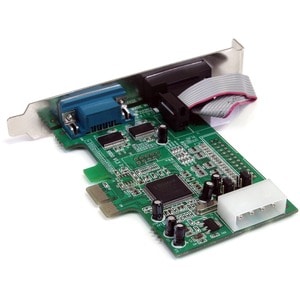

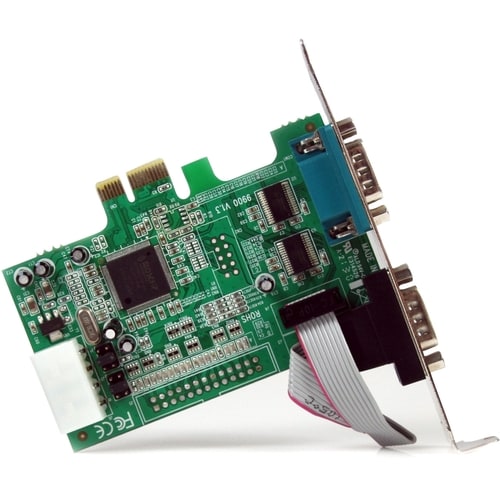

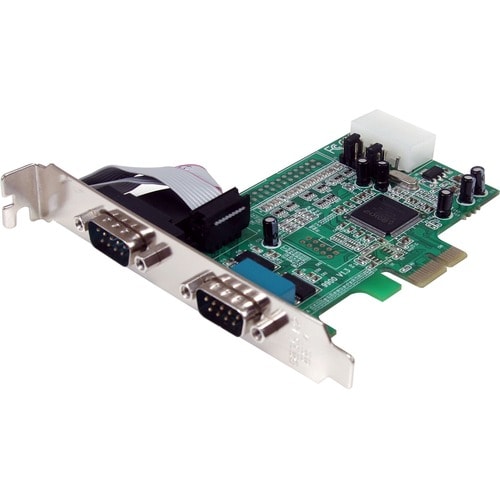

The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards.
The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows® and Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above.
Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.
This product is a replacement for our PEX2S552 card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- Two high speed RS232 serial ports with support for data transfer rates up to 460.8 Kbps
- Compliant with PCI Express base specifications revision 1.0a
- Includes half-height/low profile mounting bracket
- Selectable power output on pin 9 for the serial port
- 128-byte deep FIFO per transmitter and receiver
- Native single-Chip, single lane PCI Express
- Automated out-of-band flow control using CTS/RTS and DSR/DTR
- Automated in-band software flow control using programmable Xon/Xoff in both directions
Especificaciones técnicas
| Interfaces/Ports | |
| Number of Serial Ports (External) | 2 |
| Miscellaneous | |
| Additional Information |
OS Compatibility:
|
| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 2.20 oz (62.37 g) |
| Form Factor | Plug-in Card |
| Length | 4.10" (104.14 mm) |
| Height | 0.80" (20.32 mm) |
| Width | 4.70" (119.38 mm) |
| Card Height | Half-height/Low-profile |
| Technical Information | |
| Host Interface | PCI Express x1 |
| Data Transfer Rate | 460.8kB/s |
| Platform Supported | Linux |
| Mac | |
| PC | |
| UART Type | 16550 |
| General Information | |
| Product Type | Serial Adapter |
| Manufacturer Part Number | PEX2S553 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Model | PEX2S553 |
| Product Name | 2 Port PCIe Serial Adapter Card with 16550 |
| Brand Name | StarTech.com |
