Tarjeta combinada serie paralela PCIe 2S1P de StarTech.com: agrega 1 puerto paralelo y 2 puertos RS

Name: Tarjeta combinada serie paralela PCIe 2S1P de StarTech.com: agrega 1 puerto paralelo y 2 puertos RS
Brand: Startech
SKU: 837510DIS
Price: 67.99 CAD
Availability: InStock

$67.99 CAD

~~$76.99 CAD~~ $67.99 CAD

-11% OFF Agotado

Los gastos de envío se calculan en la pantalla de pago.

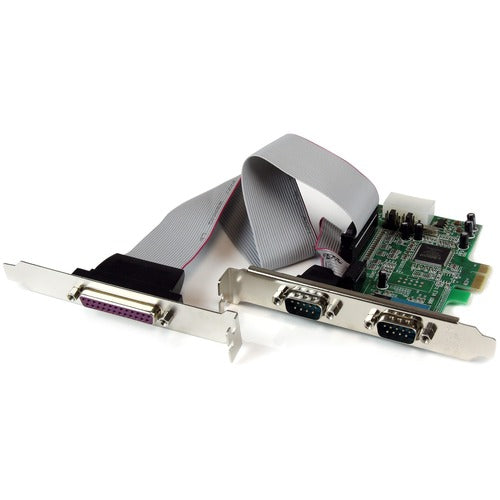

Tarjeta combinada PCIe serie paralela 2S1P de StarTech.com: añada 1 puerto paralelo y 2 puertos serie RS-232 a su ordenador estándar o de perfil bajo a través de una ranura de expansión PCI Express.

VPNPEX2S5531P SKU: 837510DIS UPC: 65030841764

Dos puertos serie RS232 de alta velocidad con velocidad de transferencia de datos de hasta 460,8 Kbps
Un puerto paralelo con velocidad de transferencia de datos de hasta 1,5 Mbps
Compatible con la revisión 1.0a de las especificaciones básicas de PCI Express

Bloque de texto

Cantidad

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Resumen de información del producto

Tarjeta combinada serie paralela PCIe 2S1P de StarTech.com: agrega 1 puerto paralelo y 2 puertos RS

Acerca del producto

Two high speed RS232 serial ports with data transfer rate up to 460.8 Kbps

One parallel port with data transfer rate up to 1.5 Mbps

Compliant with PCI Express base specifications revision 1.0a

128-byte deep FIFO per transmitter and receiver

Configurable in 5V, 12V, and RI (non-powered) modes

Selectable power output on pin 9 for the serial port

Native single-chip, single lane PCI Express

Automated out-of-band flow control using CTS/RTS and DSR/DTR

Automated in-band flow control using programmable Xon/Xoff in both directions

Especificaciones técnicas

Interfaces/Ports
Number of Serial Ports (External)	2
Number of Parallel Ports (External)	1
Miscellaneous
Additional Information	Native single-chip, single lane PCI Express chipset delivers true PCIe performance. Standard and low profile/half-height bracket included to ensure fitment in any system. Easy to install and use with full step-by-step instructions saving time and hassle. Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS Windows Server® 2012, 2008 R2, 2003 Mac OS® 10.4 - 10.6 Linux
Package Contents	2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART Parallel Port (with Ribbon Cable) Low Profile Brackets Driver CD Instruction Manual
Country of Origin	Taiwan
Environmentally Friendly	Yes
TAA Compliant	Yes
Physical Characteristics
Weight (Approximate)	4 oz (113.40 g)
Form Factor	Plug-in Card
Length	4.10" (104.14 mm)
Height	0.80" (20.32 mm)
Width	4.70" (119.38 mm)
Card Height	Dual-profile
Technical Information
Host Interface	PCI Express x1
Data Transfer Rate	1.5MB/s Parallel Port
	460.8kB/s Serial Port
Platform Supported	Linux
	Mac
	PC
UART Type	16550
General Information
Product Type	Serial/Parallel Combo Adapter
Manufacturer Part Number	PEX2S5531P
Manufacturer Website Address	http://www.startech.com
Packaged Quantity	1
Manufacturer	StarTech.com
Product Model	PEX2S5531P
Product Name	2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART
Brand Name	StarTech.com
