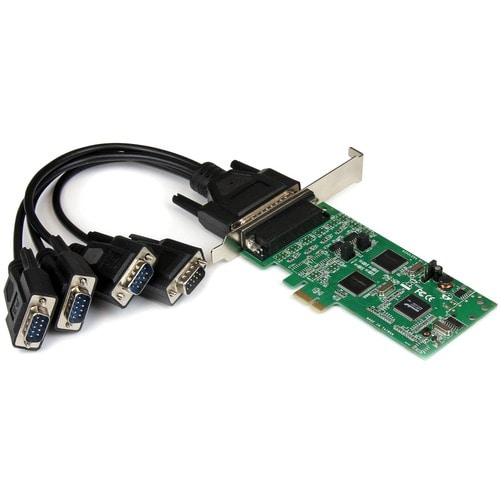

Tarjeta combinada PCI Express PCIe serie de 4 puertos StarTech.com: 2 x RS232, 2 x RS422/RS485

Name: Tarjeta combinada PCI Express PCIe serie de 4 puertos StarTech.com: 2 x RS232, 2 x RS422/RS485
Brand: Startech
SKU: 362365DIS
Price: 198.99 CAD
Availability: InStock

$198.99 CAD

~~$222.99 CAD~~ $198.99 CAD

-10% OFF Agotado

Los gastos de envío se calculan en la pantalla de pago.

StarTech.com Tarjeta PCI Express PCIe Serial Combo de 4 Puertos - 2 x RS232 2 x RS422 / RS485 - Agregue dos puertos seriales RS232 y dos RS422/485 a su PC a través de una ranura de expansión PCI-Express - pcie rs485 - pci express rs485 - pcie rs485 - pci express rs422 - pcie rs422

VPNPEX4S232485 SKU: 362365DIS UPC: 65030849357

Tarjeta combinada serie de 4 puertos (2 x RS232, 2 x RS422/485)
Velocidades de transferencia de datos RS232 de hasta 460 Kbps
Admite modos RS485 de 2 cables y 4 cables

Bloque de texto

Cantidad

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Resumen de información del producto

Tarjeta combinada PCI Express PCIe serie de 4 puertos StarTech.com: 2 x RS232, 2 x RS422/RS485

Acerca del producto

4 port (2 x RS232, 2 x RS422/485) serial combo card

RS232 data transfer rates up to 460 Kbps

Supports 2-Wire / 4-Wire RS485 modes

256-byte deep FIFO per transmitter and receiver

Standard and low-profile bracket included

Compliant with PCI-Express Specification 1.0a

Supports PCI Power Management 1.1

Especificaciones técnicas

Interfaces/Ports
Ports Expandability	4 x DB-9 RS-232/422/485 - Serie, vía cable
Technical Information
Host Interface	PCI Express x1
Platform Supported	PC
Maximum Data Transfer Rate	3.59 Mbit/s
Physical Characteristics
Weight (Approximate)	2.40 oz (68.04 g)
Form Factor	Plug-in Card
Height	2.70" (68.58 mm)
Width	0.60" (15.24 mm)
General Information
Product Type	Multiport Serial Adapter
Manufacturer Part Number	PEX4S232485
Manufacturer Website Address	http://www.startech.com
Packaged Quantity	1 Each
Manufacturer	StarTech.com
Product Name	4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485
Brand Name	StarTech.com
Miscellaneous
Package Contents	4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 1 x Breakout Cable 1 x Low Profile Bracket 1 x Driver CD 1 x Instruction Manual
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Certification	REACH
	RoHS
	WEEE
TAA Compliant	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
