Storage devices

Expected delivery 3 to 7 business days (exceptions applied)

Startech

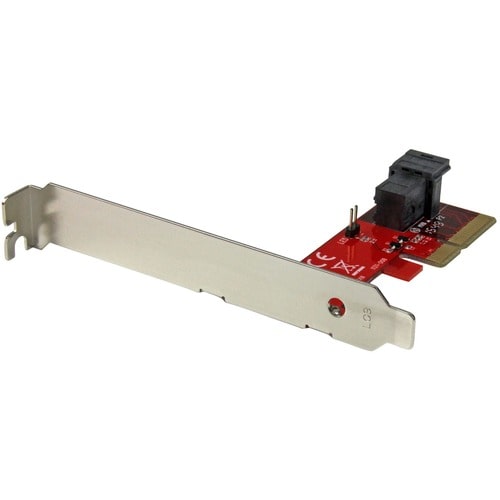

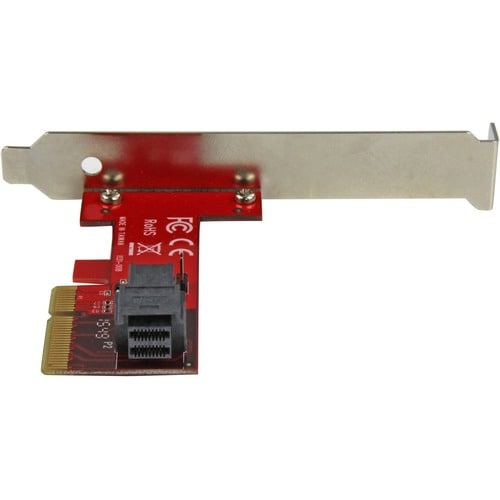

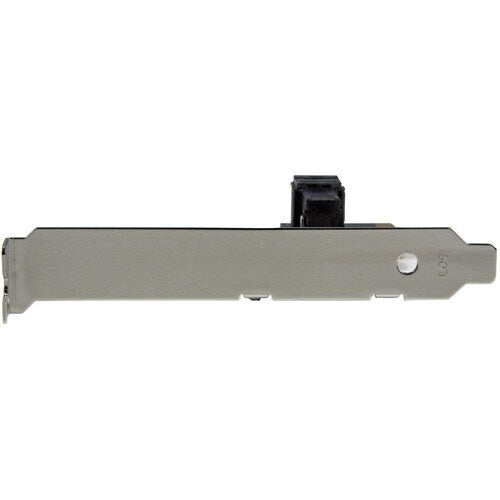

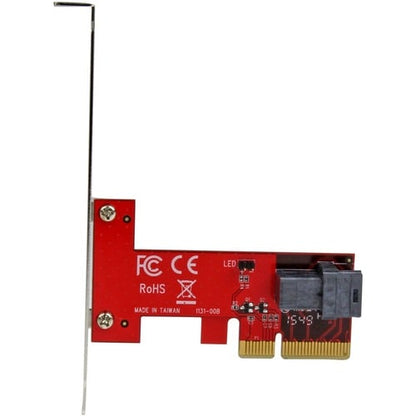

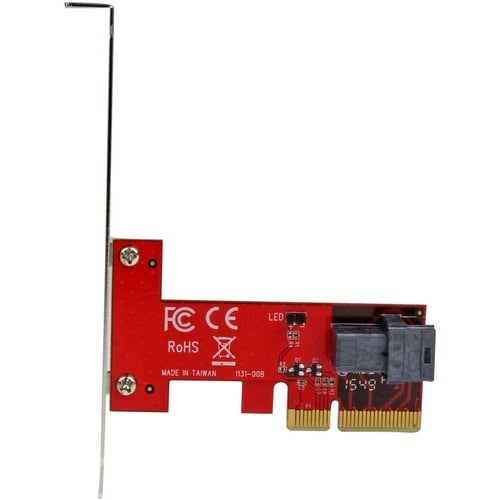

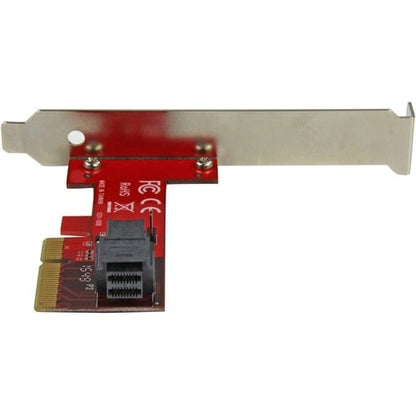

ADAPTADOR PCIE X4 A SFF-8643 PARA SSD PCI EXPRESS DE 2,5 PULGADAS NVME U.2

ADAPTADOR PCIE X4 A SFF-8643 PARA SSD PCI EXPRESS DE 2,5 PULGADAS NVME U.2

Precio habitual $38.72 CAD
Precio habitual $44.53 CAD Precio de oferta $38.72 CAD
-13% OFF Agotado
Los gastos de envío se calculan en la pantalla de pago.
Adaptador x4 PCI Express a SFF-8643 para SSD PCIe NVMe U.2 de StarTech.com - Adaptador PCI Express de 2,5" NVM Express para SSD - Agregue almacenamiento empresarial de alto rendimiento a su PC o servidor - Conecte un SSD PCIe U.2 de 2,5" como el Intel SSD serie 750 a través de una tarjeta de expansión PCI Express de 4 carriles - Adaptador x4 PCIe a SFF-8643 para SSD PCIe NVMe U.2 - Adaptador PCIe de 2,5" NVMe para SSD

VPN: PEX4SFF8643 SKU: RSC961328 UPC: 65030865050

  • Agregue una capacidad SSD PCIe NVMe U.2 de 2,5 pulgadas de clase empresarial a su PC o servidor
  • Adaptador de host PCI Express de 3.0 x 4 carriles
  • Compatible con placas base PCIe 3.0 y PCIe 2.0

Bloque de texto

Descuento por volumen disponible: solicite cotización.

Ver todos los detalles

Recently Viewed

ADAPTADOR PCIE X4 A SFF-8643 PARA SSD PCI EXPRESS DE 2,5 PULGADAS NVME U.2

Resumen de información del producto

ADAPTADOR PCIE X4 A SFF-8643 PARA SSD PCI EXPRESS DE 2,5 PULGADAS NVME U.2

Acerca del producto

Unleash the performance of your desktop PC or server with this enterprise-class drive adapter. By providing compatibility with newer U.2 NVMe SSDs, such as the Intel® SSD 750 series, you can gain faster read/write speeds and higher productivity levels for data-intensive applications.

Upgrade your system cost-effectively

This drive adapter provides an ideal way to upgrade legacy motherboard platforms and your existing computer system, by adding compatibility for newer U.2 NVMe SSDs, which are designed to meet the high-performance needs of today's data centers and enterprise-level applications.

The adapter card enables IT professionals and system integrators to upgrade their computing infrastructure by installing the adapter card into the PCIe slots on desktop PCs or servers. Upgrading, rather than replacing computing infrastructure, provides a cost-effective way to enhance your system's performance.

U.2 NVMe SSDs also offer superior energy efficiency, providing an advantage to companies looking to reduce energy costs.

Gain higher productivity through faster read/write speeds

Companies and organizations with intensive file workloads can achieve greater productivity by upgrading their data center or enterprise-level applications with U.2 NVMe SSD capability. U.2 SSDs are up to four times faster than SATA SSDs, providing extremely fast read/write speeds, high-speed file access and transfers, and rapid boot times. U.2 NVMe SSDs are also more reliable than SATA hard drives, so less time is spent waiting for computers to boot, or applications and files to load.

Through U.2 NVMe SSD capability, the drive adapter brings enhanced productivity for numerous data-heavy applications.Office professionals, from architects and engineers to healthcare professionals, can quickly access and edit large documents, spreadsheets, or 3D models and renderings.Creative professionals, including content creators and graphic designers, can work more productively on photo editing, video production and editing of large image or audio files.

The drive adapter also saves time for gaming enthusiasts, with much faster launch times and level changes.

Installs easily into your PC's 4-lane PCIe expansion slot

The U.2 SSD adapter lets you add a PCIe NVMe 2.5 in. SSD to a computer system that doesn't natively support U.2 PCIe NVMe. The adapter simply connects to your computer's 4-lane or greater PCI Express slot and enables you to connect a U.2 SSD to your PC through the provided SFF-8643 interface, using an SFF-8643 to U.2 cable. The PCIe 2.5 in. NVMe SSD adapter is compatible with PCIe 3.0 and PCIe 2.0 motherboards.

The drive adapter comes with a full-profile bracket (preinstalled), and also includes a low-profile bracket that makes it easy to install the card in a small form-factor computer.

The PEX4SFF8643 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

  • Add an enterprise-class PCIe NVMe 2.5 in. U.2 SSD capability to your PC or server
  • PCI Express 3.0x4 lane host adapter
  • Compatible with PCIe 3.0 and PCIe 2.0 motherboards
  • Comes with full-profile bracket (installed) and low-profile bracket

Especificaciones técnicas

Miscellaneous
Package Contents
  • x4 PCI Express to SFF-8643 Adapter for PCIe NVMe U.2 SSD
  • 1 x Low-Profile Bracket
  • 1 x Full-Profile Bracket (Installed)
  • 1 x Quick-Start Guide
CompatibilityHardware
Bus Type PCI Express
Compatible Drive Types (Type and Rate) PCIe U.2 SSD
Fan(s) No
Interface PCI Express
Number of Drives 1
Connector(s)
Drive Connectors 1 - SFF-8643 (36 pin; x4 PCIe Gen 3)
Host Connectors 1 - PCI Express x4
Indicators
LED Indicators 1 - LED Header for drive activity
Environmental
Humidity 15% ~ 90%
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Certifications & Standards
  • CE
  • FCC
Country of OriginTaiwan
Environmentally FriendlyYes
TAA CompliantYes
Physical Characteristics
Weight (Approximate)1.30 oz (36.85 g)
Length3.20" (81.28 mm)
Height1.70" (43.18 mm)
Width0.70" (17.78 mm)
Product ColorRed
Color FamilyRed
General Information
Product TypeU.2 to PCI Express Adapter
Manufacturer Part NumberPEX4SFF8643
Manufacturer Website Addresshttp://www.startech.com
Packaged Quantity1 Each
ManufacturerStarTech.com
Product Namex4 PCI Express to SFF-8643 Adapter for PCIe NVMe U.2 SSD
Brand NameStarTech.com
