Tarjeta PCIe USB de 2 puertos StarTech.com, 10 Gbps/puerto - Tipo USB 3.2 Gen 2
Tarjeta PCIe USB de 2 puertos StarTech.com, 10 Gbps/puerto - Tipo USB 3.2 Gen 2
- ALTO RENDIMIENTO: Tarjeta PCIe USB de 2 puertos con controlador de host ASMedia ASM3142 (PCIe 3.0 x4) tiene dos puertos USB-A SuperSpeed de 10 Gbps (USB 3.1 Gen 2 / USB 3.2 Gen 2x1); Velocidades de hasta 10 Gbps/puerto; Versión mejorada de nuestra popular tarjeta USB PEXUSB312A2
- RENDIMIENTO USB MÁXIMO: la tarjeta complementaria admite múltiples entradas para un ancho de banda máximo cuando se utilizan dispositivos de velocidad mixta; Admite UASP y está optimizado para SSD/HDD, NVMe, unidades USB; Admite dispositivos USB 3.0/2.0
- ALIMENTACIÓN: La tarjeta de expansión USB PCI Express 3.0 con conector de alimentación SATA proporciona alimentación complementaria a los puertos USB (cuando la alimentación de la placa base es insuficiente) y proporciona hasta 4,5 W (5 V a 0,9 A) por puerto USB-A
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles



Recently Viewed
Tarjeta PCIe USB de 2 puertos StarTech.com, 10 Gbps/puerto - Tipo USB 3.2 Gen 2
Resumen de información del producto

Acerca del producto

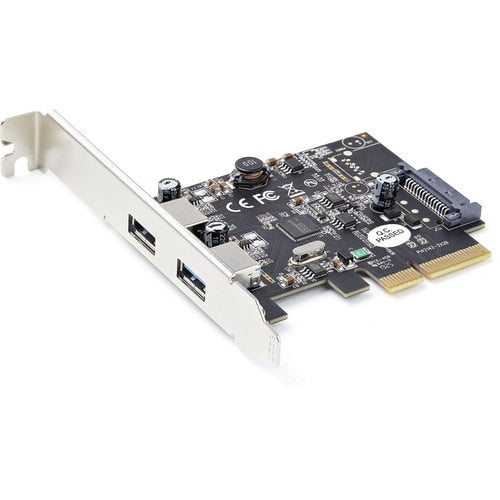

This PCIe USB 3.2 Gen 2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding two SuperSpeed USB-A (10Gbps) ports.
The controller card enables you to connect two USB-A Gen 2 (10 Gbps) devices to your desktop computer. The USB-A ports are ideal for connecting USB devices such as external hard drives and solid state drives or powering and syncing your mobile devices. The USB-A ports provides up to 4.5W (5V/0.9A) of power per USB port, and are backward compatible with USB 3.2 Gen 1 (5 Gbps), and USB 2.0 (480 Mbsp) devices.
Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.2 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.2 Gen 1 and USB 3.2 (5 Gbps).
The USB 3.2 Gen 2 card features an ASMedia ASM3142 host controller that utilizes x2 lanes of the PCIe 3.0 bus, making the card capable of speeds up to 10Gbps on each port, and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller card supports Multiple INs to reduce bandwidth loss when multiple devices are connected, even when connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.
This add-on card includes both full-profile and low-profile installation brackets ensuring you can install it into either a full or low-profile PCIe 3.0 x4 slot (backward compatible w/PCIe 2.0). For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.2/3.0/2.0 devices
PEXUSB312A3 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
More from the Manufacturer
- HIGH PERFORMANCE: 2-Port USB PCIe Card with ASMedia ASM3142 host controller (PCIe 3.0 x4) has two SuperSpeed 10Gbps USB-A ports (USB 3.1 Gen 2 / USB 3.2 Gen 2x1); Speeds up to 10Gbps/port; Upgraded version of our popular USB card PEXUSB312A2
- MAXIMIZED USB PERFORMANCE: Add-on card supports Multiple Ins for max bandwidth when using mixed-speed devices; Supports UASP & optimized for SSDs/HDDs, NVMe, thumb drives; Supports USB 3.0/2.0 devices
- POWER: USB PCI Express 3.0 expansion card w/ SATA power header supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 4.5W (5V @ 0.9A) per USB-A port
- COMPATIBILITY: USB PCIe adapter card installs in full or low-profile PCIe 3.0 x4 slot and up; Bracket included; Backward compatible w/ PCIe 2.0; Supports Win/Linux/macOS w/auto drivers on Win 8 & up
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; This USB-A PCI-e card for desktop is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support
Especificaciones técnicas
Media & Performance | |
UASP Support | Yes |
Technical Information | |
Host Interface | PCI Express x4 |
Interfaces/Ports | |
Total Number of USB Ports | 2 |
Number of SATA Ports | 1 |
Number of USB 3.2 Ports | 2 |
General Information | |
Product Type | USB Adapter |
Manufacturer Part Number | PEXUSB312A3 |
Manufacturer Website Address | http://www.startech.com |
Packaged Quantity | 1 Each |
Manufacturer | StarTech.com |
Product Name | USB Adapter |
Brand Name | StarTech.com |
Physical Characteristics | |
Weight (Approximate) | 2.80 oz (79.38 g) |
Form Factor | Plug-in Card |
Length | 4.30" (109.22 mm) |
Height | 0.70" (17.78 mm) |
Width | 4.70" (119.38 mm) |
Product Color | Black |
Color Family | Black |
Miscellaneous | |
Additional Information | OS Compatibility:
|
Package Contents |
|
Platform Supported | Linux |
Mac | |
PC | |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Software | |
Operating System Supported | Mac OS X 10.13 High Sierra |
Mac OS X 13.0 Ventura | |
Mac OS X 10.15 Catalina | |
Mac OS X 11.0 Big Sur | |
Mac OS X 12.0 Monterey | |
Linux 3.5 | |
Windows Server 2022 | |
Windows Server 2019 | |
Windows Server 2016 | |
Windows Server 2012 R2 | |
Windows 8.1 | |
Windows 8 | |
Windows 7 | |
Windows 11 | |
Windows 10 | |
Mac OS X 10.14 Mojave |
