Acerca del producto

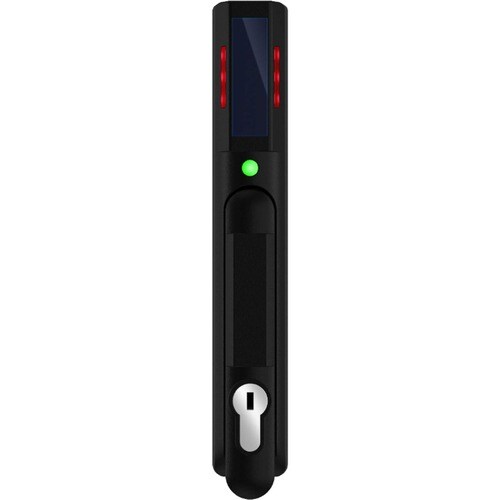

SmartZone™ Security Handle with Dual Frequency (125 kHz and 13.56 MHz) Card Reader and integral humidity sensor. All handles feature the base tumbler (TU020X) pre-installed at the factory.
- Door access and control monitoring Controls access to a rack or cabinet in a data center and provides physical status of a door
- Optional combined card reader and keypad Integrated keypad enables dual authentication
- Cabinet compatibility Seamlessly integrates into Panduit cabinets
- Integrated sensors SmartZone™ G5 Security Handle features an integrated humidity sensor as well as specially designed environmental and door sensors which connect to the SmartZone™ G5 Security Handle
- SmartZone™ Software Suite Integration Captures data that is consolidated by connected SmartZone™ G5 iPDU then utilized by SmartZone™ Software for real-time monitoring management and automated documentation
- Beacon LED Provides the health of the cabinet at a glance. Will flash yellow when for minor alarm or flash red for critical alarm. Also features a locate function to manually flash the beacon to easily locate the cabinet
- Status LED Provides visual indication for authentication, lock state, key usage or handle state
- 200 Users Provide card access for up to 200 users
- Multi-Frequency Card Reader Reads both low frequency (125 kHz) and high frequency (13.56 MHz) cards
Especificaciones técnicas
| Miscellaneous | |
| Compatibility | Card Compatibility
|
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Height | 9.50" (241.30 mm) |
| Width | 1.50" (38.10 mm) |
| Product Color | Black |
| Technical Information | |
| Application/Usage | Indoor |
| Door | |
| Operating Range | 0.79" (20 mm) |
| Number of Users | 200 |
| Identification Method | Proximity |
| Ingress Protection (IP) Rating | IP55 |
| General Information | |
| Product Type | Card Reader Access Device |
| Manufacturer Part Number | ACF05 |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | SmartZone Card Reader Access Device |
| Product Line | SmartZone |
| Brand Name | Panduit |
