Description

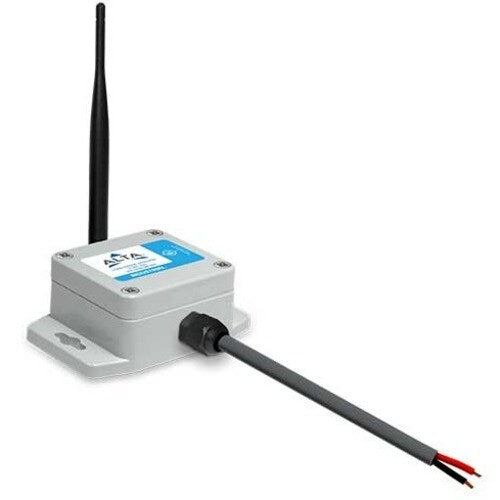

ALTA wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 200 VDC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.
Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is really just a "voltage observer". Cannot be used for AC voltage measurement.
Features
- Interfaces with batteries and devices up to 200 VDC
- Sensor resolution of 0.01 VDC
- Sensor accuracy of +/- 1%
Especificaciones técnicas
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 141.7 g |
| Form Factor | Panel-mountable |
| Height | 1.38" (35.05 mm) |
| Width | 2.32" (58.93 mm) |
| General Information | |
| Product Type | Wireless Current Meter |
| Manufacturer Part Number | MNS2-9-IN-VM-200 |
| Manufacturer Website Address | http://www.monnit.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Monnit Corporation |
| Product Name | ALTA Industrial Wireless Voltage Meter - 0-200 VDC |
| Package Type | Bulk |
| Product Line | ALTA |
| Brand Name | Monnit |
