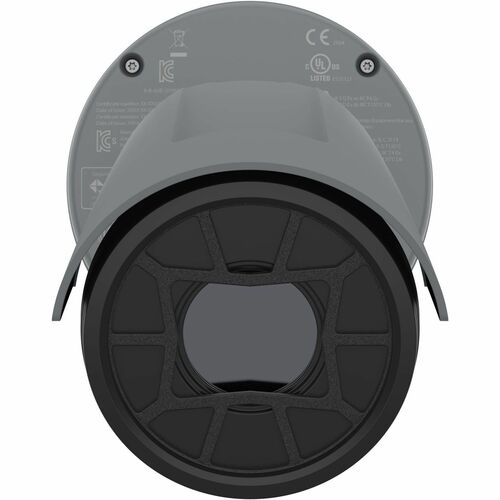

Class/Division 2- and Zone 2-certified thermometric camera
? Designed and certified for Zone and Division 2 hazardous areas, this compact and lightweight explosion-protected camera can remotely monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F). You'll receive a notification if the temperature exceeds or falls below a set threshold. It will also send a notification if the temperature increases or decreases too rapidly. It supports up to 10 configurable polygonal detection areas, and spot temperature reading shows the exact temperature in specific areas. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
- Thermometric for remote temperature measuring
- Configurable temperature monitoring areas
- Spot temperature reading
- Worldwide hazardous area certifications
- Built-in cybersecurity with Axis Edge Vault
Especificaciones técnicas
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Storage | |
| Storage Type | Memory Card |
| Technical Information | |
| HD Recording | Yes |
| Display & Graphics | |
| Color Supported | Color |
| Field of View | Horizontal field of view: 55°, Vertical field of view: 40.7 ° |
| Thermal Image Sensor Type | Uncooled Microbolometer |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 100% |
| Lens | |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Lens Included | Yes |
| Maximum Thermal Focal Length | 0.28" (7 mm) |
| Physical Characteristics | |
| Weight (Approximate) | 3.31 lb (1500 g) |
| Durability | Dust Resistant |
| Gas Resistant | |
| Product Color | Gray |
| Color Family | Gray |
| Power Description | |
| Input Voltage | 28 V DC |
| 10 V DC | |
| Maximum Power Consumption | 12.95 W |
| Power Source Type | PoE |
| DC | |
| General Information | |
| Product Type | Network Camera |
| Manufacturer Part Number | 02535001 |
| Manufacturer Website Address | http://www.axis.com |
| Manufacturer | Axis Communications |
| Product Model | Q1961-XTE |
| Product Name | Q1961-XTE Explosion-Protected Thermal Camera |
| Product Series | Q19 |
| Brand Name | AXIS |
| Video | |
| Video Formats | H.264B (MPEG-4 Part 10/AVC) |
| H.264H (MPEG-4 Part 10/AVC) | |
| H.264M (MPEG-4 Part 10/AVC) | |
| H.265 | |
| H.264 | |
| Zipstream | |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Maximum Video Resolution | 768 x 576 |
| Maximum Frame Rate | 30 fps |
| Miscellaneous | |
| Package Contents |
|
| Features | Alarm Triggering |
| Audio Detection | |
| Ingress Protection | |
| Motion Detection | |
| Thermal Detection | |
| Thermal Imaging | |
| Video Content Analytics | |
| Video Management System | |
| Active Tampering Alarm | |
| Alarm Detection | |
| TAA Compliant | Yes |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| IP67 | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Network & Communication | |
| Protocols | CDP |
| Bonjour | |
| DHCPv4/v6 | |
| DiffServ (QoS) | |
| DNS/DNSv6 | |
| HTTP | |
| HTTP/2 | |
| HTTPS | |
| ICMP | |
| ICMPv4/ICMPv6 | |
| IGMPv1/v2/v3 | |
| IPv4 | |
| IPv6 USGv6 | |
| LLDP | |
| mDNS | |
| MQTT v3.1.1 | |
| NTP | |
| NTS | |
| ONVIF | |
| RTCP | |
| RTP | |
| RTSP | |
| SFTP | |
| SMB/CIFS | |
| SMTP | |
| SNMPv1/v2c/v3 (MIB2) | |
| SRTP | |
| SSH | |
| Syslog | |
| TCP | |
| TLS | |
| UDP | |
| UPnP | |
| ZeroConf | |
| DDNS | |
| Connectivity Technology | Wired |
| Ethernet Technology | Gigabit Ethernet |
| Remote Management | Yes |
