Acerca del producto

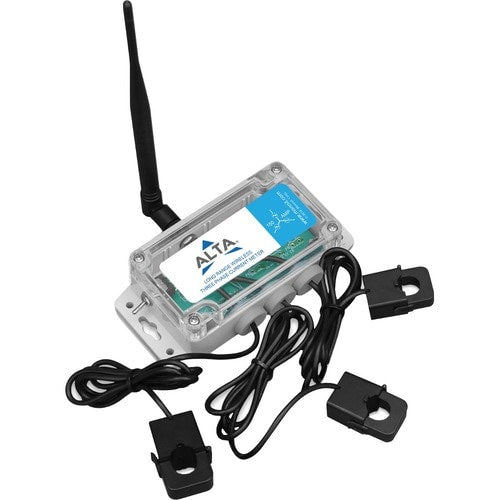

The ALTA Industrial Wireless Three Phase Current Meter measures the RMS current of an alternating current (AC) system using 3 current transducers (CTs) that wrap around the wires of a three phase power system.
- Measures amp hours, max RMS current, min RMS current, average RMS current, and duty cycle for each phase and combined amp hours from all three phases
- 3x current transducers
- Capable of generating watt hour or kilowatt hour readings using iMonnit
- Data logging for accumulated amp hour readings
- Can notify based on amperage/power levels
- Simple and safe installation of amperage/power measurement hardware, no rewiring required
- Wireless range of 1,200+ feet through 12+ walls1
- Frequency-Hopping Spread Spectrum (FHSS)
- Best-in-class interference immunity
- Best-in-class power management for longer battery life2
- Encrypt-RF® Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Data logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through the power cycle): 10-minute heartbeats = ~ 22 days - 2-hour heartbeats = ~ 266 days
- Over-the-air updates (future-proof)
Especificaciones técnicas
| Technical Information | |
| Wireless Technology | Radio Frequency |
| Bluetooth | |
| Wi-Fi | |
| Physical Characteristics | |
| Weight (Approximate) | 59.5 g |
| Form Factor | Enclosure |
| Height | 1.59" (40.50 mm) |
| Width | 1.06" (26.90 mm) |
| Depth | 1.41" (35.90 mm) |
| General Information | |
| Product Type | Current Sensor |
| Manufacturer Part Number | MNS2-9-IN-3P-020 |
| Manufacturer Website Address | http://www.monnit.com |
| Manufacturer | Monnit Corporation |
| Product Name | Wireless 20 Amp Three-Phase Current Meter |
| Product Line | ALTA |
| Brand Name | Monnit |
| Miscellaneous | |
| Application/Usage | Manufacturing Management |
| Electric Current Monitoring | |
| Conveyor System Motor | |
| Circuit Breaker Panel | |
| Amp Hour Meter | |
| Heavy Machinery | |
| Package Contents |
|
