Acerca del producto

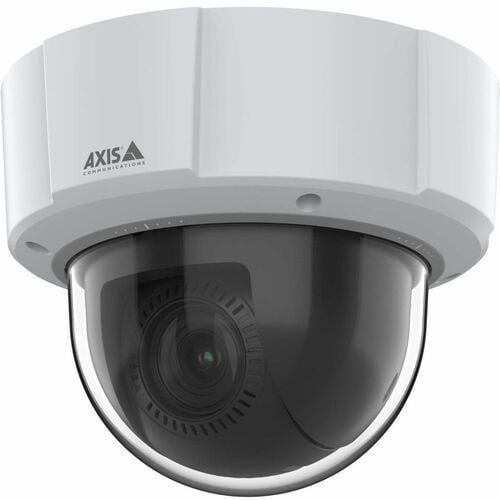

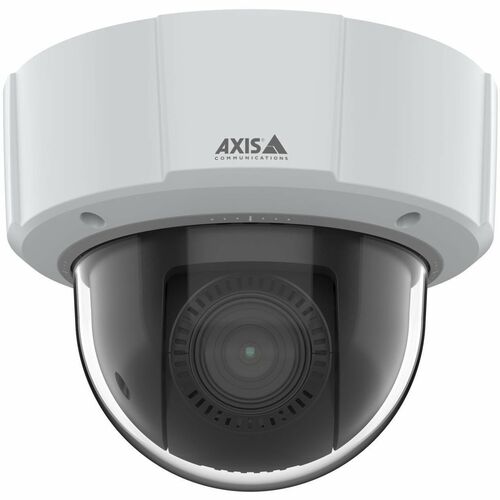

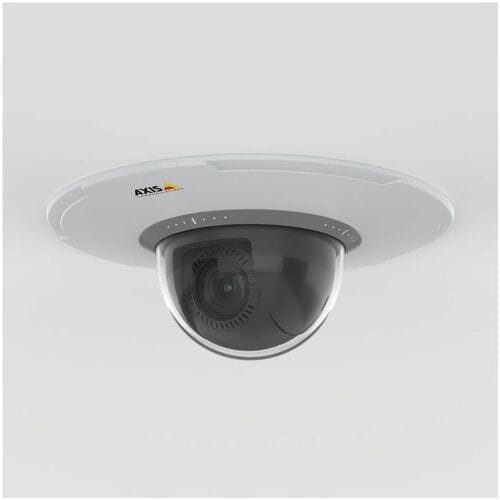

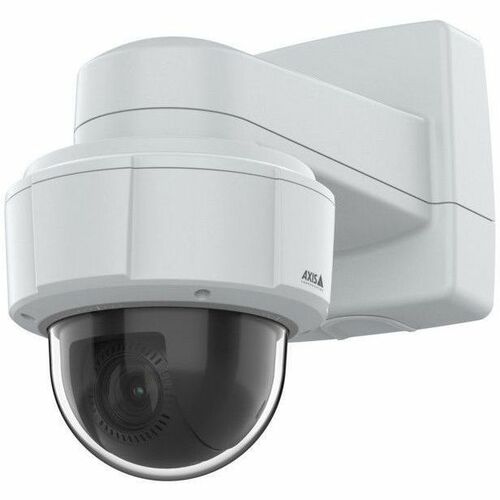

This affordably priced camera delivers great image quality in 4 MP with 10x optical zoom. It offers continuous 360° pan and autofocus ensures detailed, sharp images - every time. Compatible with all Axis PTZ mounts, it can be mounted both in- and outdoors. Built on ARTPEC-8, it includes a deep learning processing unit (DLPU) enabling improved processing and storage capabilities. And AXIS Object Analytics can detect and classify humans, vehicles, and types of vehicles. Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
- 4 MP and 10x optical zoom
- Continuous 360° pan
- Support for analytics with deep learning
- Compact design
- PoE or 24 V with audio and I/O connectivity
Especificaciones técnicas
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Storage | |
| Storage Type | Memory Card |
| Exposure | |
| Longest Shutter Speed | 0.2 Second |
| Shortest Shutter Speed | 1/27000 Second |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 100% |
| Technical Information | |
| HD Recording | Yes |
| Camera Iris | P-iris |
| Auto | |
| Physical Characteristics | |
| Weight (Approximate) | 2.20 lb (1000 g) |
| Form Factor | Dome |
| Product Color | White |
| Color Family | White |
| Display & Graphics | |
| Color Supported | Color |
| Image Sensor Size | 1/3" |
| Image Sensor Type | RGB CMOS |
| Effective Camera Resolution | 4 Megapixel |
| Field of View | Horizontal field of view: 59.1°-6.5°, Vertical field of view: 35°-3.67° |
| Power Description | |
| Input Voltage | 28 V DC |
| 20 V DC | |
| Maximum Power Consumption | 12.95 W |
| Power Source Type | PoE |
| DC | |
| Lens | |
| Lens Type | Varifocal |
| Optical Zoom | 10x |
| Maximum Aperture | f/1.6 |
| Maximum Focal Length | 47 mm (1.85") |
| Minimum Focal Length | 4.7 mm (0.19") |
| Minimum Aperture | f/3 |
| Lens Included | Yes |
| General Information | |
| Product Type | Network Camera |
| Manufacturer Part Number | 02769001 |
| Manufacturer Website Address | http://www.axis.com |
| Manufacturer | Axis Communications |
| Product Model | AXIS M5526-E |
| Product Name | M5526-E PTZ Camera Indoor and outdoor 4 MP with 10x zoom and focus recall |
| Product Series | M55 |
| Brand Name | AXIS |
| Video | |
| Video Formats | H.264H (MPEG-4 Part 10/AVC) |
| H.264M (MPEG-4 Part 10/AVC) | |
| H.265 | |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| H.264 | |
| H.264B (MPEG-4 Part 10/AVC) | |
| Zipstream | |
| Maximum Video Resolution | 2688 x 1512 |
| Maximum Frame Rate | 60 fps |
| Miscellaneous | |
| Package Contents |
|
| Features | Wide Dynamic Range |
| Human Detection | |
| Ingress Protection | |
| Day/Night | |
| HTTPS Encryption | |
| White Balance | |
| Vehicle Detection | |
| Privacy Masking | |
| Password Protection | |
| Motion Detection | |
| Country of Origin | Cambodia |
| Environmentally Friendly | Yes |
| Indoor/Outdoor | Indoor/Outdoor |
| Impact Protection Rating | IK09 |
| Ingress Protection Rating | IP66 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Network & Communication | |
| Protocols | DDNS |
| DHCPv4/v6 | |
| IEEE 802.1AR | |
| ICMPv4/ICMPv6 | |
| ICMP | |
| HTTPS | |
| HTTP/2 | |
| ZeroConf | |
| UPnP | |
| UDP | |
| TLS | |
| TCP | |
| Syslog | |
| SSH | |
| SRTP/RTSPS | |
| SNMPv1/v2c/v3 (MIB2) | |
| SMTP | |
| SFTP | |
| RTSP | |
| RTP | |
| RTCP | |
| ONVIF | |
| NTS | |
| NTP | |
| MQTT v3.1.1 | |
| MQTT | |
| LLDP | |
| DiffServ (QoS) | |
| DNS/DNSv6 | |
| FTP | |
| HTTP | |
| ARP | |
| CDP | |
| CIFS/SMB | |
| IEEE 802.1X (EAP-TLS) | |
| IGMPv1/v2/v3 | |
| IPv4 | |
| IPv6 USGv6 | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Remote Management | Yes |
