Acerca del producto

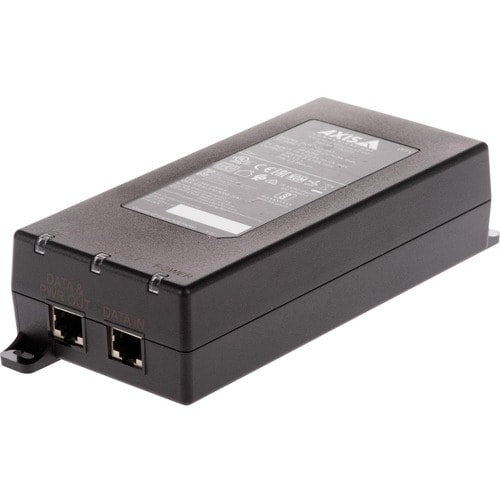

AXIS 90 W Midspan AC/DC is perfect for installations where mains power is not an option. With a power input of either 24 V AC or 20-26.4 V DC, it can deliver up to IEEE 802.3bt (90 W) to your network device. AXIS 90 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 90 W power.
24 V AC can be needed in harsh environments where new cabling or installations are not an option and you need to retrofit box, dome or PTZ cameras.
20-26.4 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.
- 24 V AC and 20-26.4 V DC input
- Up to IEEE 802.3bt (90 W) output
- Ideal for retrofitting PTZ
- Compatible with Axis PoE devices
- Flexible installation
Especificaciones técnicas
| Interfaces/Ports | |
| Input Ports | 1 x Gigabit Ethernet |
| Output Ports | 1 x Gigabit PoE |
| Miscellaneous | |
| Package Contents |
|
| Compatibility |
Fixed Box Cameras:
|
| Certifications & Standards |
Safety:
Environment:
EMC:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Power Description | |
| Input Voltage | 24 V AC |
| 26.4 V DC | |
| 20 V DC | |
| Maximum Output Power | 90 W |
| Maximum Output Voltage | 56 V DC |
| Physical Characteristics | |
| Weight (Approximate) | 500 g |
| Form Factor | Wall Mountable |
| Height | 1.70" (43.18 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 7.40" (187.96 mm) |
| Product Color | Black |
| General Information | |
| Product Type | PoE Injector |
| Manufacturer Part Number | 02209-021 |
| Manufacturer Website Address | http://www.axis.com |
| Packaged Quantity | 10 Piece |
| Manufacturer | Axis Communications |
| Product Name | 90 W Midspan AC/DC, 10 Pcs |
| Brand Name | AXIS |
