Acerca del producto

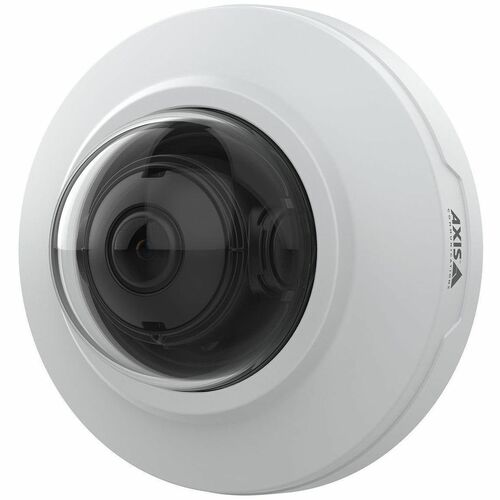

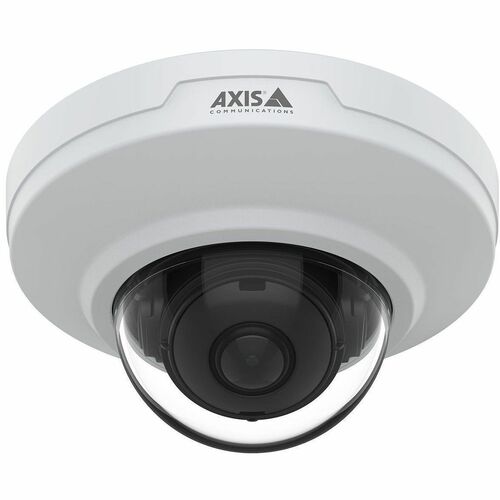

This cost-efficient mini dome features Wide Dynamic Range (WDR) to ensure clarity even when there's both dark and light areas in the scene. With Lightfinder, it delivers sharp color images even in low light. A deep learning processing unit enables intelligent analytics based on deep learning on the edge. And AXIS Object Analytics offers detection and classification of different types of objects - all tailored to your specific needs. Furthermore, this compact, easy-toinstall, vandal-resistant camera offers a wide-angle view of 130° and comes factory focused so there's no manual focusing required.
- Great image quality in 4 MP
- Compact, discreet design
- WDR and Lightfinder
- Support for analytics with deep learning
- Built-in cybersecurity features
- Features RGB CMOS sensor
- Up to 2688 x 1512 resolution for surveillance in real-time
- Network camera - Helps achieve high-quality video results
Especificaciones técnicas
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Storage | |
| Storage Type | Memory Card |
| Exposure | |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/38500 Second |
| Power Description | |
| Maximum Power Consumption | 4.20 W |
| Power Source Type | PoE |
| Technical Information | |
| HD Recording | Yes |
| Camera Iris | Fixed |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Maximum Operating Humidity | 85% |
| Lens | |
| Lens Type | Fixed |
| Maximum Aperture | f/2.1 |
| Maximum Focal Length | 2.4 mm (0.09") |
| Lens Included | Yes |
| Display & Graphics | |
| Color Supported | Color |
| Image Sensor Size | 1/2.7" |
| Image Sensor Type | RGB CMOS |
| Effective Camera Resolution | 4 Megapixel |
| Field of View | Horizontal field of view: 130° Vertical field of view: 93° |
| General Information | |
| Product Type | Network Camera |
| Manufacturer Part Number | 02832001 |
| Manufacturer Website Address | http://www.axis.com |
| Manufacturer | Axis Communications |
| Product Model | M3086-V |
| Product Name | Fixed 4 MP Mini Dome with Deep Learning Network Camera |
| Brand Name | AXIS |
| Physical Characteristics | |
| Weight (Approximate) | 5.29 oz (150 g) |
| Durability | Impact Resistant |
| Vandal Resistant | |
| Dust Resistant | |
| Water Resistant | |
| Form Factor | Mini Dome |
| Diameter | 3.98" (101 mm) |
| Height | 2.20" (56 mm) |
| Product Color | White |
| Color Family | White |
| Video | |
| Video Formats | H.264 |
| H.264B (MPEG-4 Part 10/AVC) | |
| H.264H (MPEG-4 Part 10/AVC) | |
| H.264M (MPEG-4 Part 10/AVC) | |
| H.265 | |
| Zipstream | |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Motion JPEG | |
| Maximum Video Resolution | 2688 x 1512 |
| Maximum Frame Rate | 30 fps |
| Miscellaneous | |
| Features | Multi-view Stream |
| Privacy Masking | |
| Video Management System | |
| White Balance | |
| Day/Night | |
| HTTPS Encryption | |
| Motion Detection | |
| Mirror | |
| Audio Compression | |
| Wide Dynamic Range | |
| Indoor/Outdoor | Indoor |
| Impact Protection Rating | IK08 |
| Ingress Protection Rating | IP42 |
| Network & Communication | |
| Protocols | MQTT |
| ZeroConf | |
| UPnP | |
| ARP | |
| CDP | |
| CIFS/SMB | |
| DDNS | |
| DHCPv4/v6 | |
| DiffServ (QoS) | |
| DNS/DNSv6 | |
| FTP | |
| HTTP | |
| HTTPS | |
| ICMP | |
| ICMPv4/ICMPv6 | |
| IGMPv1/v2/v3 | |
| IPv4 | |
| IPv6 USGv6 | |
| LLDP | |
| mDNS (Bonjour) | |
| MQTT v3.1.1 | |
| NTP | |
| NTS | |
| ONVIF | |
| RTCP | |
| RTP | |
| RTSP | |
| SFTP | |
| SIP | |
| SMTP | |
| SNMPv1/v2c/v3 (MIB2) | |
| SRTP/RTSPS | |
| SSH | |
| TCP | |
| TLS | |
| UDP | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Remote Management | Yes |
