Acerca del producto

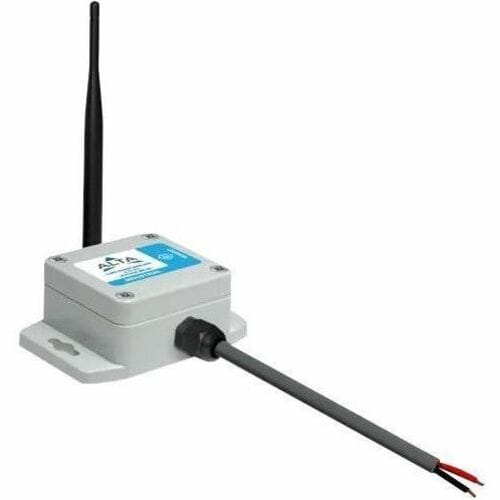

The ALTA Wireless Voltage Meter measures DC voltage up to 5V or 10V on user specified intervals.
Key Features
- Measurement Range: 0 to 5 VDC or 0 to 10 VDC
- Resolution: 1 mV
- Accuracy:
- Uncalibrated: ± 2.0% of reading ± 0.002 VDC
- Calibrated: ± 0.5% of reading ± 0.002 VDC
- Configurable thresholds for critical condition monitoring
Principles of Operation
The ALTA Wireless 5 and 10 VDC Voltage Meter measures the single-ended DC voltage across its two leads based on a user-configurable time interval or Heartbeat. On every Heartbeat, the sensor converts the analog voltage signal to a digital voltage measurement. This measurement is then sent to the gateway, making the data available in iMonnit or another approved data service.
The ALTA 5 and 10 VDC Voltage Meter can be calibrated for improved accuracy. Also, remember to remove any active voltages from the measurement leads when replacing batteries or performing other maintenance.
- Wireless range of 2,000+ feet through 18+ walls
- Frequency-Hopping Spread Spectrum (FHSS)
- Best-in-class interference immunity
- Best-in-class power management for longer battery life
- Encrypt-RF ® Security (Diffie-Hellman Key Exchange + Advanced Encryption Standard (AES)-128 Cipher Block Chaining (CBC) for sensor data messages)
- Sensor logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling
- Automatic over-the-air updates to sensor firmware (future-proof)
- Free iMonnit Basic Online Wireless Sensor Monitoring and Notification System to configure sensors, view data, and send alerts via SMS text, email, and voice call
Especificaciones técnicas
| Power Description | |
| Power Source | Battery |
| Technical Information | |
| Features | Weather Proof |
| Dirt Resistant | |
| Dust Resistant | |
| Water Resistant | |
| Battery Information | |
| Battery Chemistry | Lithium (Li) |
| Battery Capacity | 1500 mAh |
| Number of Batteries Supported | 1 |
| Battery Included | Yes |
| Battery Voltage | 3.60 V |
| Compatible Battery Sizes | AA |
| General Information | |
| Product Type | Wireless Voltage Meter |
| Manufacturer Part Number | MNS29INVM010 |
| Manufacturer Website Address | http://www.monnit.com |
| Manufacturer | Monnit Corporation |
| Product Name | Industrial Wireless 0-10 VDC Voltage Meter |
| Product Line | ALTA |
| Brand Name | Monnit |
| Physical Characteristics | |
| Material Details | Wire Lead:
|
| Weight (Approximate) | 4.70 oz (133.24 g) |
| Product Color | Red |
| Black | |
| Color Family | Dual Color |
| Product Material | Polyvinyl Chloride (PVC) |
| Copper | |
| Color Details | Wire Lead:
|
| Miscellaneous | |
| Application/Usage | Sensor |
| Pressure Sensing | |
| Battery | |
| Electrical Motor | |
| Humidity | |
| Machinery | |
| Temperature Sensing | |
| Transducer Measurement | |
| Voltage Measurement | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Indoor/Outdoor | Outdoor |
| Indoor | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
