Acerca del producto

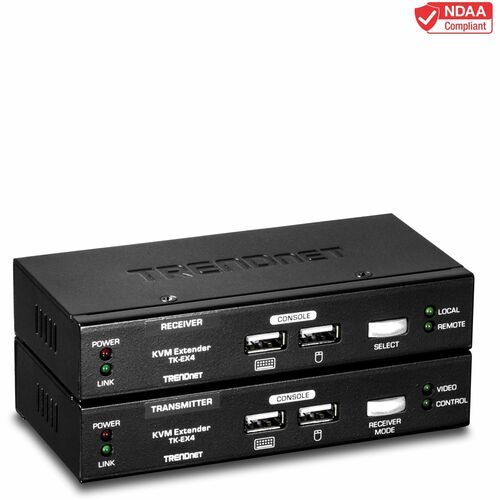

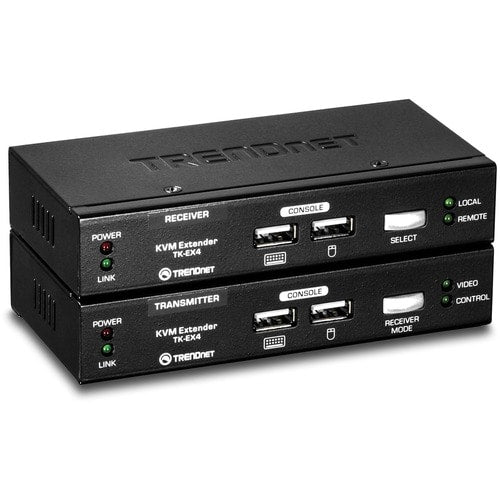

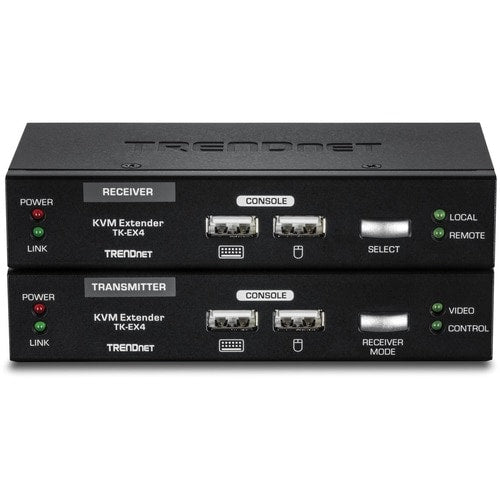

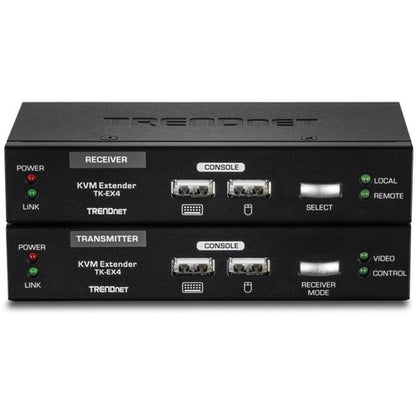

TRENDnet's USB VGA KVM Extension Kit, model TK-EX4, extends keyboard, video, and mouse controls for distances of up to 100m (328 ft.). Remotely access your server in the networking room by extending KVM controls to your office. Connect the KVM extender to a TRENDnet KVM switch to conveniently control multiple servers from a remote location.

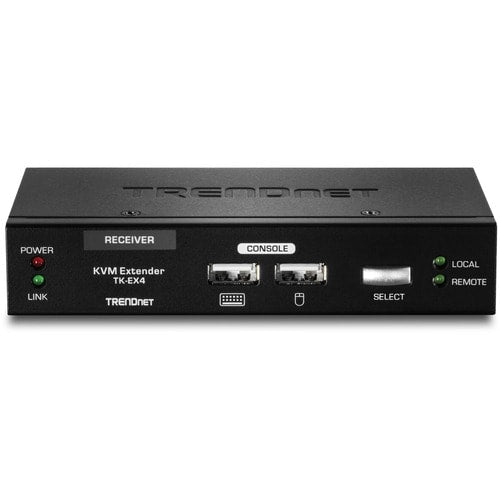

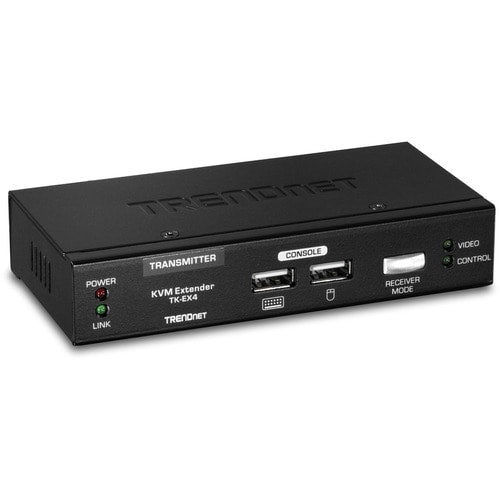

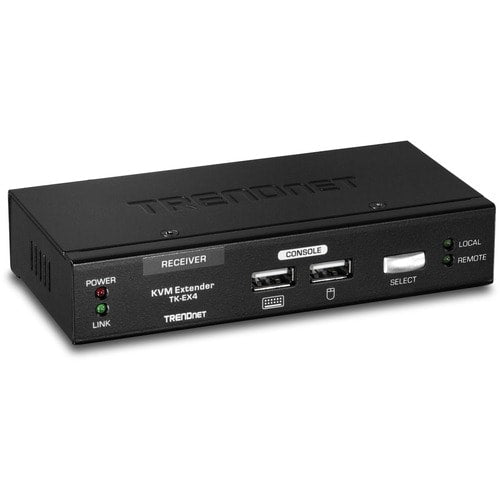

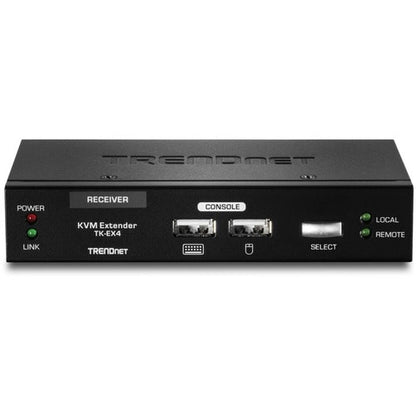

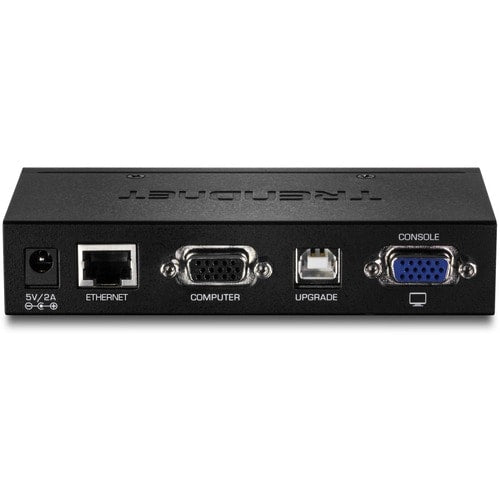

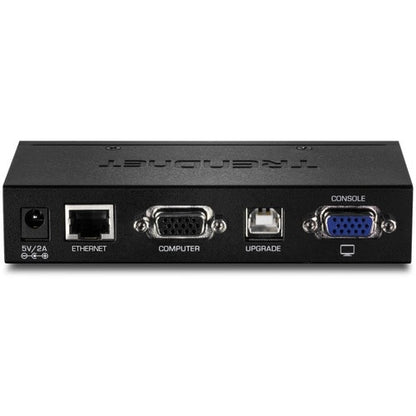

No software installation is required. Simply connect devices to the KVM extender with the included cables for full KVM controls. Input hot-key commands on the KVM extender control local and remote console stations. The remote console unit (receiver unit) supports PS/2 keyboard and mouse devices, and monitors with a VGA port. The local console unit (transmitter unit) supports USB mouse and keyboard, and VGA connections.
- Extend KVM controls for distances of up to 100m (328 ft.)
- Supports resolutions up to 1920 x 1200
- Connect to a TRENDnet KVM switch to manage multiple servers
- Convenient OSD management controls
- Features hot-key commands
- NDAA compliant
- Extend KVM controls for distances of up to 100m (328 ft.)
- Supports resolutions up to 1920 x 1200
- Connect to a TRENDnet KVM switch to manage multiple servers
- Convenient OSD management controls
- Features hot-key commands
- NDAA compliant
Especificaciones técnicas
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| Graphic Mode | WUXGA |
| Power Description | |
| Input Voltage | 220 V AC |
| 110 V AC | |
| Power Consumption | 4.70 W |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |

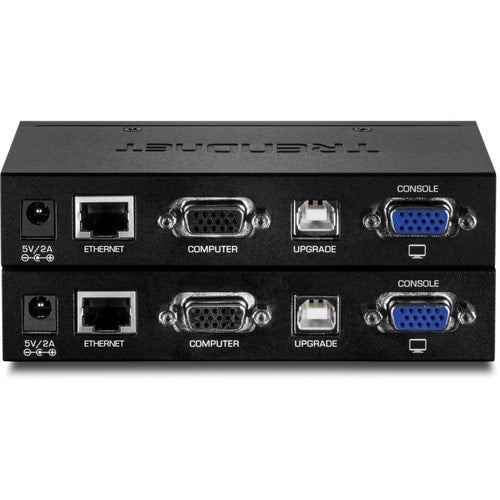

| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 6 |
| Number of VGA Ports | 4 |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| NDAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | KVM Console/Extender |
| Manufacturer Part Number | TKEX4 |
| Manufacturer Website Address | http://www.trendnet.com |
| Manufacturer | TRENDnet |
| Product Model | TK-EX4 |
| Product Name | USB KVM Extension Kit |
| Brand Name | TRENDnet |
| Product Condition | New |
| Physical Characteristics | |
| Transmitter Height | 0.98" (25 mm) |
| Transmitter Width | 5.12" (130 mm) |
| Transmitter Depth | 2.56" (65 mm) |
| Receiver Height | 0.98" (25 mm) |
| Receiver Width | 5.12" (130 mm) |
| Receiver Depth | 2.56" (65 mm) |
| Transmitter Weight (Approximate) | 10.05 oz (285 g) |
| Receiver Weight (Approximate) | 10.23 oz (290 g) |
