Acerca del producto

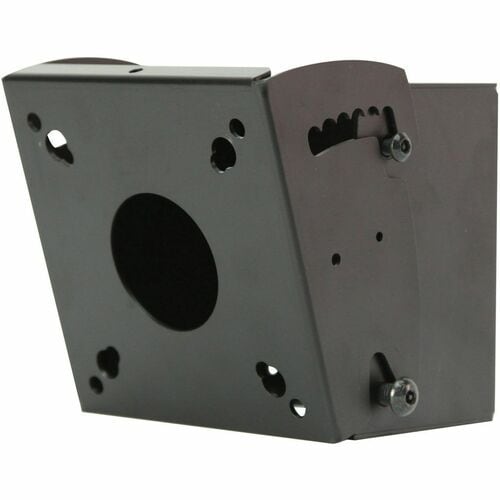

The SmartMount® PLCM-2 Ceiling Mount Tilt Boxes work with all 1.5 NPT extension pipes for versatility, support, and connection. The 1
5 NPT threaded pipes make it simple to customize each mount to your specific application. The PLCM Tilt Boxes can be used in conjunction with Peerless-AV's AEC or EXT columns, along with the PLP adaptor plates for custom ceiling mount applications. These tilt boxes provide -5° to 20° of forward tilt, and 360° of swivel, making it possible to find the perfect viewing angle.Ceiling plate and extension columns required (sold separately)VESA® 75 x 75 and 100 x 100mm mounting pattern provided (display mounting hardware ACC918 not included)Additional display mounting adaptor plates available (sold separately)PLCM-2 compatible with standard 1.5 NPT pipe (sold separately)-5° to 20° adjustable tilt and 360° swivel
Especificaciones técnicas
| General Information | |
| Product Type | Ceiling Mount |
| Manufacturer Part Number | PLCM-2 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Packaged Quantity | 1 Unit |
| Manufacturer | Peerless Industries, Inc |
| Product Model | PLCM-2 |
| Product Name | Ceiling Mount Tilt Boxes for up to 90" Displays |
| Product Series | PLCM-2 |
| Brand Name | SmartMount® |
| Miscellaneous | |
| Application/Usage | Room |
| Package Contents |
|
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Country of Origin | United States |
| Assembly Required | Yes |
| UL Listed | Yes |
| TAA Compliant | Yes |
| Indoor/Outdoor | Indoor |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Product Class | Ceiling Mount |
| Physical Characteristics | |
| Finishing | Powder Coated |
| Weight (Approximate) | 2.70 lb (1224.70 g) |
| Form Factor | Ceiling Mountable |
| Height | 5.53" (140.46 mm) |
| Width | 5.60" (142.24 mm) |
| Depth | 3.54" (89.92 mm) |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 100 x 100 |
| 75 x 75 | |
| Product Color | Black |
| Color Family | Black |
| Product Material | Cold Rolled Steel |
| Product Information | |
| Device Supported | Display |
| Features | Tilt |
| 360° Swivel | |
| 360° Yaw | |
| Adjustable Tilt | |
| Multiple Viewing Angle | |
| Maximum Load Capacity | 150 lb (68038.86 g) |
| Minimum Screen Size Supported | 10" |
| Maximum Screen Size Supported | 90" |
| Maximum Swivel Angle | 360° |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 20° |
| Mount Function | Tilt |
| Swivel | |
| Mount Surface | Ceiling |
