Acerca del producto

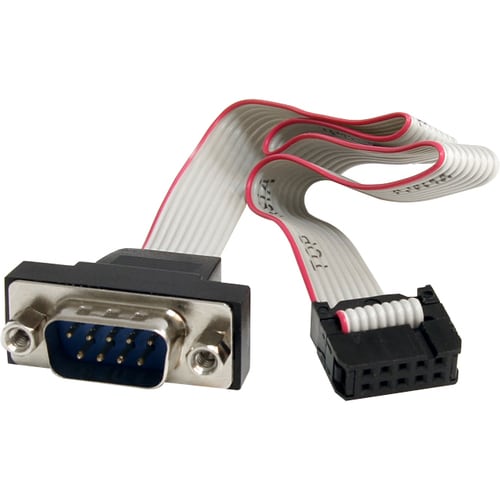

Turn a Motherboard IDC Serial Header into a Panel-Mountable 9-Pin RS232 Serial Connector. The PNL9M16 16-inch IDC Serial to Panel Mount Serial Cable, features a 10-pin (IDC) motherboard header connection on one end and a panel mount DB9 male connector port on the other - a simple answer for adding a DB9 (RS232) serial port to any computer system which has an RS232 serial panel mount receptacle.
This cost-effective solution bridges the compatibility gap between modern computers and legacy serial peripherals.
More from the Manufacturer
- For exceptional quality, upright compatibility and reliability use this Data Transfer Cable
- Fully compatible with motherboards
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 0.80 oz (22.68 g) |
| Weight (Approximate) | 0.56 oz (15.88 g) |
| Shipping Height | 8.66" (219.96 mm) |
| Shipping Width | 5.04" (128.02 mm) |
| Product Color | Gray |
| Color Family | Gray |
| General Information | |
| Product Type | Data Transfer Cable |
| Manufacturer Part Number | PNL9M16 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 16in 9 Pin Serial Male to 10 Pin Motherboard Header Panel Mount Cable |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 1.3 ft (0.41 m) |
| Conductor | Copper |
| Device Supported | Motherboard |
| Connector Type on First End | DB-9 RS-232 Serial - Male |
| Connector Type on Second End | IDC RS-232 Serial - Female |
| Connector on First End Details | 1 x 9-pin DB-9 RS-232 Serial - Male |
| Connector on Second End Details | 1 x 10-pin IDC RS-232 Serial - Female |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
