Acerca del producto

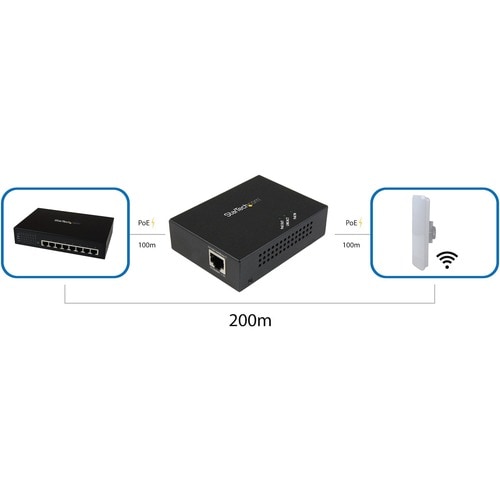

Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it's easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability.
Unrestricted PoE+ range and convenience
Need more distance This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices.
Simply connect the extender to your power sourcing equipment (PSE) and your PoE-powered device (PD) and you're all set. The extender is compliant with the 802.3at/af standard, so it will work with existing PSE, such as a StarTech.com PoE+ switch (IES81000POE).
Daisy chain for longer distance and flexibility
Still need more distance If an extra 100m isn't enough, this full-featured PoE extender offers daisy chain capability.

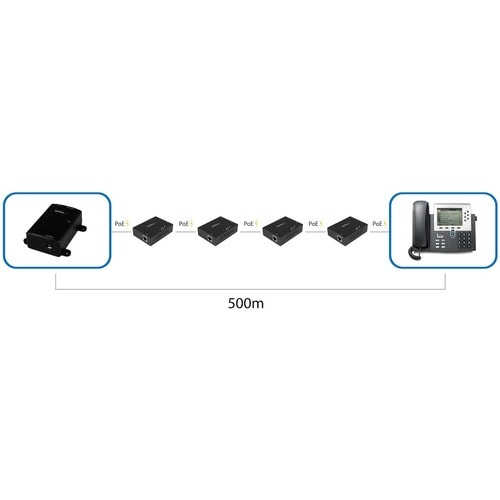

You can easily connect four extenders together, letting you install your PoE+ PD up to 500m (1640ft) away. It's perfect for business, education, and retail environments (output wattage is dependent on the number of daisy-chained extenders used).
Convenient installation options and durable construction
Get up and running quickly. This Gigabit PoE+ extender can be positioned right where you need it, with a wall-mountable design that requires no external power adapter.
You can enjoy reliable performance with little worry of downtime or failure, the extender features a rugged metal housing with built-in ESD and surge protection.
The POEEXT1GAT is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Ideal for Wi-Fi® access points, IP phones, surveillance cameras, and kiosks where a power connection is not available
- Enable remote installation of PoE+ devices over longer distance than conventional PoE range capabilities
- Perfect for SOHO, SMB, system integrators, and IT administrators
More from the Manufacturer
- Deploy and access your Gigabit PoE-powered devices (PD) further away
- Extend your PoE PDs over longer distances by daisy-chaining four extenders up to 500m (1640ft) total range (reduced power output at each connection)
- Compact, wall-mountable, and rugged metal housing for convenience and reliability
- 2kV ESD and surge protection
- Plug-and-play setup with no power adapter required
- IEEE 802.3at 30W input to IEEE 802.3at/af 24W output
- 52V to 56V output voltage
- Automatically detects your connected PD to prevent damage if incorrectly installed
Especificaciones técnicas
| Interfaces/Ports | |
| Input Ports | 1 x Gigabit Ethernet |
| Output Ports | 1 x Gigabit PoE+ |
| Technical Information | |
| Protection Type | Surge Protection |
| ESD Protection | |
| Power Description | |
| Maximum Output Power | 24 W |
| Minimum Output Voltage | 52 V DC |
| Maximum Output Voltage | 56 V DC |
| General Information | |
| Product Type | PoE Extender |
| Manufacturer Part Number | POEEXT1GAT |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 1-Port Gigabit PoE+ Extender - 802.3at and 802.3af - 100 m (330 ft) |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 6.81 oz (193 g) |
| Form Factor | Wall Mountable |
| Length | 3.70" (94 mm) |
| Height | 0.98" (25 mm) |
| Width | 2.72" (69 mm) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility | Compatible Products:
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) |
