Acerca del producto

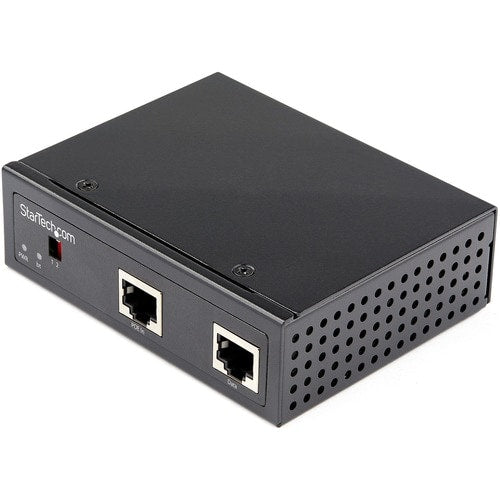

Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available.
Power Non-PoE DevicesPerfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include:
- Security (card swipe or proximity boxes)
- Environmental monitoring (temperature/moisture sensors)
- Telco (analog interface systems/conversion)
Straightforward Deployment

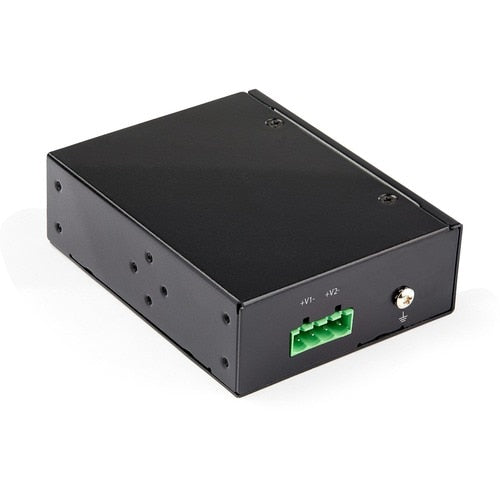

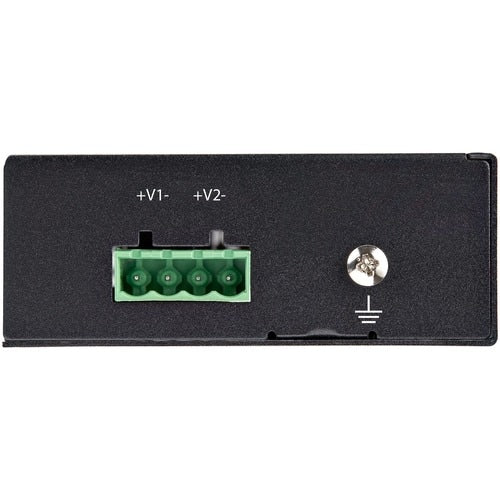

Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).

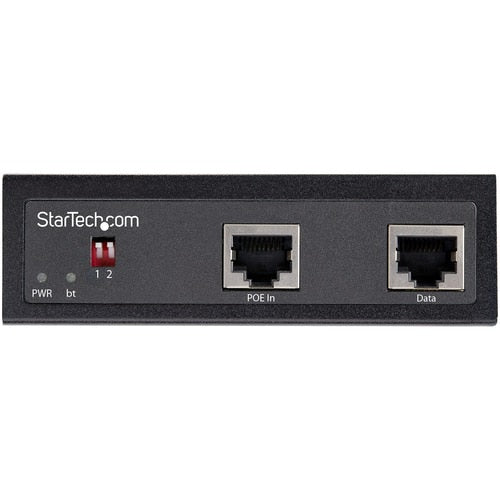

The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware.
Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.
The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
- HIGH POWER GIGABIT PoE SPLITTER: Power non-PoE devices using network infrastructure where power isn't available
- Splits PoE connection (max 90W) into RJ45 data & DC power (terminal block)
- 90W POE IEEE802.3bt: Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), IEEE 802.3bt (PoE++ / Type 3); power out configured w/ DIP switch for 12/16/24/48V DC (1.5A) via terminal block
- TECH SPECS: High Speed 1 Gbps
- 1 x RJ45 PoE In
- 1 x RJ45 Data Out
Especificaciones técnicas
| Power Description | |
| Minimum Output Voltage | 12 V DC |
| Maximum Output Voltage | 48 V DC |
| Interfaces/Ports | |
| Input Ports | 1 x PoE+ |
| Output Ports | 1 x Ethernet |
| 1 x Terminal Block | |
| Physical Characteristics | |
| Weight (Approximate) | 5.29 oz (150 g) |
| Form Factor | DIN Rail/Wall Mountable |
| Length | 4.10" (104.14 mm) |
| Height | 1.30" (33.02 mm) |
| Width | 3.20" (81.28 mm) |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | PoE Splitter |
| Manufacturer Part Number | POESLT1G48V |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Model | POESLT1G48V |
| Product Name | POESLT1G48V PoE Splitter |
| Brand Name | StarTech.com |
