Acerca del producto
A mini-tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR750LCD3C provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR750LCD3C uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR750LCD3C comes with a three-year warranty (including coverage of batteries) and a $375,000 Connected Equipment Guarantee.
- Capacity: 750 VA / 750 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120 VAC ± 5%
- Runtime (half/full): 10.7 minutes / 3.3 minutes
- Plug type & cord: NEMA 5-15P, 5 ft. cord
- Outlets: 6 surge + battery backup

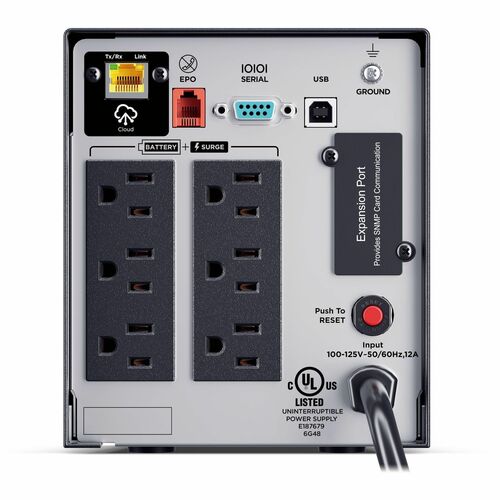

- Outlet types: 6 × NEMA 5-15R
- Communication: USB, Serial, SNMP, Relay, EPO, Cloud
- Management software: PowerPanel® Business Edition
- Cisco compatible: Yes
- Remote management: Yes
- Environmental sensor: Yes, with optional RMCARD205
- ENERGY STAR® qualified: Yes
- Warranty: 3 year
- Connected Equipment Guarantee: $375,000
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Display & Graphics | |
| Display | LCD |
| Warranty | |
| Additional Warranty Information | Three-year warranty (including coverage of batteries) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Miscellaneous | |
| Certifications & Standards |
|
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | Relay-MS Card |
| SNMP/HTTP Remote Monitoring | |
| Alarm | Fault |
| Low Battery | |
| Overload | |
| Replace Battery | |
| Battery Mode | |
| Physical Characteristics | |
| Weight (Approximate) | 26.01 lb (11800 g) |
| Form Factor | Mini-tower |

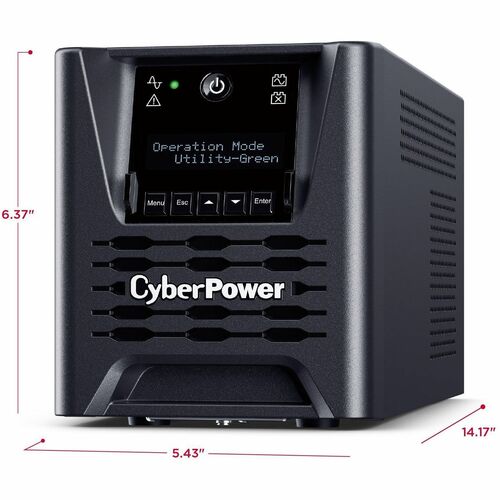

| Height | 6.38" (162 mm) |
| Width | 5.43" (138 mm) |
| Depth | 14.17" (360 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PR750LCD3C |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR750LCD3C |
| Product Name | Smart App Sinewave PR750LCD3C 750VA Mini-tower UPS |
| Product Line | Smart App Sinewave |
| Brand Name | CyberPower |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 7000 mAh |
| Number of Batteries | 2 |
| Backup/Run Time (Half Load) | 10.70 Minute |
| Backup/Run Time (Full Load) | 3.30 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 1350 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 74 V AC - 154 V AC |
| 100 V AC - 125 V AC | |
| Output Frequency | 60 Hz |
| 50 Hz | |
| Input Frequency | 47 Hz |
| 63 Hz | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 750 W |
| Output Power Factor | 1 |
| Technical Information | |
| Application/Usage | Network Device |
| VoIP | |
| Corporate | |
| Server | |
| Telecommunication | |
| Storage Device | |
| Features | Audible Alarm |
| Overload Protection | Yes |
| Surge Suppression | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 5 ft (1.52 m) |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Number of Battery & Surge Outlets | 6 |
| Transfer Time | 4 ms |
| Receptacle Detail | 6 x NEMA 5-15R |
