Acerca del producto

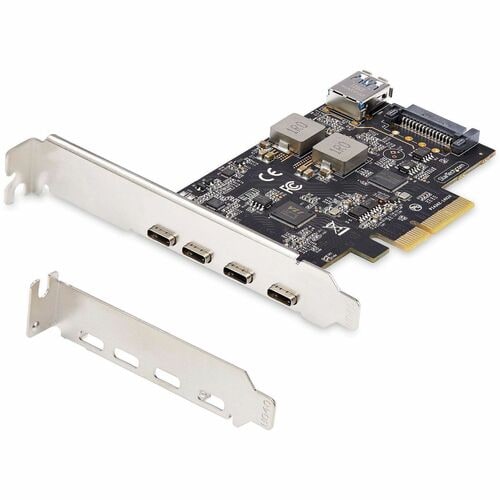

Upgrade or expand a desktop or server's USB connectivity by adding four external USB Type-C 10Gbps ports and one internal USB Type-A 10Gbps port via a single PCI Express x4 connection.
USB 3.2 Gen 2 (10Gbps) Performance
The ASM3142 controller supports USB 3.2 transfer speeds of up to 10Gbps, making it ideal for transferring large files or editing high-resolution photos and videos on external storage devices.
Charge and Sync USB Devices
This USB PCIe expansion card can receive supplemental power through SATA power, providing up to 5V 3A (15W) per USB Type-C port and 5V 1.5A (7.5W) on the USB Type-A port when motherboard power is insufficient.
Compatibility
The PCI Express USB card drivers auto-install in most major operating systems, including Windows 8 and up, macOS, and Linux. It works with hardware platforms such as Intel, AMD, and Apple Silicon and fits in PCI Express x4, x8, and x16 slots. Additionally, the USB expansion card comes with a pre-installed standard profile bracket and includes a low-profile bracket for compatibility with small form factor (SFF) desktops and servers.
- HIGH-PERFORMANCE USB CARD: Upgrade or expand a desktop/server's USB connectivity by adding four external USB Type-C 10Gbps ports and one internal USB Type-A 10Gbps port via a single PCI Express x4 connection
- FAST DATA TRANSFER: ASM3142 controller supports USB 3.2 transfer speeds of up to 10Gbps; Ideal for transferring large files or editing high-resolution photos/videos on external storage devices
- OPTIONAL POWER: USB PCIe expansion card with SATA power supplies additional power to the USB ports (when motherboard power is insufficient), providing up to 5V 3A (15W) per USB Type-C port and 5V 1.5A (7.5W) on the USB Type-A port
- COMPATIBILITY: Drivers auto-install in most OS's including Windows 8 & up, macOS, and Linux; Works with all hardware platforms such as Intel, AMD, and Apple Silicon that have a PCI Express x4/x8/x16 slot; Does not support DP-Alt Mode/USB Power Delivery
- STANDARD & LOW PROFILE BRACKET: PCI Express USB Expansion Card comes with a pre-installed standard profile bracket and includes a low-profile bracket for compatibility with small form factor (SFF) desktops and servers
Especificaciones técnicas
| Media & Performance | |
| Data Transfer Rate | 1.25 GB/s |
| Technical Information | |
| Host Interface | PCI Express x4 |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of SATA Ports | 1 |
| USB Connector Type | Type-A |
| Type-C | |
| USB Version | 3.2 Gen 2 |
| Physical Characteristics | |
| Weight (Approximate) | 2.10 oz (59.53 g) |
| Length | 4.80" (121.92 mm) |
| Height | 0.90" (22.86 mm) |
| Width | 4.80" (121.92 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | USB Adapter |
| Manufacturer Part Number | PS4C3IA3-USB-C-CARD |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | USB Adapter |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Application/Usage | Hard Drive |
| Desktop | |
| Server | |
| Package Contents |
|
| Platform Supported | Mac |
| PC | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Software | |
| Operating System Supported | macOS Ventura |
| macOS Sonoma | |
| macOS Monterey | |
| macOS Big Sur | |
| Mac OS X 10.15 Catalina | |
| Mac OS X 10.14 Mojave | |
| Mac OS X 10.13 High Sierra | |
| Linux 3.5 | |
| Windows Server 2008 R2 | |
| Windows 8.1 | |
| Windows 8 | |
| Windows 7 | |
| Windows 11 | |
| Windows 10 | |
| Windows Server 2012 R2 | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 |
