Acerca del producto

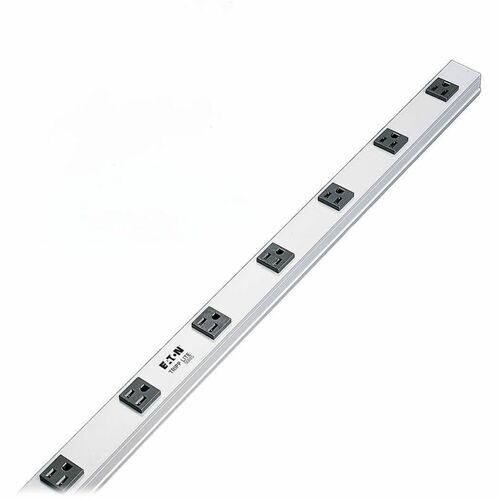

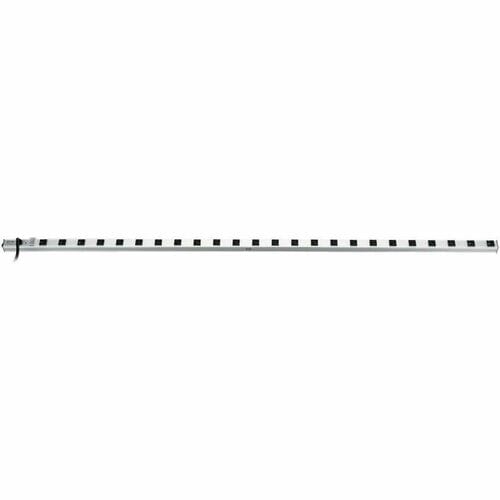

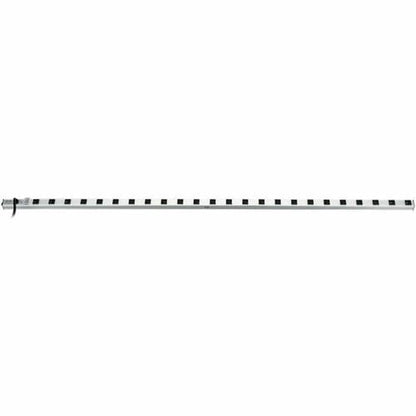

Tripp Lite's PS7224-20 power strip offers 20 amp, 120V multi-outlet AC power distribution in a convenient 72 inch mountable housing. Offers horizontal or vertical power distribution in rackmount, raceway and workbench applications. Includes 24 output receptacles with 2.795 inch center-to-center spacing, 15 ft AC line cord and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory or factory environments.
INPUT/OUTPUT: Input: NEMA 5-20P/Output: 22 NEMA 5-15R & 2 NEMA 5-20R
ELECTRICAL: 120V AC, 50/60Hz, 20A
FORMAT: 72 in. corded, mountable power strip
INPUT/OUTPUT: Input: NEMA 5-20P/Output: 22 NEMA 5-15R & 2 NEMA 5-20R
ELECTRICAL: 120V AC, 50/60Hz, 20A
FORMAT: 72 in. corded, mountable power strip
- 24 outlets
- Convenient and safe covered, on/off switch
- 20-amp circuit breaker
- 15 ft. cord
- 72" length
Especificaciones técnicas
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| General Information | |
| Product Type | Power Strip |
| Manufacturer Part Number | PS7224-20 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | Power Strip 120V AC |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |
| Input Voltage | 120 V AC |
| Power Switch | Yes |
| Power Rating | 2.40 kW |
| Maximum Frequency | 60 Hz |
| Maximum Input Current | 20 A |
| Maximum Output Voltage | 120 V AC |
| Technical Information | |
| Circuit Breaker | Yes |
| Receptacles Spacing | 2.80" (70.99 mm) |
| Receptacles | 22 x NEMA 5-15R |
| 2 x NEMA 5-20R | |
| Plug/Connector Type | NEMA 5-20P |
| Cord Length | 15 ft (4.57 m) |
| Physical Characteristics | |
| Weight (Approximate) | 6.50 lb (2948.35 g) |
| Form Factor | Rack-mountable |
| Mount Type | Vertical |
| Rack Height | 0U |
| Height | 1.50" (38.10 mm) |
| Width | 1.50" (38.10 mm) |
| Depth | 72" (1828.80 mm) |
| Product Color | Black |
| Silver | |
| Color Family | Dual Color |
| Product Material | Metal |
