Acerca del producto

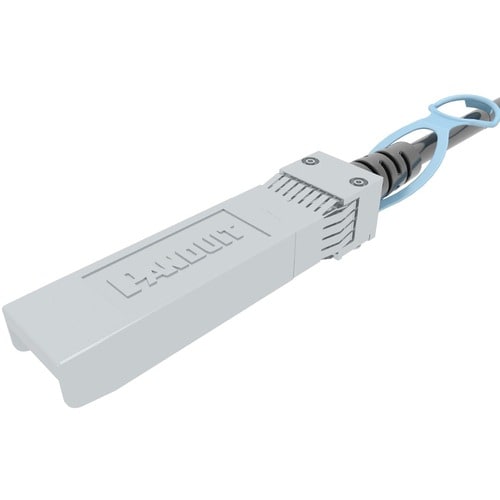

High bandwidth interconnects are required for next generation data centers. Panduit offers SFP28 Direct Attach Copper Cable Assemblies. These passive cables provide a cost-effective solution for interconnecting high speed 25GbE switches and servers.
This high speed data transport capability is ideal as server virtualization becomes more prevalent. With multiple virtual machines, server I/O consolidation topology requires 25 Gb/s interconnects between top of rack switches and servers. By incorporating SFP28 Passive DAC Cable Assemblies into the physical infrastructure, businesses can achieve 25 Gigabit performance port-toport without additional signal processing or conversion, providing a low power, low latency server interconnect for top of rack switching applications.
This high speed data transport capability is ideal as server virtualization becomes more prevalent. With multiple virtual machines, server I/O consolidation topology requires 25 Gb/s interconnects between top of rack switches and servers. By incorporating SFP28 Passive DAC Cable Assemblies into the physical infrastructure, businesses can achieve 25 Gigabit performance port-toport without additional signal processing or conversion, providing a low power, low latency server interconnect for top of rack switching applications.
- Features Flame Resistant
- Allows you to access all of the networked data, swiftly and securely
- Twinaxial cable type - for places where up to 10 meters coverage with high-speed data transfer is required
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Blue |
| Color Family | Blue |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | PSF2PZC5MBU |
| Manufacturer Website Address | http://www.panduit.com |
| Packaged Quantity | 1 |
| Manufacturer | PANDUIT CORP |
| Product Name | Twinaxial Network Cable |
| Brand Name | Panduit |
| Technical Information | |
| Cable Length | 16.4 ft |
| Data Transfer Rate | 25 Gbit/s |
| Device Supported | Network Device |
| Switch | |
| Computer | |
| Server | |
| Shielding | Yes |
| Features | Passive |
| Latching Connector | |
| Pull Tab Latch | |
| Strain Relief | |
| Flame Resistant | |
| Bendable | |
| Cable Type | Twinaxial |
| Connector Type on First End | SFP28 Network |
| Connector Type on Second End | SFP28 Network |
| American Wire Gauge | 26 AWG |
| Connector on First End Details | 1 x SFP28 Network |
| Connector on Second End Details | 1 x SFP28 Network |
