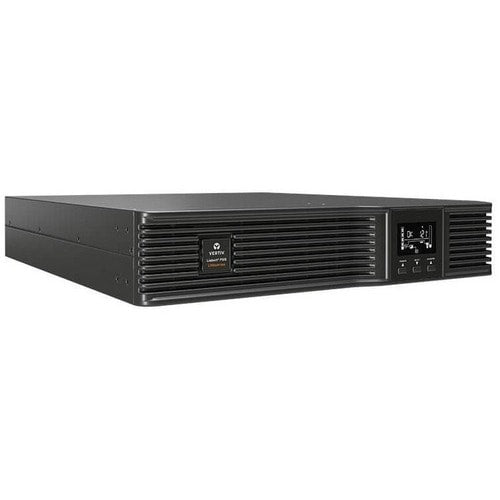

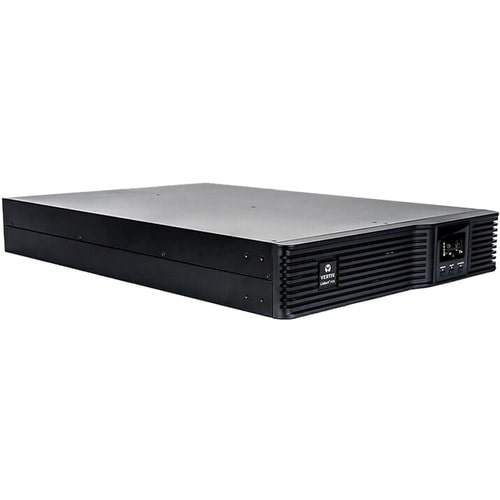

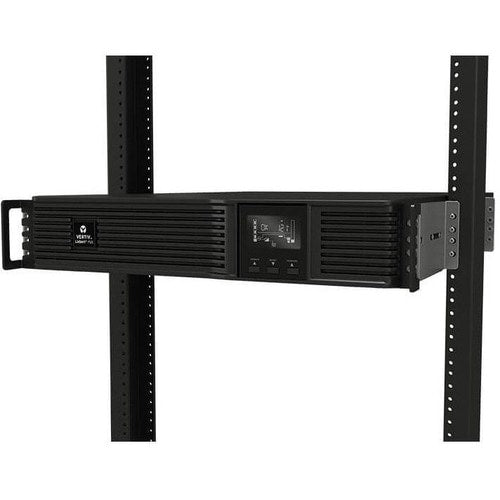

The Vertiv Liebert PSI5 uninterruptible power supply (UPS) is designed to protect and extend the life of your electronic devices in school, home and office. This 3000VA UPS offers cost-effective protection from downtime and damage caused by power outages, brownouts, sags, surges or noise interference. Automatic Voltage Regulation (AVR) extends battery life. Voltage regulation is from 83 to 159 VAC without using the battery. With advanced pure sine wave output, this line interactive UPS ensures availability of critical IT applications like network closets and small data centers. This battery backup allows orderly shutdown of critical equipment. It takes less than 6 milliseconds transfer time to battery. Add an optional Vertiv Liebert Unity communication card and remotely monitor up to 50 UPS systems with free Vertiv Trellis Power Insight Application. It has a 2-year Vertiv UPS warranty.
- AUTOMATIC VOLTAGE REGULATION (AVR): Safeguards against voltage fluctuations to extend battery life.
- PURE SINE WAVE UPS: System protects against power fluctuations, equipment damage and data loss.
- MORE USABLE POWER: This single phase line interactive UPS has 0.9 output power factor.
- REMOTE MANAGEMENT CAPABILITY: Add a communication card to this UPS to monitor devices remotely.

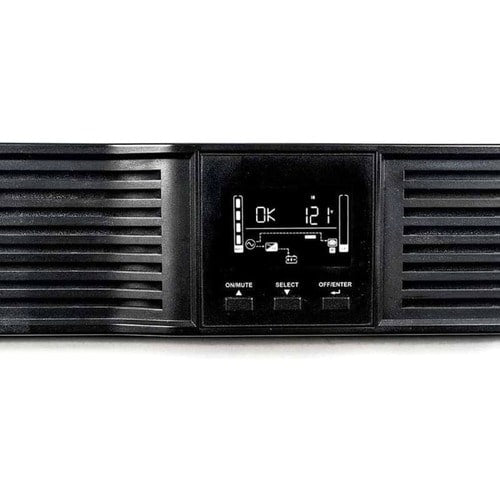

- ROTATABLE LCD DISPLAY: View of real-time conditions, alarm notice, and runtime information.
Especificaciones técnicas
| Controls/Indicators | |
| Status Indicators | LCD Display |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |

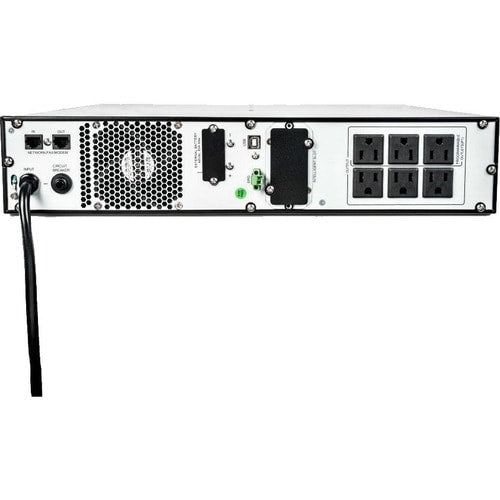

| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 70.80 lb (32114.34 g) |

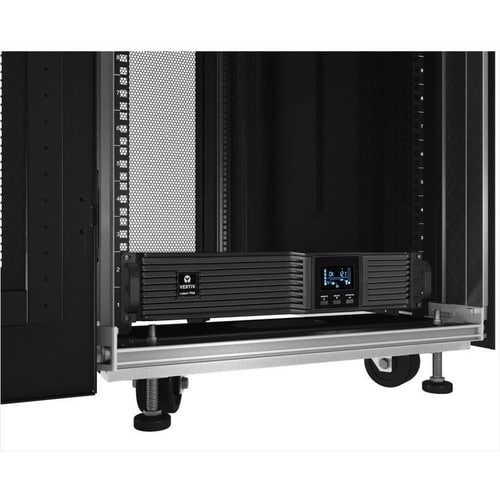

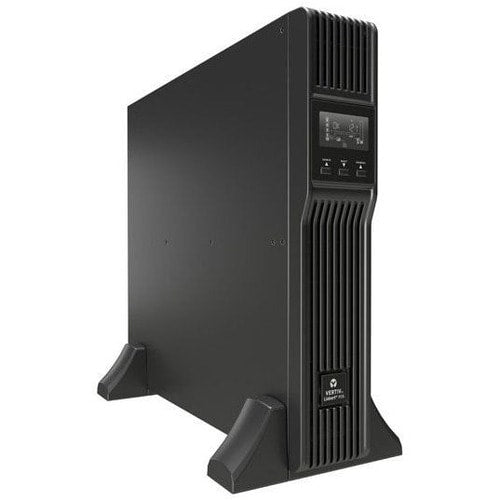

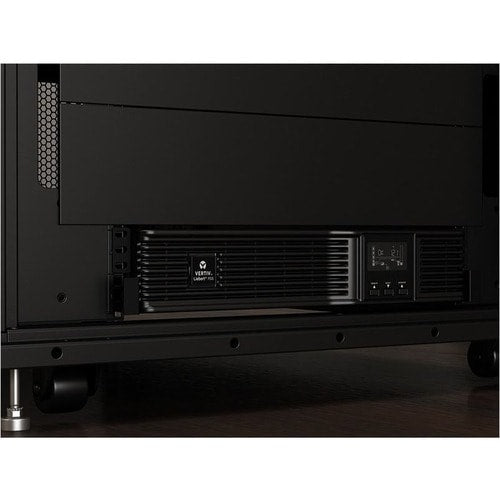

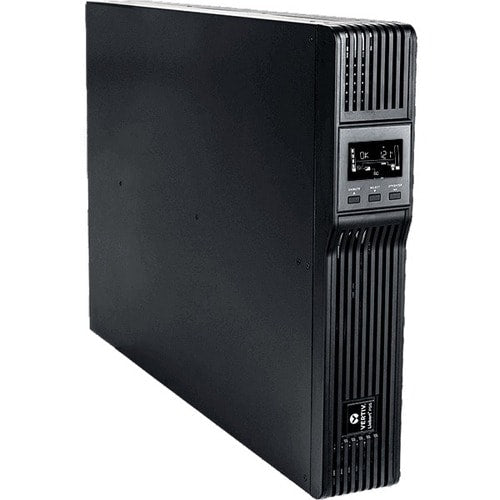

| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 24.80" (629.92 mm) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PSI5-3000RT120 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Name | PSI5 3000VA/2700W, 120VAC, Rack-tower |
| Product Series | PSI5 |
| Brand Name | Vertiv Liebert |
| Miscellaneous | |
| Additional Information |
|

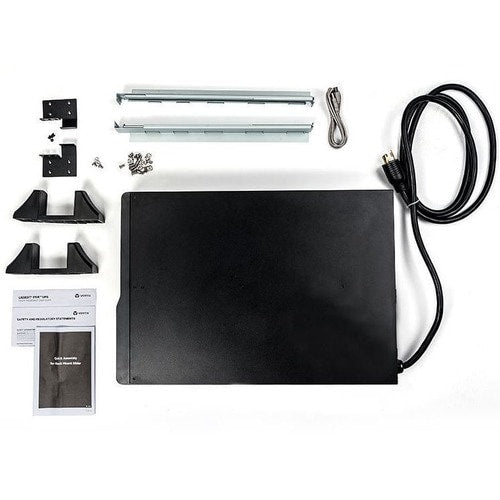

| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 12 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Valve-regulated |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 4 Hour |
| Number of External Battery Cabinets | 6 |
| Backup/Run Time With External Battery Cabinet (Full Load) | 2.73 Hour |
| Backup/Run Time With External Battery Cabinet (Half Load) | 6.17 Hour |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC |
| 120 V AC | |
| 125 V AC | |
| 115 V AC | |
| 110 V AC | |
| Surge Energy Rating | 1372 J |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 75 V AC - 146 V AC |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Technical Information | |
| Application/Usage | VoIP |
| POS Terminal | |
| Power Supply | |
| Storage Device | |
| Server | |
| Security System | |
| Automation System | |
| Business | |
| Cash Register | |
| Critical System | |
| Education | |
| Electronic Device | |
| Entertainment Center | |
| Gaming Console | |
| Healthcare | |
| IT System | |
| Large Network Peripheral | |
| Media Closet | |
| Multimedia Terminal Adapter | |
| Network Bridge | |
| Network Closet | |
| Network Workstation | |

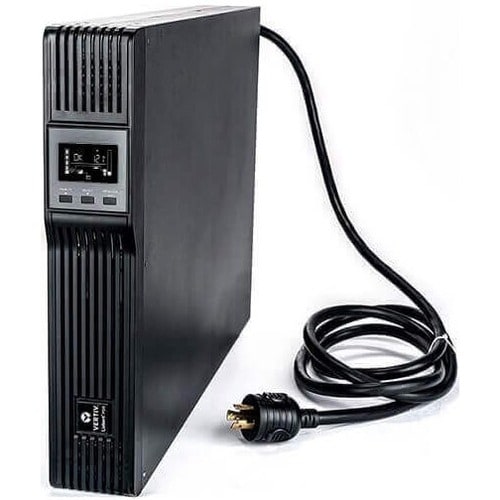

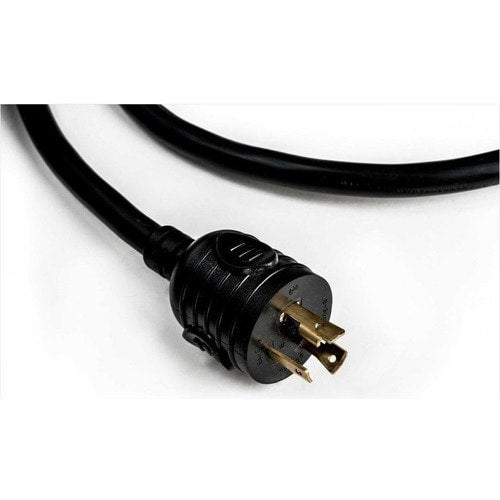

| Plug/Connector Type | NEMA L5-30P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20R |
| NEMA L5-30R | |
| NEMA 5-15/20R | |
| AVR | Yes |
| Number of Battery & Surge Outlets | 6 |
| Transfer Time | 6 ms |
| Receptacle Detail | 3 x NEMA 5-15/20R |
| 1 x NEMA L5-30R | |
| 3 x NEMA 5-20R |
