The Vertiv Liebert PSI5 uninterruptible power supply (UPS) is designed to protect and extend the life of your electronic devices in school, home and office. This 750VA UPS tower offers cost-effective protection from downtime and damage caused by power outages, brownouts, sags, surges or noise interference. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. Voltage regulation is from 83 to 159 VAC without using the battery. With advanced pure sine wave output, this line interactive UPS ensures availability of critical IT applications like network closets and small data centers. This battery backup allows orderly shutdown of critical equipment. It takes less than 6 milliseconds transfer time to battery. Add an optional Vertiv Liebert Unity communication card and remotely monitor up to 50 UPS systems with free Vertiv Trellis Power Insight Application. It has a 2-year Vertiv UPS warranty with optional extensions for up to 5 years total coverage.
- Works adequately in situations where the supply is prone to sags and surges
- 750 VA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 675 W load capacity
- 750 VA load capacity provides sufficient backup during power failures

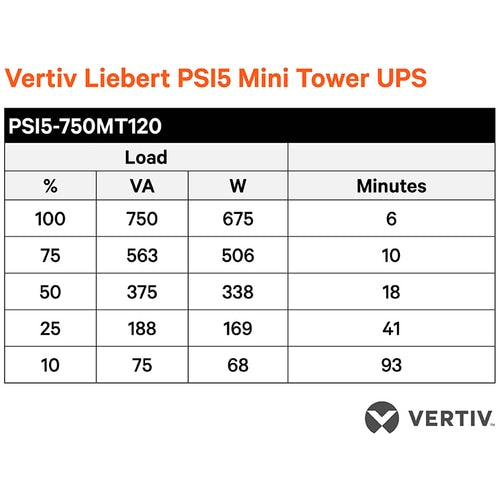

- Up to 6 minute runtime on full load to preserve critical data from power shortage interruptions
Especificaciones técnicas
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Serial Port | No |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 24.70 lb (11203.73 g) |
| Form Factor | Tower |
| Height | 8.70" (220.98 mm) |
| Width | 5.70" (144.78 mm) |
| Depth | 14.60" (370.84 mm) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PSI5-750MT120 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | PSI |
| Product Name | PSI5-750MT120 UPS |
| Product Series | PSI5 |
| Brand Name | Vertiv Liebert |
| Miscellaneous | |
| Package Contents |
|
| Software Included | Power Insight 2.2 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Energy Star | No |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 2 |
| Backup/Run Time (Half Load) | 18 Minute |
| Backup/Run Time (Full Load) | 6 Minute |
| Battery Characteristics | Valve-regulated, Non-spillable |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 8 Hour |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC |
| 110 V AC | |
| 115 V AC | |
| 125 V AC | |
| 120 V AC | |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 75 V AC - 146 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 65 Hz |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 675 W |
| Technical Information | |
| Application/Usage | Education |
| Data Center | |
| Electronic Device | |
| Office | |
| Mission Critical Equipment | |
| Home | |
| Network Closet | |
| Dataline Protection | RJ-45 |
| RJ-11 | |
| Plug/Connector Type | NEMA 5-15P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| AVR | Yes |
| Transfer Time | 4 ms |
| Receptacle Detail | 5 x NEMA 5-15R |
