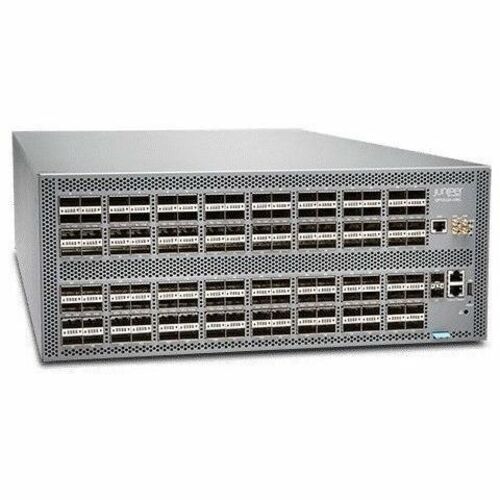

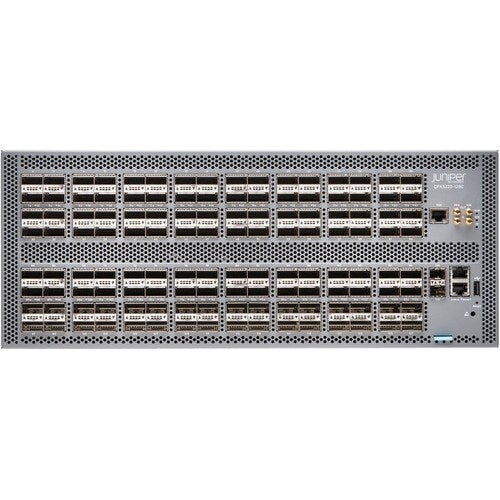

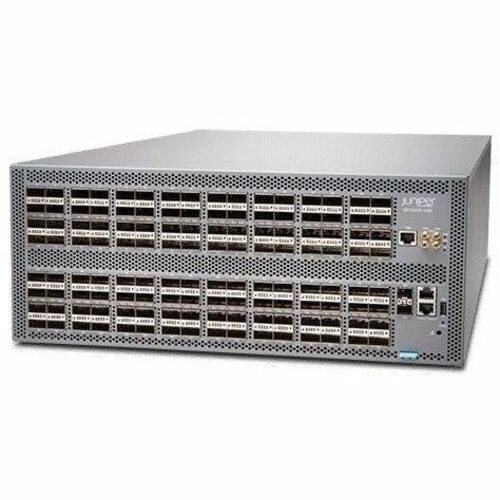

The QFX5220-128C offers 128 ports of 100-Gigabit Ethernet in a 4-U form factor. With 12.8 terabits per second (Tbps) bandwidth, the QFX5220-128C is optimally designed as a data aggregation or top-of-rack switch for small to medium size data centers and Massively Scalable Data Center (MSDC) deployments. The 100-Gigabit Ethernet ports can be configured either for 100-Gbps or 40-Gbps speeds. The 100-Gbps ports can also be channelized into 4 x 25 Gbps or 4 x 10 Gbps. There are two dedicated small-form factor plugable plus (SFP+) ports for 10 Gigabit or 1 Gigabit Ethernet support.

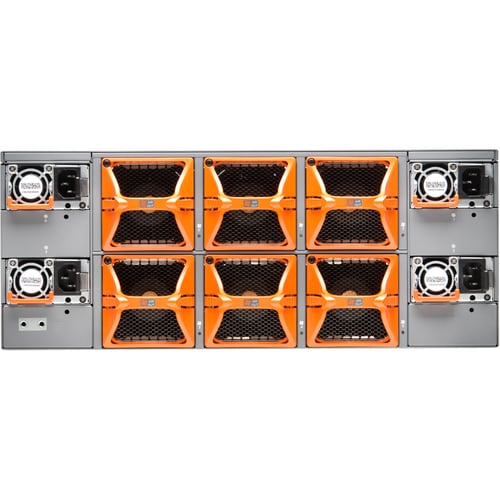

An Intel Xeon D-1518 processor drives the QFX5220 control plane, which runs the Junos OS Evolved software. The Junos OS Evolved software image is stored on two internal 50-GB solid-state drives (SSDs). The QFX5220-128C is available with ports-to-FRUs airflow (Airflow Out) and with AC or DC power supplies.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
Especificaciones técnicas
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| I/O Expansions | |
| Expansion Slot Type | QSFP28 |
| SFP+ | |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 130 |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot |
| 128 x 100 Gigabit Ethernet Expansion Slot | |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 2023 W |
| Number of Power Supplies Supported | 2 |
| Redundant Power Supply Supported | Yes |
| Media & Performance | |
| Network Technology | 10GBase-X |
| 100GBase-X | |
| Ethernet Technology | 10 Gigabit Ethernet |
| 100 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Miscellaneous | |
| Application/Usage | Network |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Restriction of Hazardous Substances (RoHS) 2 | |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 6.88" (174.75 mm) |
| Width | 17.26" (438.40 mm) |
| Depth | 29" (736.60 mm) |
| Compatible Rack Unit | 4U |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | QFX5220-128C-AO-T |
| Manufacturer Website Address | http://www.juniper.net |
| Manufacturer | Juniper Networks, Inc |
| Product Model | QFX5220-128C |
| Product Name | QFX5220-128C Ethernet Switch |
| Product Series | QFX5200 |
| Brand Name | Juniper |
