Acerca del producto

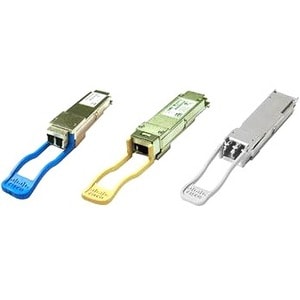

The Cisco QSFP-4X10G-LR-S QSFP module supports link lengths of up to 10km on G.652 single-mode fiber (SMF). It enables high-bandwidth 40G optical links over 12-fiber parallel fiber terminated with MPO/MTP multifiber female connectors. It can also be used in a 4x10G mode for interoperability with 10GBASE-LR interfaces up to 10km.
The 4x10G connectivity is achieved using an external 12-fiber parallel to 2-fiber duplex breakout cable, which connects the 4x10G LR module to four 10GBASE-LR optical interfaces. Cisco's QSFP-4X10G-LR-S is optimized to guarantee interoperability over the full specification range of 10GBASE-LR in 4x10G mode. QSFP-4X10G-LR-S does not support FCoE.
Especificaciones técnicas
| Miscellaneous | |
| Compatibility | Cisco Router Series:
|
| Technical Information | |
| Application/Usage | Optical Network |
| Data Networking | |
| Interfaces/Ports | |
| Interfaces/Ports Details | 1 x MPO/MTP 40GBase-LR Network |
| Connector Type | MPO/MTP |
| Total Number of Ports | 1 |
| Media & Performance | |
| Network Technology | 40GBase-LR |
| Ethernet Technology | 40 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Physical Characteristics | |
| Weight (Approximate) | 3.53 oz (100 g) |
| Form Factor | Hot-swappable |
| Height | 0.53" (13.50 mm) |
| Width | 0.72" (18.40 mm) |
| Depth | 2.85" (72.40 mm) |
| General Information | |
| Product Type | QSFP |
| Manufacturer Part Number | QSFP-4X10G-LR-S= |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | 4x10GBASE-LR QSFP Modules for SMF |
| Brand Name | Cisco |
