StarTech.com Módulo MSA QSFP+ sin codificar - 40GBASE
StarTech.com Módulo MSA QSFP+ sin codificar - 40GBASE
- TRANSCEPTOR QSFP+ 100 % MSA SIN CODIFICAR: diseñado, programado y probado para funcionar con conmutadores y enrutadores compatibles con MSA para brindar una conectividad confiable de 40 GbE
- ESPECIFICACIONES TÉCNICAS: 40GBASE-LR4 | 40 Gbps | Monomodo (SMF) | Conector LC | 1270 nm a 1330 nm | Monitoreo de Diagnóstico Digital (DDM) | Distancias de hasta 10 km (6,2 mi)
- PROBADO PARA COMPATIBILIDAD: Intercambiable en caliente en enrutadores y conmutadores compatibles con MSA; la compatibilidad con DDM informa el estado del transceptor a la mayoría de las herramientas de administración de red SNMP.
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles



Recently Viewed
StarTech.com Módulo MSA QSFP+ sin codificar - 40GBASE
Resumen de información del producto

Acerca del producto

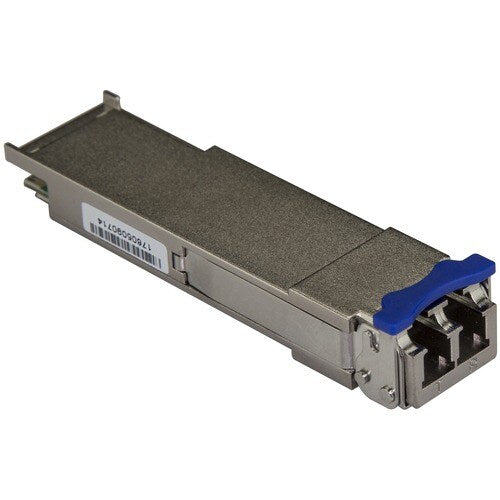

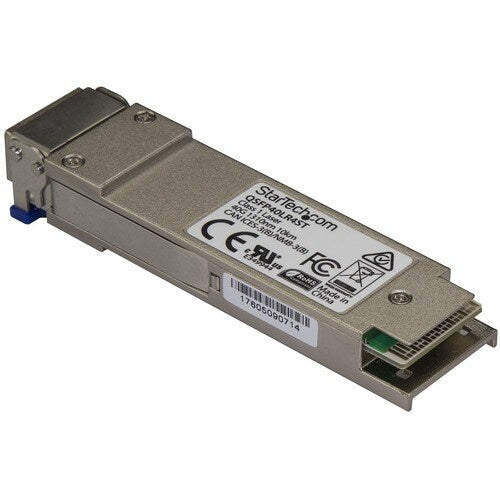

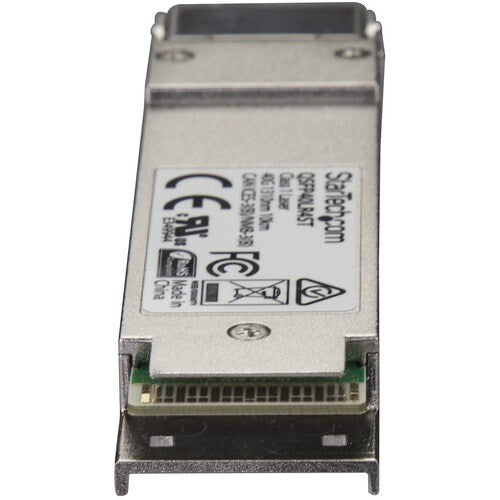

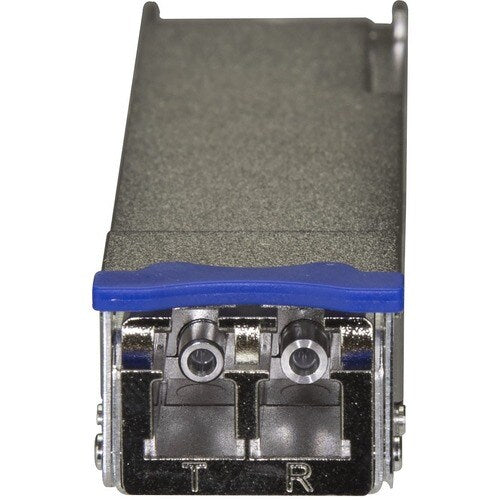

The QSFP40LR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-LR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 40 GbE connectivity over fiber cabling.
Technical Specifications:
- Wavelength: 1270nm to 1330nm
- Maximum Data Transfer Rate: 40 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 1,489,426 hours
- Power Consumption: Less than 2.5 Watts
- DDM: Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
- 100% MSA UNCODED QSFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 40GbE connectivity
- TECHNICAL SPECS: 40GBASE-LR4 | 40Gbps | Single Mode (SMF) | LC Connector | 1270nm to 1330nm | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi)
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches; DDM support reports the transceiver's status to most SNMP network management tools.
- LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself and not the life of your switch; our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
Especificaciones técnicas
Technical Information | |
Application/Usage | Data Networking |
Optical Network | |
Interfaces/Ports | |
Interfaces/Ports Details | 1 x LC Duplex 40GBase-LR4 Network |
Connector Type | LC |
Total Number of Ports | 1 |
Media & Performance | |
Network Technology | 40GBase-LR4 |
Ethernet Technology | 40 Gigabit Ethernet |
Media Type Supported | Optical Fiber |
Fiber Mode Supported | Single-mode |
Physical Characteristics | |
Weight (Approximate) | 1.40 oz (39.69 g) |
Form Factor | Hot-swappable |
Height | 0.50" (12.70 mm) |
Width | 0.70" (17.78 mm) |
Depth | 2.80" (71.12 mm) |
Miscellaneous | |
Compatibility | MSA Compliant |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Waste Electrical and Electronic Equipment Directive (WEEE) | |
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
General Information | |
Product Type | QSFP+ |
Manufacturer Part Number | QSFP40LR4ST |
Manufacturer Website Address | http://www.startech.com |
Packaged Quantity | 1 Each |
Manufacturer | StarTech.com |
Product Name | QSFP+ Module |
Brand Name | StarTech.com |
