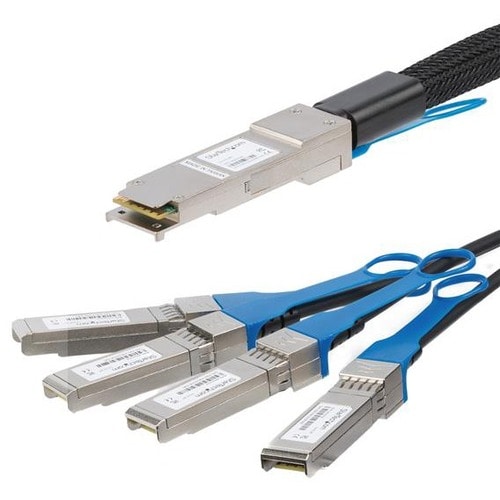

The QSFP4SFPPC3M is an MSA Compliant QSFP+ direct-attach Twinax breakout cable. It is designed, programmed and tested to bridge 40G network equipment with 10G compatible servers or routers. This passive Twin axial cable connects a single QSFP+ port to four 10G SFP+ ports and is fully hot-pluggable making upgrades and replacements seamless by minimizing network disruptions.

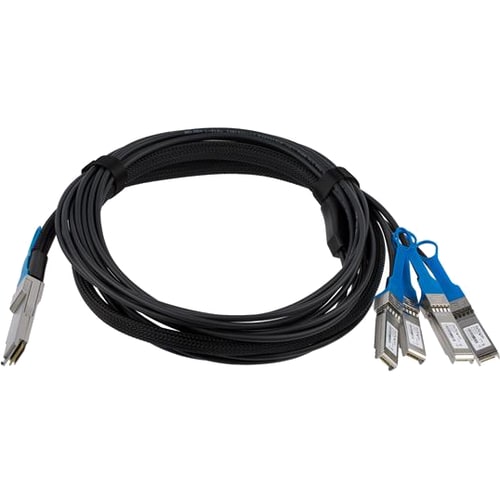

At 3 meters long and designed for short-length, high-speed interconnects, this low-power, low-latency copper QSFP+ cable also uses a cost-effective cabling alternative to fiber-optic assemblies. It supports short-distance applications such as point-to-point in-rack and across-rack network switch or server connections, for up to four 10G SFP+ devices.
StarTech.com SFP CablesAll StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
- MSA UNCODED QSFP+ CABLE (DAC): 40Gb direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules
- TECHNICAL SPECS: 3m (9.8ft) | 40 Gbps | Passive Twinax (Copper) | 1x QSFP+ to 4x SFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG Wire Gauge | PVC Cable Jacket | Hot swappable | MSA Compliant
- DESIGNED FOR SERVER ROOMS: This DAC is a cost-effective copper alternative to fiber cable inside & between racks; factory termination means high performance & reliability with less maintenance.
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24.
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
Especificaciones técnicas
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | QSFP4SFPPC3M |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Twinaxial Network Cable |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 1.04 lb (471.74 g) |
| Weight (Approximate) | 1.01 lb (456 g) |
| Shipping Height | 1.18" (29.97 mm) |
| Shipping Width | 9.65" (245.11 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Copper |
| Technical Information | |
| Cable Length | 9.8 ft (3 m) |
| Data Transfer Rate | 40 Gbit/s |
| Device Supported | Transceiver |
| Router | |
| Server | |
| Network Device | |
| Switch | |
| Features | Passive |
| Hot-swappable | |
| Cable Type | Twinaxial |
| Connector Type on First End | QSFP+ Network - Male |
| Connector Type on Second End | SFP+ Network - Male |
| American Wire Gauge | 30 AWG |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector on Second End Details | 4 x SFP+ Network - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
