Alula / Helix Connect+ Wireless Tilt Sensor Overview

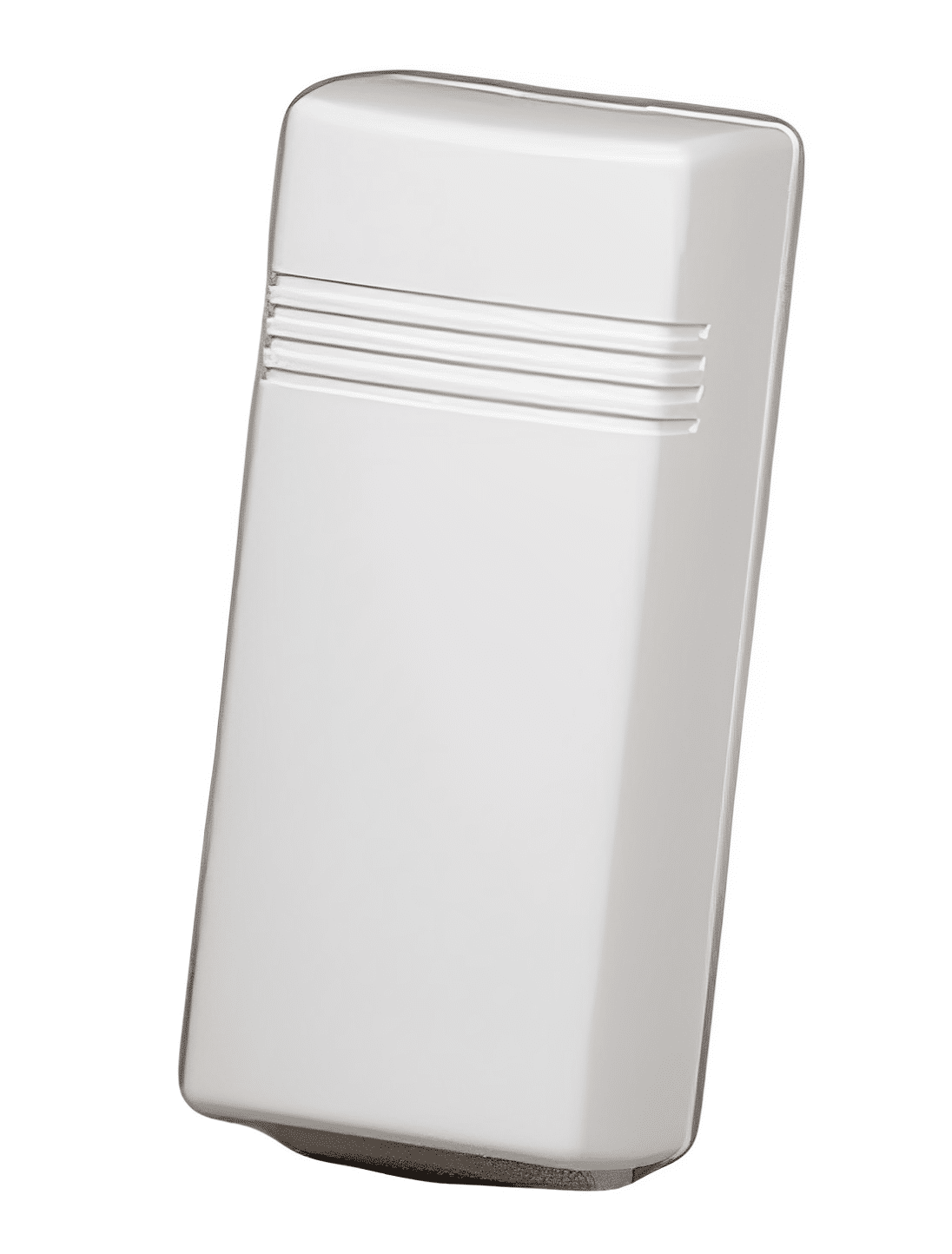

RE606M Tilt Sensor is a full-featured security transmitter typically used to sense the tilt of overhead garage doors and windows. It will alarm when the sensor is tilted more than 45°.
Enroll by placing the panel into wireless enrollment mode and then sending an enrollment signal from the sensor. Alternatively, the sensor can be enrolled by scanning its bar code using the Connect+ Installer App or by entering its 8-character serial number in the AlulaConnect™ portal.
- Sending an Enrollment Signal
- Remove the battery tab or trip the tamper
Tilt Detection occurs when the sensor exceeds a 45-degree angle. If the sensor rotates further than 135°, it is likely to remain in a non-alarm state. For best results, the sensor should rotate within 90 degrees to ensure an alarm state occurs.
- Tip
- 3M VHB Tape works great for mounting if the surface is properly prepared and firm pressure is applied for over 10 seconds
- Surface Preparation
- Clean the surface
- Ensure the mounting surface temperature is above 50 °F
Alula / Helix Connect+ Wireless Tilt Sensor Specifications
- Physical
- Housing Dimensions: 3.25 x 1.40 x 1.05 inches (8.3 x 3.6 x 2.7 cm)
- Weight with Battery: 1.90 ounces (54 grams)
- Mounting Fastener: #4 or #6 screws (not provided)
- Cover-Securing Screw(optional, not provided): Pan Head, #1 x .25 inches, A/AB Thread Forming (sheet metal) screw, McMaster 90190A051
- Environmental
- Operating Temperature: 0 to 120 °F (-18 to 49 °C)
- Maximum Humidity: 85% non-condensing relative humidity
- Sensor Specifications
- Frequency: 433.92 MHz
- Replacement Battery: One Panasonic CR123A
- Battery Life: 10 to 15 years
- Battery Voltage: 3.0 VDC (Nominal), 2.2 VDC (Low)
- Current Draw: 20 mA (Maximum), 0.6 uA (Quiescent)
- Transmitted Indications: Cover Tamper, Low Battery, Supervision
- Certification
- RE606M: FCC, IC
Especificaciones técnicas
Alula / Helix Connect+ Wireless Tilt Sensor Overview
RE606M Tilt Sensor is a full-featured security transmitter typically used to sense the tilt of overhead garage doors and windows. It will alarm when the sensor is tilted more than 45°.
Enroll by placing the panel into wireless enrollment mode and then sending an enrollment signal from the sensor. Alternatively, the sensor can be enrolled by scanning its bar code using the Connect+ Installer App or by entering its 8-character serial number in the AlulaConnect™ portal.
- Sending an Enrollment Signal
- Remove the battery tab or trip the tamper
Tilt Detection occurs when the sensor exceeds a 45-degree angle. If the sensor rotates further than 135°, it is likely to remain in a non-alarm state. For best results, the sensor should rotate within 90 degrees to ensure an alarm state occurs.
- Tip
- 3M VHB Tape works great for mounting if the surface is properly prepared and firm pressure is applied for over 10 seconds
- Surface Preparation
- Clean the surface
- Ensure the mounting surface temperature is above 50 °F
Alula / Helix Connect+ Wireless Tilt Sensor Specifications
- Physical
- Housing Dimensions: 3.25 x 1.40 x 1.05 inches (8.3 x 3.6 x 2.7 cm)
- Weight with Battery: 1.90 ounces (54 grams)
- Mounting Fastener: #4 or #6 screws (not provided)
- Cover-Securing Screw(optional, not provided): Pan Head, #1 x .25 inches, A/AB Thread Forming (sheet metal) screw, McMaster 90190A051
- Environmental
- Operating Temperature: 0 to 120 °F (-18 to 49 °C)
- Maximum Humidity: 85% non-condensing relative humidity
- Sensor Specifications
- Frequency: 433.92 MHz
- Replacement Battery: One Panasonic CR123A
- Battery Life: 10 to 15 years
- Battery Voltage: 3.0 VDC (Nominal), 2.2 VDC (Low)
- Current Draw: 20 mA (Maximum), 0.6 uA (Quiescent)
- Transmitted Indications: Cover Tamper, Low Battery, Supervision
- Certification
- RE606M: FCC, IC
