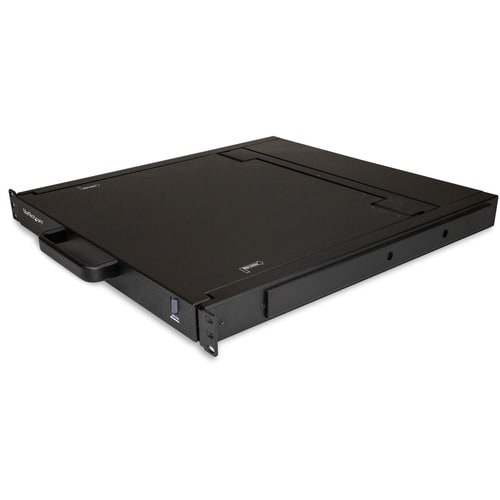

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution

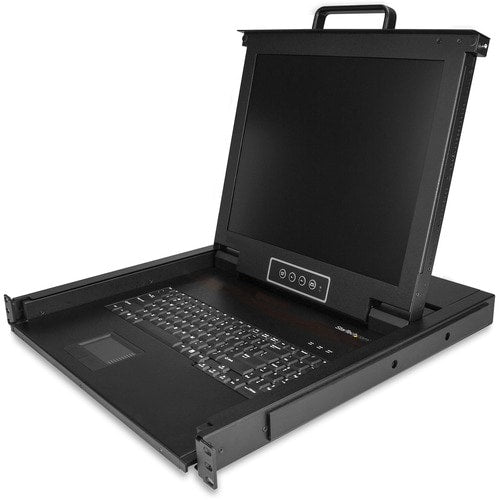

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

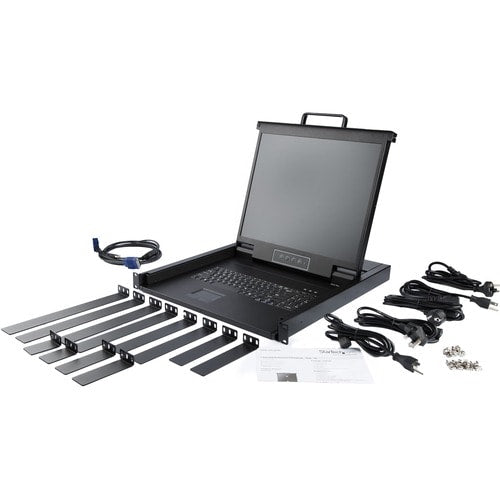

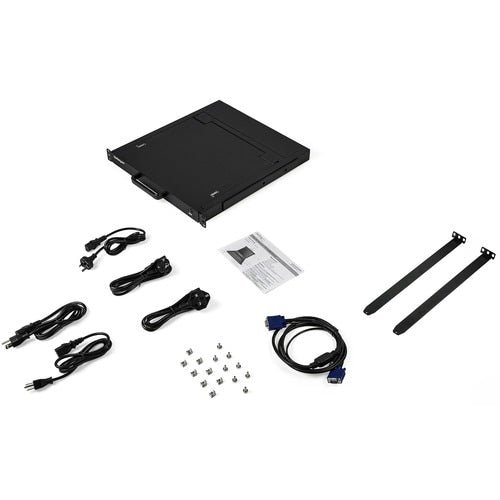

This single-port KVM console includes everything you need to set up right out of the box:
- 1 VGA KVM Cable
- Mounting Rails
- M5 Cage Nuts and Screws
Simple System Integration

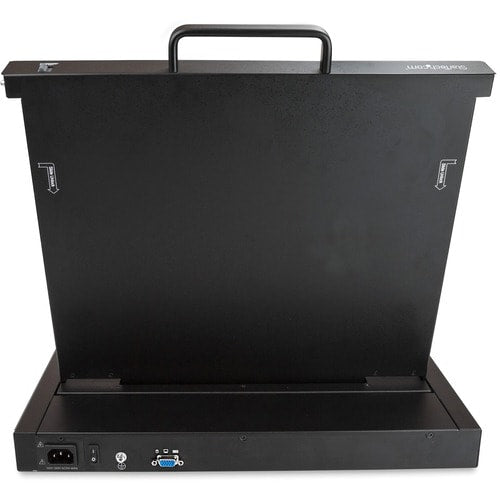

The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer

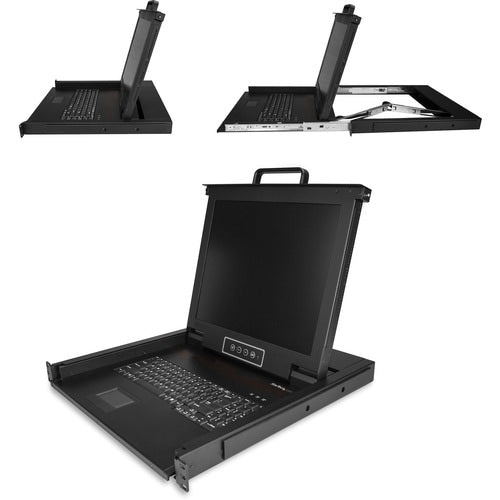

- FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD| 1U height | 99 key full keyboard with numeric keypad + Trackpad | Supports VGA and USB | Integrated Power Supply
- MAX DURABILITY: Features durable steel housing design and rails that withstand frequent use, rated to work in environments from 0 to 40 deg. C and a 50,000 hour MTBF
- TESTED AND PROVEN: Our KVM consoles are backed by a 2 year warranty with 24/5 by multi-lingual tech support based in North America with free technical support for the life of the product
- KVM Collection: Can be purchased with integrated 8-port (RKCONS1708K) or 16-port (RKCONS1716K) KVM or use with StarTech.com enterprise KVM switches: SV831DUSB, SV831DUSBUK, SV1631DUSBU, SV1631DUSBUK.
Especificaciones técnicas
| Input Devices | |
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Technical Information | |
| KVM Switch | No |
| Number of Computers Supported | 1 |
| Device Type | LCD Rack Console |
| Display & Graphics | |
| Screen Resolution | 1280 x 1024 |
| Screen Size | 17" |
| Screen Mode | SXGA |
| Display Screen Type | LCD |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Input Current | 1.50 A |
| Power Consumption | 13 W |
| Input Voltage Range | 100V AC to 240V AC |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | LCD Rack Console |
| Manufacturer Part Number | RKCONS1701 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Single-Port Rackmount KVM Console with 17" Display |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Weight (Approximate) | 25.90 lb (11748.04 g) |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.60" (447.04 mm) |
| Depth | 18.50" (469.90 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
