Acerca del producto

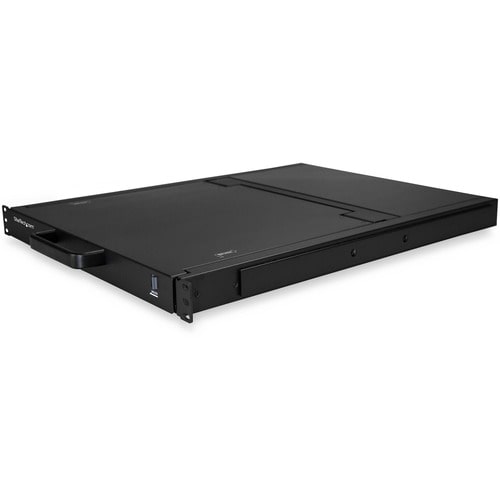

Providing centralized control of up to 16 servers, this 16-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution

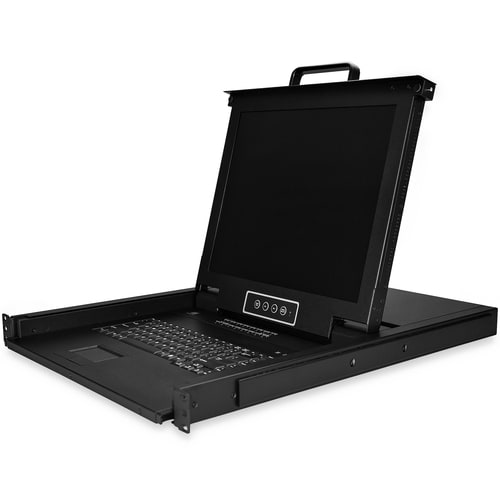

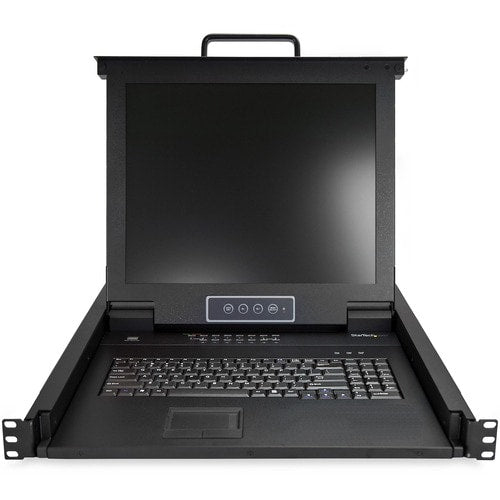

The 1U rackmount console features a built-in keyboard, and a touchpad for intuitive control, as well as a 17-inch LCD display that supports resolutions up to 1280x1024.
This 16-port KVM console comes with everything you need to set up right out of the box:
- 16 VGA KVM Cables
- Mounting Rails
- M5 Cage Nuts and Screws
Simple System Integration
With direct access to 16 systems or servers, the 16-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1716K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer

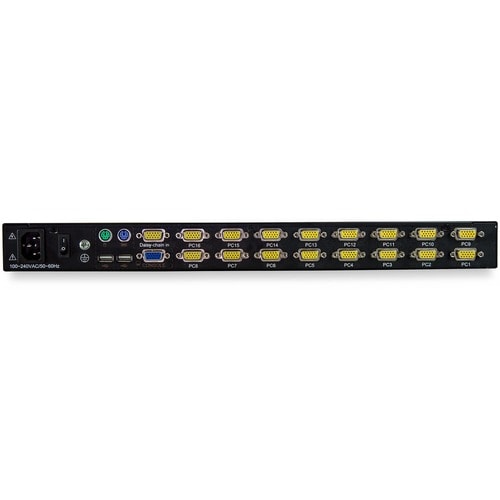

- TECH SPECIFICATIONS: Rackmount KVM Console, 17" Active Matrix TFT LCD Monitor, 1280 x 1024, 16 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
- PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan

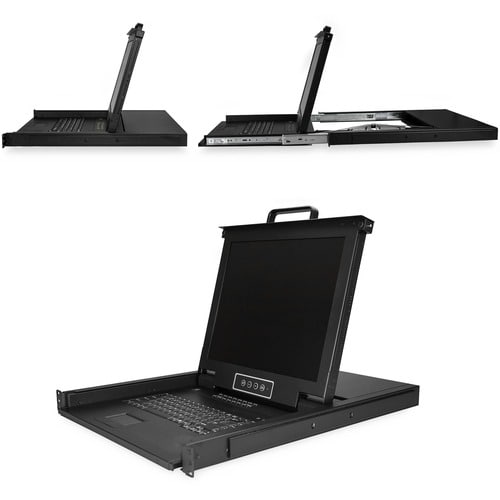

- INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 22" [56 cm] to 35" [90 cm] (incl. mounting hardware)
- HEAVY DUTY: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50,000 hours
- TESTED & PROVEN: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual technical support
Especificaciones técnicas
| Input Devices | |
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| Technical Information | |
| KVM Switch | Yes |
| Number of Computers Supported | 16 |
| Device Type | LCD Rack Console |
| Display & Graphics | |
| Screen Resolution | 1280 x 1024 |
| Screen Size | 17" |
| Screen Mode | SXGA |
| Display Screen Type | LCD |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Consumption | 23 W |
| Input Voltage Range | 100V AC to 240V AC |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | LCD Rack Console |
| Manufacturer Part Number | RKCONS1716K |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 16-Port Rackmount KVM Console with 17" Display |
| Brand Name | StarTech.com |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of USB Ports | 2 |
| Proprietary Interface | Yes |
| PS/2 Port | Yes |
| Number of PS/2 Ports | 2 |
| Number of VGA Ports | 1 |
| Number of Proprietary Ports | 16 |
| Physical Characteristics | |
| Weight (Approximate) | 30.30 lb (13743.85 g) |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 17.60" (447.04 mm) |
| Depth | 22.90" (581.66 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
