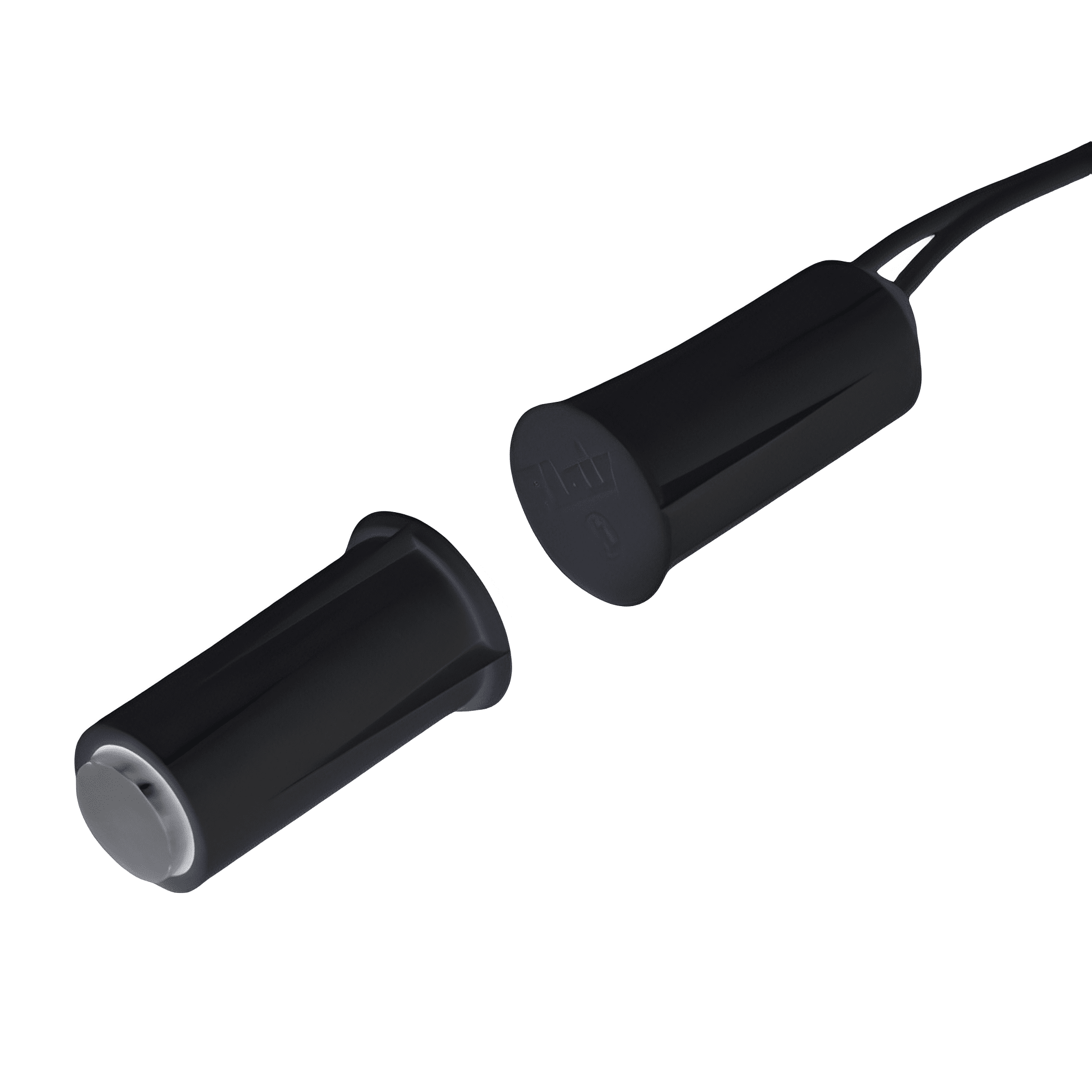

Flair Recessed Magnetic Contacts come standard in NC, NO, SPDT, and SPDT electrical configurations. Standard wide gap is 3? and several mounting options include floor or rail bracket.
Flair RMS94-2 Recessed Magnetic Contact Features:
- 3/8” Dia. Recessed Magnetic Contact
- 12” #22 AWG Wire Leads
- Rare Earth Magnet
- Self Locking in Wood
- E.O.L. Resistors, Diodes and Supervisory Loops Available
- Contacts and Magnets Available Separately
- Colors: White
- Lifetime Warranty
- Safety Approvals
Flair RMS94-2 Recessed Magnetic Contact Specifications:
- Electrical Rating: RMS 94-2: Maximum 100 VDC, 50 ma., 10 W; RMS93-2 and RMS95-2: Maximum 30 VDC, 20 ma., 3 W
- Gap: 1/2? – 3/4?
- Lead Length: 12? Wire Leads
- Loop Type (with magnet present): RMS94-2: Normally Closed, RMS93-2: Normally Open, RMS95-2: SPDT
- Size: 3/8? Dia. x 3/4? Long
Especificaciones técnicas
Flair Recessed Magnetic Contacts come standard in NC, NO, SPDT, and SPDT electrical configurations. Standard wide gap is 3? and several mounting options include floor or rail bracket.
Flair RMS94-2 Recessed Magnetic Contact Features:
- 3/8” Dia. Recessed Magnetic Contact
- 12” #22 AWG Wire Leads
- Rare Earth Magnet
- Self Locking in Wood
- E.O.L. Resistors, Diodes and Supervisory Loops Available
- Contacts and Magnets Available Separately
- Colors: White
- Lifetime Warranty
- Safety Approvals
Flair RMS94-2 Recessed Magnetic Contact Specifications:
- Electrical Rating: RMS 94-2: Maximum 100 VDC, 50 ma., 10 W; RMS93-2 and RMS95-2: Maximum 30 VDC, 20 ma., 3 W
- Gap: 1/2? – 3/4?
- Lead Length: 12? Wire Leads
- Loop Type (with magnet present): RMS94-2: Normally Closed, RMS93-2: Normally Open, RMS95-2: SPDT
- Size: 3/8? Dia. x 3/4? Long
