Acerca del producto
ASUS NUC 14 Pro Barebone Kit is an ultracompact computer built for a variety of home, business, and AI applications. Featuring the latest 14th Generation Core Ultra processor, integrated graphics, and high-speed DDR5 memory support, this mini-PC not only delivers robust computing capabilities, but also debuts toolless chassis access for fast, easy upgrades.
Especificaciones técnicas
| General | |
| Processor: | Intel Core Ultra 7 1.4GHz Smart Cache 165H Cache Memory 24MB Max Turbo 5GHz |
| RAM: | SODIMM DDR5 5600MHz Max Supported 48GB*2GB |
| Primary Information | |
| System Type: | AI PC |
| Model: | ASUS NUC 14 Pro Tall Barebone Kit |
| Cabinet Form Factor: | NUC |
| Processor / Generation: | Intel 14th Generation |
| Processor / Type: | Core Ultra 7 |
| Processor / Manufacturer: | Intel |
| Multi-Core Technology: | 16-Core |
| Processor / Clock Speed: | 1.4 GHz |
| Cache Memory Installed Size: | 24 MB |
| Max Turbo Frequency: | 5 GHz |
| Processor / Number: | 165H |
| Processor / Installed Qty: | 1 |
| Processor / Max Supported Qty: | 1 |
| Neural Processor Unit (NPU): | Intel AI Boost |
| Cache Memory Installed Size: | 24 MB |
| RAM / Technology: | DDR5 |
| RAM / Total Slots Qty: | 2 |
| RAM / Memory Speed: | 5600 MHz |
| RAM Form Factor: | SODIMM |
| RAM / Max Supported Size: | 48GB*2 GB |
| Storage Controller Type: | M.2 |
| Optical Storage Type: | None |
| Storage Controller Type: | M.2 |
| Data Link Protocol: | Gigabit Ethernet; Wi-Fi, Bluetooth 5.3 |
| Network Controller: | Intel Wi-Fi 6E |
| Graphics Controller: | Intel Arc Graphic |
| Video Memory / Technology: | None |
| Video Memory / Installed Size: | None GB |
| Video Output Interface: | HDMI |
| Speakers: | None |
| Keyboard: | n/a |
| Mouse: | n/a |
| Operating System: | None |
| Power / Device Type: | Power Adapter |
| Power / Provided (W): | 120 Watt |
| Interfaces & Connections: | 1 x Kensington Lock Slot |

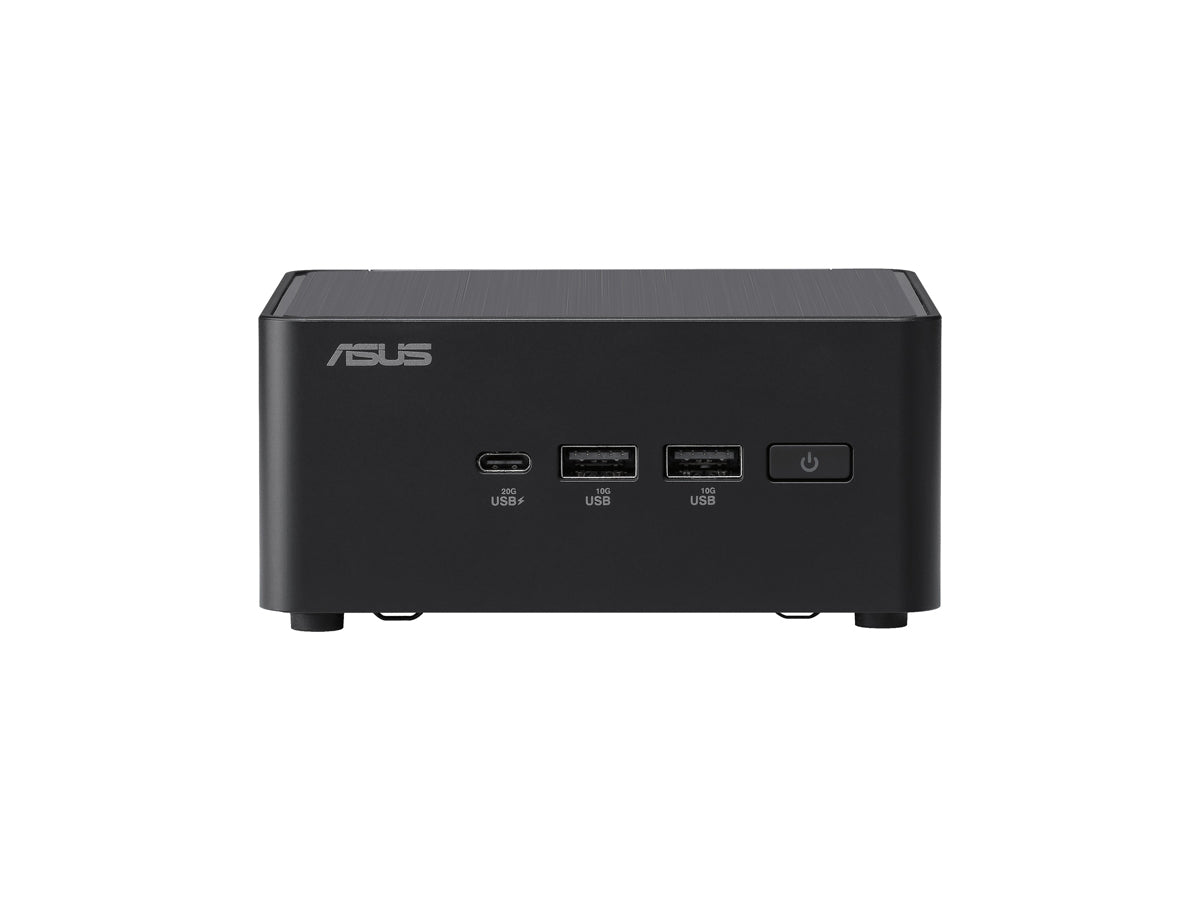

| Front I/O Ports: | 1 x USB 3.2 Gen2x2 Type-C2 x USB 3.2 Gen2 Type-A |

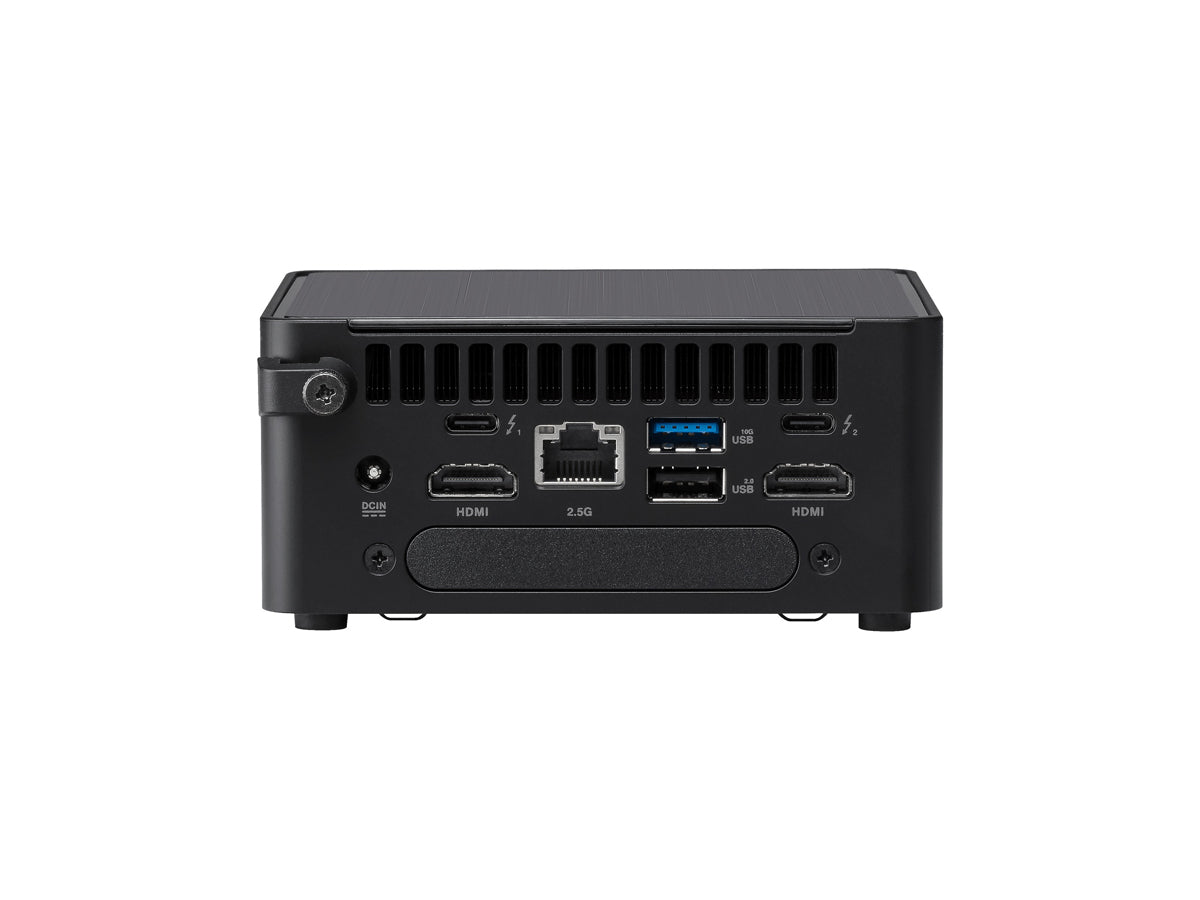

| Rear I/O Ports: | 2 x Thunderbolt 4 (DP2.1 & USB4)1 x USB 3.2 Gen2 Type-A1 x USB 2.0 Type-A2 x HDMI 2.11 x Intel 2.5G LAN (RJ45)1 x Cable Locking Arm1 x DC-in |
| Width: | 4.61 Inch |
| Depth: | 4.41 Inch |
| Height: | 37 Inch |
| Weight: | 1.36 lbs. |
| Enclosure Color: | Black |
| Service & Support Type: | 3-year Warranty |
| Memory | |
| Cache Memory Type: | Smart Cache |
| RAM / Total Slots Qty: | 2 |
| RAM / Technology: | DDR5 |
| RAM / Memory Speed: | 5600 MHz |
| RAM Form Factor: | SODIMM |
| RAM / Max Supported Size: | 48GB*2 GB |
| Processor | |
| Processor / Generation: | Intel 14th Generation |
| Processor / Type: | Core Ultra 7 |
| Processor / Manufacturer: | Intel |
| Multi-Core Technology: | 16-Core |
| Processor / Clock Speed: | 1.4 GHz |
| Max Turbo Frequency: | 5 GHz |
| Processor / Number: | 165H |
| Processor / Installed Qty: | 1 |
| Processor / Max Supported Qty: | 1 |
| Cache Memory Type: | Smart Cache |
| Cache Memory Installed Size: | 24 MB |
| Neural Processor Unit (NPU): | Intel AI Boost |
| Storage | |
| Optical Storage Type: | None |
| Storage Controller Type: | M.2 |
| Expansion | |
| Interfaces & Connections: | 1 x Kensington Lock Slot |
| Front I/O Ports: | 1 x USB 3.2 Gen2x2 Type-C2 x USB 3.2 Gen2 Type-A |
| Rear I/O Ports: | 2 x Thunderbolt 4 (DP2.1 & USB4)1 x USB 3.2 Gen2 Type-A1 x USB 2.0 Type-A2 x HDMI 2.11 x Intel 2.5G LAN (RJ45)1 x Cable Locking Arm1 x DC-in |
| I/O | |
| Keyboard: | n/a |
| Mouse: | n/a |
