Advantech
I MX6 QC 800 MHz 2 GB DRAM -40 a 85 °C
I MX6 QC 800 MHz 2 GB DRAM -40 a 85 °C
VPN:ROM-5420WQ-MEB1E SKU:570192NDN UPC:
- Procesador de alto rendimiento Freescale ARM Cortex™-A9 i.MX6 Quad de 800 MHz
- Memoria DDR3 integrada de 2 GB
- RGB paralelo, HDMI, LVDS de 24 bits
Bloque de texto
No se pudo cargar la disponibilidad de retiro
Descuento por volumen disponible: solicite cotización.
Ver todos los detalles
Recently Viewed
I MX6 QC 800 MHz 2 GB DRAM -40 a 85 °C
Resumen de información del producto

Acerca del producto

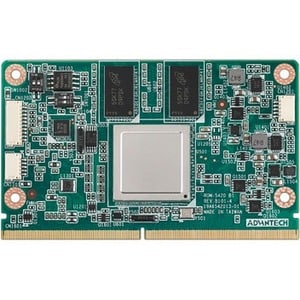

ROM-5420 series SMARC module integrated NXP i.MX6 Cortex-A9 SoC. The powerful i.MX6 SoC supports 2D/3D graphics accelerators, full HD 1080p encode/decode hardware engine and up to 4 independent display outputs. ROM-5420 supports a unique feature of security protection to protect users image from illegal copy. The camera input and power input 3V~5.25V make it easier to design a portable application. ROM-5420 SMARC module also supports Advantech evaluation carrier board ROM-DB5900 for easy integration and hardware design reference. The Linux and Android BSP, test utilities and reference codes not only help you develop a new application quickly and also speed up your device integration.
- Freescale ARM Cortex™-A9 i.MX6 Quad 800 MHz high performance processor
- Onboard DDR3 memory 2 GB
- Parallel RGB, HDMI, 24bit LVDS
- Supports 4GB eMMC flash, 1 SD/MMC, 1 SATA
- 2 CAN, 4 UART, 5 I2C, 12 GPIO, 1 PCIe, 1 camera input and 1 Gigabyte LAN
- Supports OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators
- Supports full HD hardware encode/decode engine
- Optional thermal solution
Especificaciones técnicas
Miscellaneous | |
Country of Origin | Taiwan |
Network & Communication | |
Ethernet Technology | Gigabit Ethernet |
Storage | |
Flash Memory Capacity | 8 GB |
Memory | |
Standard Memory | 2 GB |
Memory Technology | DDR3 SDRAM |
Interfaces/Ports | |
HDMI | Yes |
Network (RJ-45) | Yes |
Total Number of USB Ports | 2 |
Number of USB 2.0 Ports | 2 |
Processor & Chipset | |
Processor Speed | 800 MHz |
Processor Type | Cortex A9 |
Processor Core | Quad-core (4 Core) |
Chipset Manufacturer | NXP |
Chipset Model | i.MX6 |
General Information | |
Product Type | Single Board Computer |
Manufacturer Part Number | ROM-5420WQ-MEB1E |
Manufacturer Website Address | http://www.advantech.com |
Manufacturer | Advantech Co., Ltd |
Product Model | ROM-5420 B1 |
Product Name | ROM-5420 B1 Single Board Computer |
Brand Name | Advantech |
