Acerca del producto

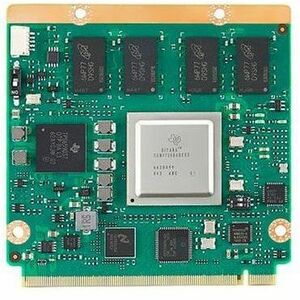

ROM-7510 Qseven Module integrates ARM Cortex-A15 TI AM5728 high performance SoC and I/O solution chips to be Linux support ready. TI AM5728 is provided by dual-core ARM Cortex-A15 RISC CPUs with Neon™ extension, and two TI C66x VLIW loating-point DSP cores. The ARM allows developers to keep control functions separate from other algorithms programmed on the DSPs and coprocessors, thus reducing the complexity of the system software.
ROM-7510 has Advantech ROM-DB7502 Evaluation Carrier Board for easy integration and design reference; we also offer referenced schematics and layout checklists for carrier board development. Additionally, Linux BSP, test utilities, HW design utilities and reference codes are ready for application development and device integration.
Especificaciones técnicas
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Maximum Power Consumption | 10 W |
| Software | |
| Operating System | Linux |
| Storage | |
| Flash Memory Capacity | 8 GB |
| Memory | |
| Standard Memory | 2 GB |
| Memory Technology | DDR3 SDRAM |
| Physical Characteristics | |
| Form Factor | Module |
| Width | 2.76" (70 mm) |
| Depth | 2.76" (70 mm) |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 5 |
| Number of USB 3.0 Ports | 1 |
| Processor & Chipset | |
| Processor Speed | 1.50 GHz |
| Processor Type | Cortex A15 |
| Processor Core | Dual-core (2 Core) |
| Chipset Manufacturer | Texas Instruments |
| Chipset Model | AM5728 |
| General Information | |
| Product Type | Single Board Computer |
| Manufacturer Part Number | ROM-7510WD-PEA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | ROM-7510WD-PEA1E |
| Product Name | ROM-7510WD-PEA1E Single Board Computer |
| Brand Name | Advantech |
