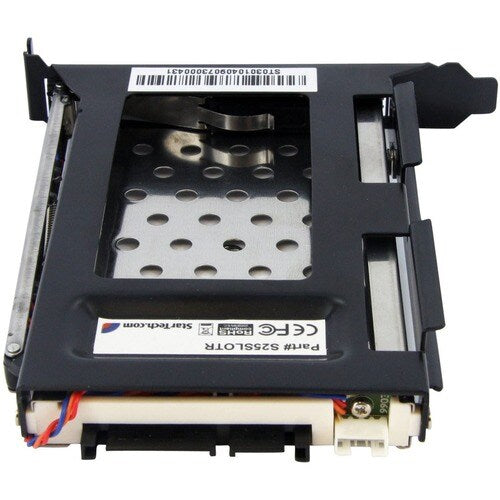

The S25SLOTR Trayless Hard Drive Rack can be installed into an available (full profile) PCI expansion card slot, providing easy access to a bare 2.5" SATA hard drive or solid state drive (SSD) from the rear panel of a computer case.
Unlike conventional hard drive enclosures, the S25SLOTR hard drive rack doesn't require that a drive be installed in a drive tray, saving the time and hassle involved in having to mount or install the hard drive for access to drive contents.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Once installed in a PCI slot (and accompanying rear panel bracket), installing a 2.5" SATA HDD is as simple as inserting it into the trayless rack. To remove the hard drive, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive.
More from the Manufacturer
- Fits a 2.5" SATA drive into a rear full profile expansion card slot
- Trayless design: drive is not mounted into a tray or enclosure
- Latching drive door
- 50,000+ insertion rating
- Vented aluminum and steel construction
- Door mounted Power/Activity LED indicator
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
- Plug-and-Play and Hot-Swap compatible
Especificaciones técnicas
| Controllers | |
| Controller Type | Serial ATA/600 |
| Network & Communication | |
| Wireless LAN | No |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| "Number of 2.5"" Bays" | 1 |
| Interfaces/Ports | |
| Host Interface | Serial ATA/600 |
| Drive Interface | SATA/600 |
| Technical Information | |
| Number of Hard Drives Supported | 1 |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Supported | 1 |
| Number of Solid State Drive Installed | No |
| General Information | |
| Product Type | Drive Slot Adapter |
| Manufacturer Part Number | S25SLOTR |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 2.5in SATA Removable HDD Bay for PC Slot |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 5.90 oz (167.26 g) |
| Form Factor | Internal |
| Height | 4.70" (119.38 mm) |
| Width | 0.80" (20.32 mm) |
| Depth | 5.70" (144.78 mm) |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
| Aluminum |
