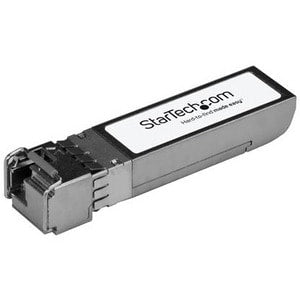

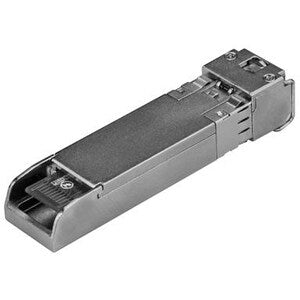

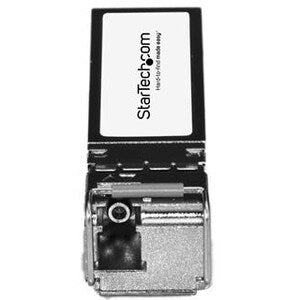

The SFP-10GB-BX-U-20-ST is a MSA Compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP-10GB-BX-D-20-ST. They are designed, programmed and tested to work with 10GBase-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 20 km (12.4 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
- Wavelength: 1270nmTx/1330nmRx
- Maximum Data Transfer Rate: 10Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 20 km (12.4 mi)
- Power Consumption: Low power consumption
- DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ Cables, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
- MSA UNCODED SFP+ TRANSCEIVER: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 10GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two.
- TECHNICAL SPECS: 10GBASE-BX
- 10Gbps
- 10G Bi-Directional Upstream
- Single Mode (SMF)
Especificaciones técnicas
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Technical Information | |
| Application/Usage | Optical Network |
| Data Networking | |
| Interfaces/Ports | |
| Interfaces/Ports Details | 1 x LC 10GBase-BX Network |
| Connector Type | LC |
| Total Number of Ports | 1 |
| Media & Performance | |
| Network Technology | 10GBase-BX |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| General Information | |
| Product Type | SFP+ |
| Manufacturer Part Number | SFP-10GB-BX-U-20-ST |
| Manufacturer Website Address | http://www.startech.com |
| Manufacturer | StarTech.com |
| Product Name | MSA Compliant SFP+ Transceiver Module - 10GBase-BX (Upstream) |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
