Acerca del producto

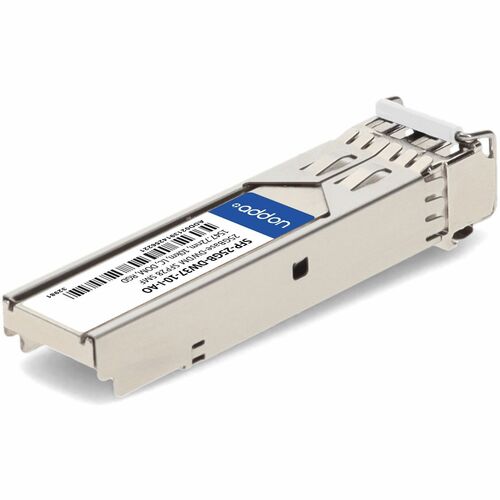

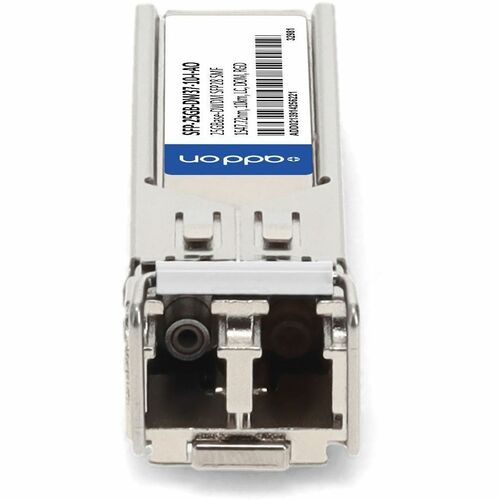

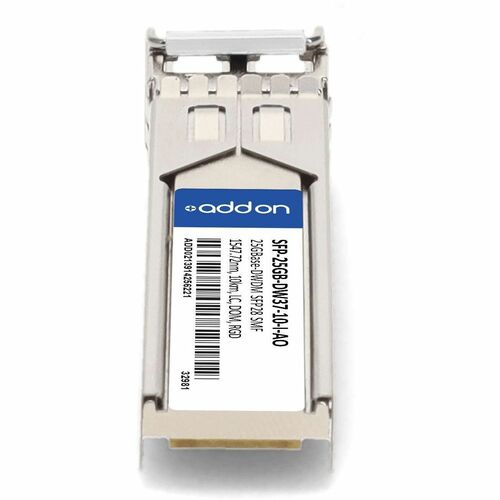

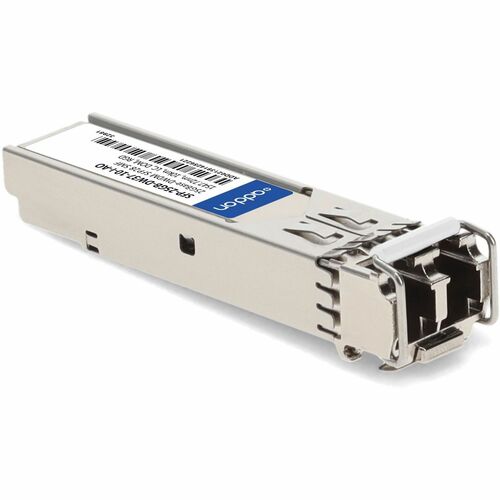

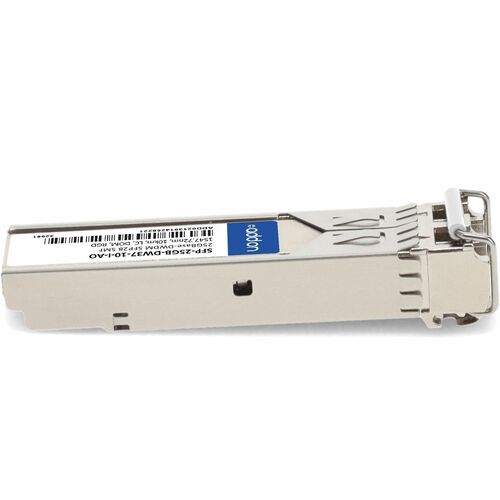

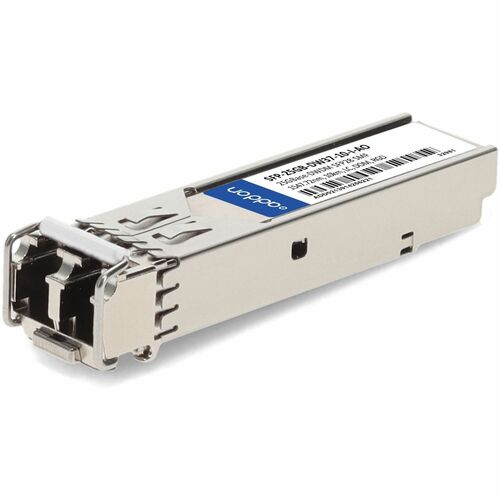

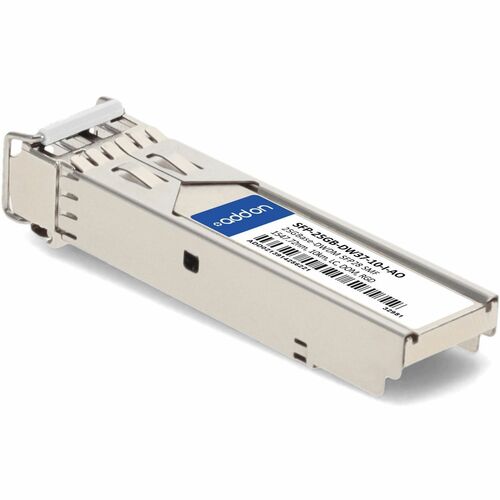

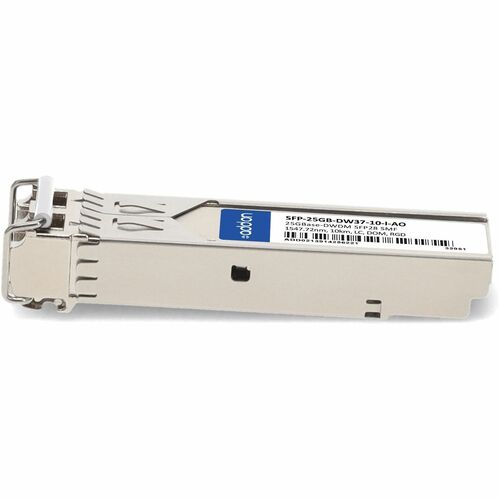

This MSA compliant SFP28 transceiver provides 25GBase-DWDM throughput up to 10km over single-mode fiber (SMF) using a wavelength of 1547.72nm via an LC connector. It is capable of withstanding rugged environments and can operate at temperatures between -40 and 85C. All of our transceivers are built to comply with Multi-Source Agreement (MSA) standards and are uniquely serialized and tested for data-traffic and application to ensure seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- Uses 25 Gigabit Ethernet technology to fulfill the high bandwidth requirement
Especificaciones técnicas
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 185°F (85°C) |
| Interfaces/Ports | |
| Interfaces/Ports Details | LC 25GBase-DWDM Network |
| Connector Type | LC |
| Total Number of Ports | 1 |
| Technical Information | |
| Application/Usage | Data Networking |
| Optical Network | |
| Features | Digital Optical Monitoring (DOM) |
| Physical Characteristics | |
| Weight (Approximate) | 3.20 oz (90.72 g) |
| Form Factor | Hot-pluggable |
| Height | 0.40" (10.16 mm) |
| Width | 1.20" (30.48 mm) |
| Depth | 2.60" (66.04 mm) |
| General Information | |
| Product Type | SFP28 |
| Manufacturer Part Number | SFP-25GBDW37-10-I-AO |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Packaged Quantity | 1 |
| Manufacturer | AddOn |
| Product Name | SFP28 Module |
| Brand Name | AddOn |
| Media & Performance | |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Network Technology | 25GBase-DWDM |
| Maximum Data Transfer Rate | 25 Gbit/s |
| Ethernet Technology | 25 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.06 mil (0 mm) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | United States/United Kingdom |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Restriction of Hazardous Substances (RoHS) 2 |
