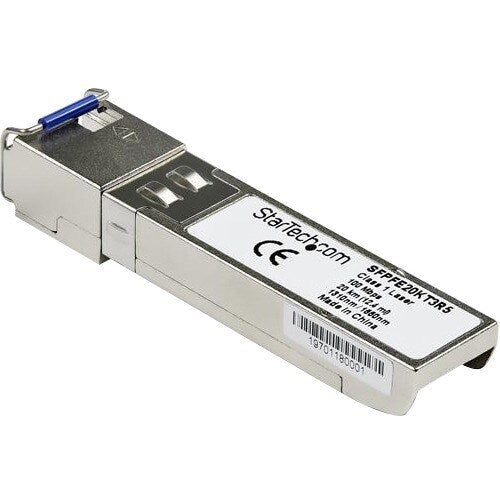

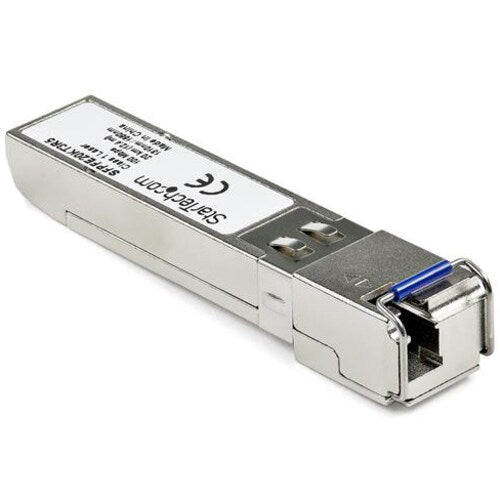

The SFPFE20KT3R5 is a Juniper SFP-GE10KT14R13 compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 100 MbE connectivity over fiber cable, for 100Base-BX10-U compliant networks, with a maximum distance of up to 20 km (12.4 mi).
Technical Specifications:
- Wavelength: 1310nmTx/1550nmRx
- Maximum Data Transfer Rate: 100 Mbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 20 km (12.4 mi)
- MTBF: 3,713,222 hours
- Power Consumption: Low power consumption
- Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
- 100% JUNIPER SFP-FE20KT13R15 COMPATIBLE: 100 Mb Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Juniper switches and routers to deliver dependable 100MbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
- TECHNICAL SPECS: 100BASE-BX-U
- 100Mbps
- 10G Bi-Directional Upstream
- Single Mode (SMF)
Especificaciones técnicas
| Technical Information | |
| Application/Usage | Optical Network |
| Data Networking | |
| Interfaces/Ports | |
| Interfaces/Ports Details | 1 x LC Duplex 100Base-BX10-U Network |
| Connector Type | LC |
| Total Number of Ports | 1 |
| Media & Performance | |
| Network Technology | 100Base-BX10-U |
| Ethernet Technology | Fast Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Physical Characteristics | |
| Weight (Approximate) | 2.54 oz (72 g) |
| Form Factor | Hot-swappable |
| Height | 0.47" (12 mm) |
| Width | 0.55" (14 mm) |
| Depth | 2.56" (65 mm) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | SFP |
| Manufacturer Part Number | SFPFE20KT3R5 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | Juniper SFP-FE20KT13R15 Compatible SFP Transceiver Module - 100Base-BX10-U |
| Brand Name | StarTech.com |
