Acerca del producto

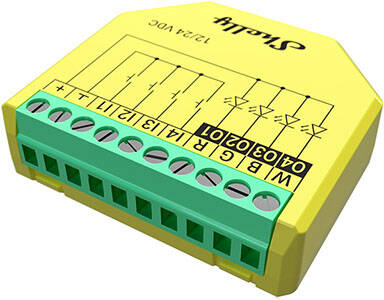

The Shelly Plus RGBW Plus Power Metering WiFi Controller for RGB/W LED Strips for effortless control and powering of LED strips, with full support for both RGB and RGBW light profiles. Supports any 12-24VDC White, RGB or RGBW LED strips with full-spectrum dimming and adjustable fade/taper transitions and trim control. Independent RGB and White control gives users the power to control brightness values selectively; providing greater control of colour and brightness combinations. Custom controlling like scripting, webhooks, geofencing, MQTT, WebSocket, HTTPS, UDP, TLS and other certificates allow users to create custom automations and integrations for complex installs-- for example, triggering lights and automations via 3rd party sensors and custom hardware.
Over-current protection and power monitoring give installers and users powerful insights into usage patterns and historical metering information; allowing users to create schedules and optimize electrical usage, saving money by automatically switching off LED strips when not in use or when users aren't home. Automatic wake-up and sleep routines create a seamless smart home experience with no app or direct control required. The Shelly App allows users to conveniently manage lights, review electrical metering info and set up custom routines, schedules, and more; all directly from your favourite mobile devices or networked computers via browser control.
Ideal for creating automatic night-lights, seasonal lighting systems like Halloween lighting can automatically switch over to Christmas lighting, smart-presence lighting systems, retail and commercial displays, art installations and events, and more! Works with Google Home and Amazon Alexa for direct voice control. Bluetooth connection requires a Shelly Bluetooth USB Gateway or Shelly Pro interface.
SHELLY-PLUS-RGBW-PM Specs and Features
- Size (HxWxD): 42x37x12 ±0.5 mm / 1.65x1.46x0.66 ±0.02 in
- Weight: 17 g / 0.60 oz
- Screw terminals max torque: 0.2 Nm / 1.8 lbin
- Conductor cross section: 0.1 to 1 mm² / 30 to 16 AWG (solid, stranded, and bootlace ferrules)
- Conductor stripped length: 6 mm / 0.24 in
- Mounting: In-wall
- Shell material: Plastic
- Shell color: Yellow
- Connectors color: Green
- Ambient working temperature: -20 °C to 40 °C / -5 °F to 105 °F
- Humidity: 30 % to 70 % RH
- Power supply: 12/24 VDC
- Power consumption: < 1.2 W
- Max. control voltage: 24 VDC
- Max. control current: 4 A per channel (10 A total)
- PWM frequency: 22 kHz
- Voltmeter: 0-24 V
- Voltmeter accuracy: ± 5%
- Ammeter: 0-10 A
- Ammeter accuracy: ± 10%
- Power and energy meters: Power measurement
- No load threshold: 0.5 VA per channel
- Internal-temperature sensor: Yes
- WiFi Protocol: 802.11 b/g/n
- RF band: 2401 - 2495 ?Hz
- Max. RF power: < 20 dBm
- Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
- Bluetooth Protocol: 4.2
- RF band: 2400 - 2483.5 MHz
- Max. RF power: < 4 dBm
- Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
- CPU: ESP-Shelly C38F
- Clock frequency: 160 Mhz
- RAM: 400 KB
- Flash: 4 MB
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- Scripting: Yes
- MQTT: Yes
- Scripting: Yes
Especificaciones técnicas
The Shelly Plus RGBW Plus Power Metering WiFi Controller for RGB/W LED Strips for effortless control and powering of LED strips, with full support for both RGB and RGBW light profiles. Supports any 12-24VDC White, RGB or RGBW LED strips with full-spectrum dimming and adjustable fade/taper transitions and trim control. Independent RGB and White control gives users the power to control brightness values selectively; providing greater control of colour and brightness combinations. Custom controlling like scripting, webhooks, geofencing, MQTT, WebSocket, HTTPS, UDP, TLS and other certificates allow users to create custom automations and integrations for complex installs-- for example, triggering lights and automations via 3rd party sensors and custom hardware.
Over-current protection and power monitoring give installers and users powerful insights into usage patterns and historical metering information; allowing users to create schedules and optimize electrical usage, saving money by automatically switching off LED strips when not in use or when users aren't home. Automatic wake-up and sleep routines create a seamless smart home experience with no app or direct control required. The Shelly App allows users to conveniently manage lights, review electrical metering info and set up custom routines, schedules, and more; all directly from your favourite mobile devices or networked computers via browser control.
Ideal for creating automatic night-lights, seasonal lighting systems like Halloween lighting can automatically switch over to Christmas lighting, smart-presence lighting systems, retail and commercial displays, art installations and events, and more! Works with Google Home and Amazon Alexa for direct voice control. Bluetooth connection requires a Shelly Bluetooth USB Gateway or Shelly Pro interface.
SHELLY-PLUS-RGBW-PM Specs and Features
- Size (HxWxD): 42x37x12 ±0.5 mm / 1.65x1.46x0.66 ±0.02 in
- Weight: 17 g / 0.60 oz
- Screw terminals max torque: 0.2 Nm / 1.8 lbin
- Conductor cross section: 0.1 to 1 mm² / 30 to 16 AWG (solid, stranded, and bootlace ferrules)
- Conductor stripped length: 6 mm / 0.24 in
- Mounting: In-wall
- Shell material: Plastic
- Shell color: Yellow
- Connectors color: Green
- Ambient working temperature: -20 °C to 40 °C / -5 °F to 105 °F
- Humidity: 30 % to 70 % RH
- Power supply: 12/24 VDC
- Power consumption: < 1.2 W
- Max. control voltage: 24 VDC
- Max. control current: 4 A per channel (10 A total)
- PWM frequency: 22 kHz
- Voltmeter: 0-24 V
- Voltmeter accuracy: ± 5%
- Ammeter: 0-10 A
- Ammeter accuracy: ± 10%
- Power and energy meters: Power measurement
- No load threshold: 0.5 VA per channel
- Internal-temperature sensor: Yes
- WiFi Protocol: 802.11 b/g/n
- RF band: 2401 - 2495 ?Hz
- Max. RF power: < 20 dBm
- Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
- Bluetooth Protocol: 4.2
- RF band: 2400 - 2483.5 MHz
- Max. RF power: < 4 dBm
- Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
- CPU: ESP-Shelly C38F
- Clock frequency: 160 Mhz
- RAM: 400 KB
- Flash: 4 MB
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- Scripting: Yes
- MQTT: Yes
- Scripting: Yes
