Acerca del producto

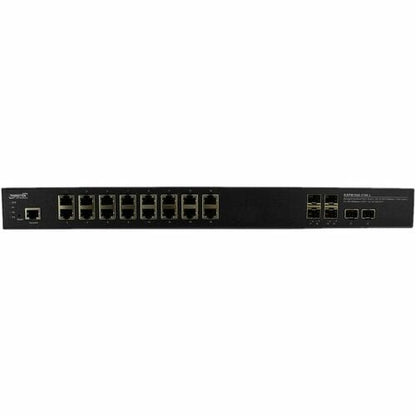

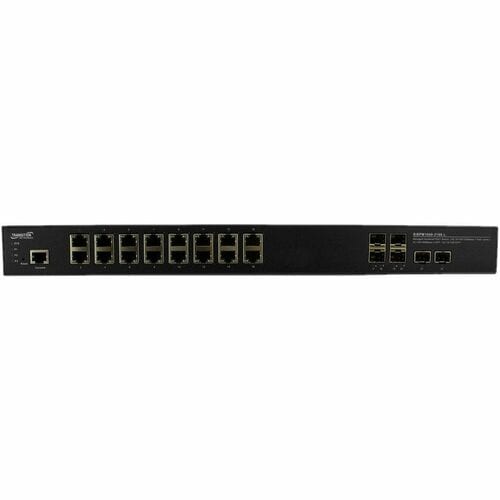

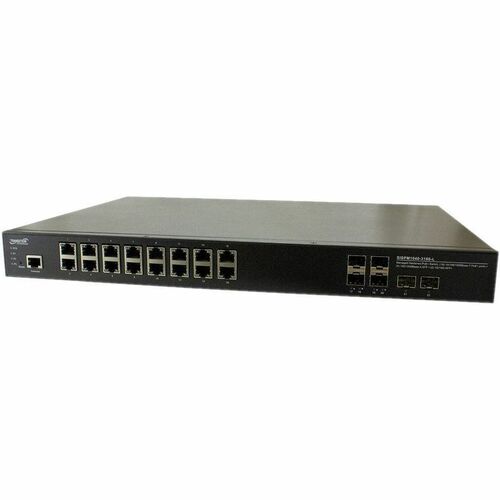

This switch is a next generation rack mountable hardened switch with 80Gbps switching capacity. It provides (16) 10/100/1000 PoE+ ports, (4) 100/1000 dual speeds SFP ports and has (2) additional 1G/10G SFP+ slots.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Useful for the multi-tenant unit and multi-business unit with Layer 4 traffic classifiers and bandwidth limit
- Managed switch provides a reliable foundation for your network
- Management capability provides control over setup and configuration of your network
- PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
- Quickly and easily set up a wired network with 16 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 16 ports
Especificaciones técnicas
| Miscellaneous | |
| Application/Usage | Network |
| Server | |
| Technical Information | |
| Features | IP30 |
| Fanless | |
| DHCP Snooping | |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| 2 x 10 Gigabit Ethernet Expansion Slot | |
| 16 x Gigabit Ethernet PoE+ | |
| Management & Protocols | |
| Manageable | Yes |
| Data Link Protocols | TFTP |
| HTTP | |
| HTTPs | |
| I/O Expansions | |
| Expansion Slot Type | SFP |
| SFP+ | |
| Number of SFP Slots | 4 |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 6 |
| Physical Characteristics | |
| Weight (Approximate) | 10.58 lb (4800 g) |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.40" (442 mm) |
| Depth | 11.81" (300 mm) |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | SISPM1040-3166-L |
| Manufacturer Website Address | http://www.lantronix.com |
| Manufacturer | Lantronix, Inc |
| Product Name | Managed Hardened Gigabit Ethernet PoE+ Rack Mountable Switch |
| Brand Name | Lantronix |
| Media & Performance | |
| Network Technology | 10GBase-X |
| 10/100/1000Base-T | |
| 1000Base-X | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber | |
| Power Description | |
| Input Voltage | 120 V AC |
| 57 V DC | |
| 52 V DC | |
| 230 V AC | |
| Power Source | AC/DC |
| PoE+ | |
| Power Supply | |
| Power Consumption | 36 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 250 W |
| Network & Communication | |
| Layer Supported | 4 |
| Networking Standards | IEEE 802.3ae |
| IEEE 802.3af | |
| IEEE 802.3ah | |
| IEEE 802.3at | |
| IEEE 802.3az | |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.1ab | |
| IEEE 802.1ad | |
| IEEE 802.1ag | |
| IEEE 802.1D | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.1w | |
| IEEE 802.3 | |
| IEEE 802.3ad |
